Section 03 ENGINES
Subsection 05 (TOP END)

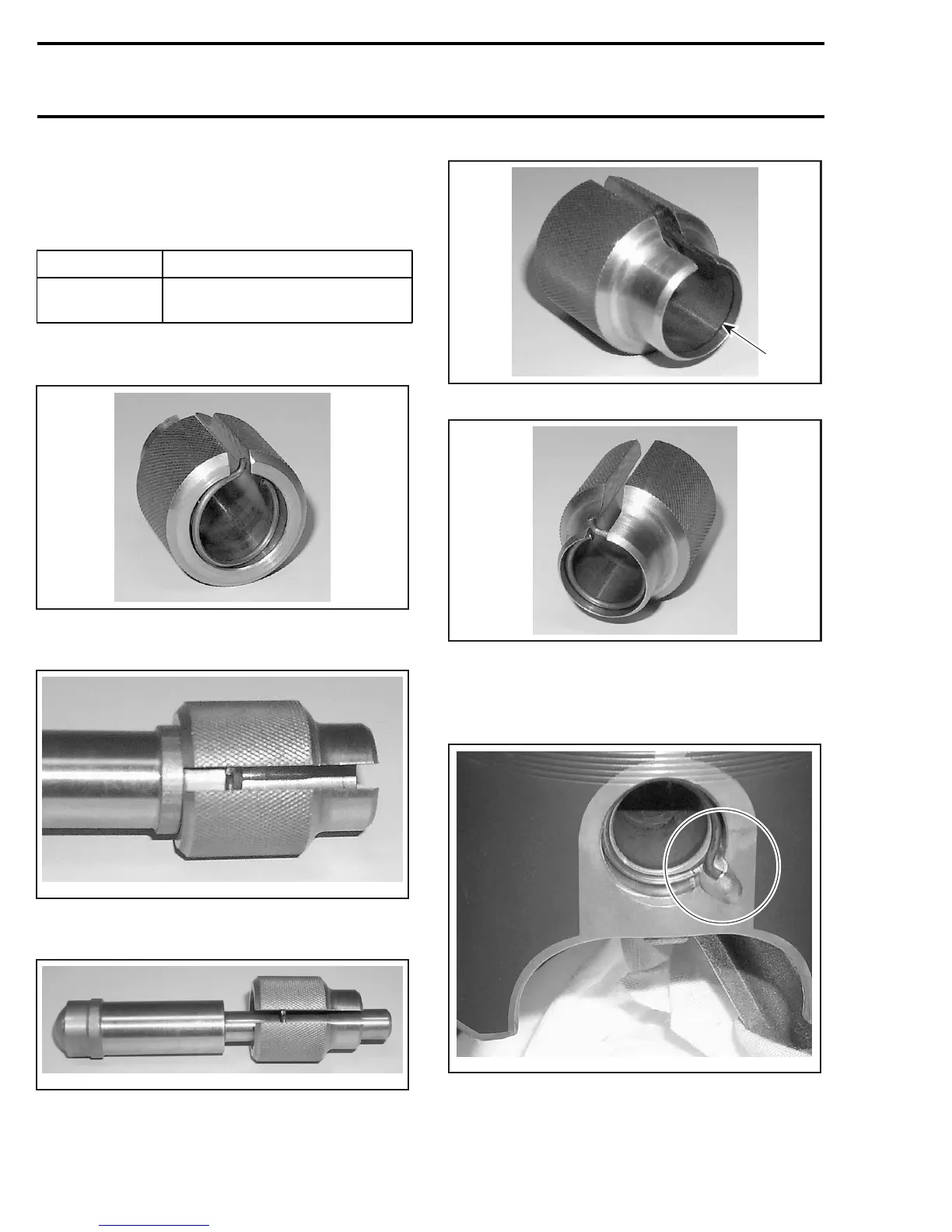

To minimize the effect of acceleration forces on
circlip, install each circlip so the circlip break is
at 6 o’clock as illustrated. Use appropriate piston
circlip installer to install mono-hook circlips no. 25.
ENGINE TOOL
All
piston circlip installer
(P/N 529 035 686)
Insert circlip into support so that, when installed
in piston groove, the tab faces upward.
A32B0AA
With round end of pusher, position circlip perpen-
dicularly to the support axis.
A32B0BA
With the other end of the pusher, push circlip into
the support groove.
A32B0CA
A32B0DA
1
1. Groove
A32B0EA
CIRCLIP READY TO BE INSTALLED ON PISTON
Using a plastic hammer, tap pusher to put circlip
in place. Make sure to install new circlips with tab
toward top as per following photo.
A32C4BA
TAB TOWARD TOP
106
mmr2005-072
