Section 03 ENGINES
Subsection 05 (TOP END)
All Engines Except 793 HO

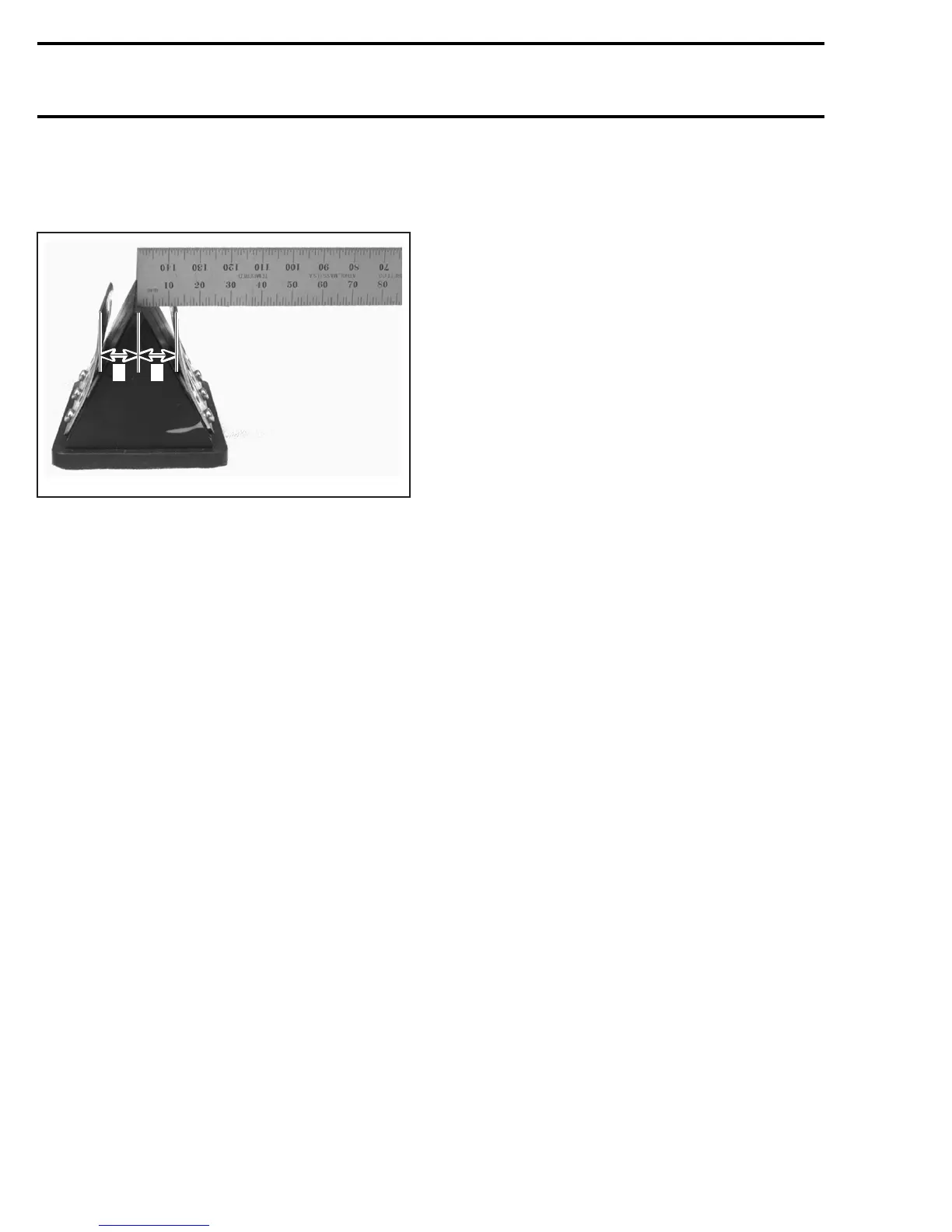

Check distance from blade stopper no. 29 outer
edge and distance from center of reed valve block.
A06C36A
A A
TYPICAL
A. 18.7 - 0, + 0.75 mm (.736 - 0, + .030 in)
Bent blade stopper as required to obtain the prop-
er distance.
Blade stoppers may slightly interfere with cylinder
during installation. Adjusted distance will be re-
duced automatically upon installation.
108 mmr2005-072
