Section 03 ENGINES
Subsection 07 (ENGINE MEASUREMENT)
F00D0EA
2 1

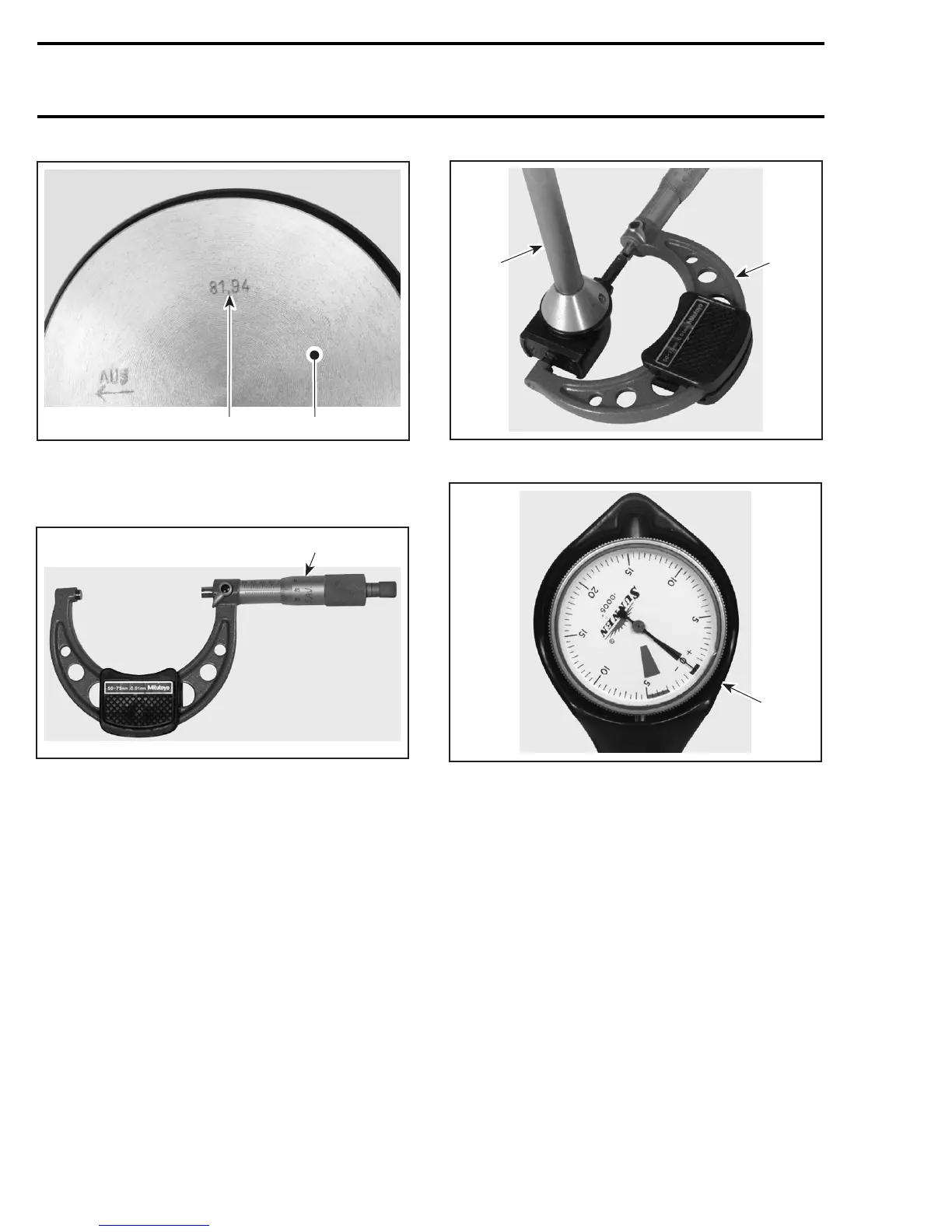

1. Piston dome
2. Piston measurement
Adjust and lock a micrometer to the specified val-
ue on the piston dome.
F00B08A
1
1. Micrometer set to the piston dimension
With the micrometer set to the piston dimension,
adjust a cylinder bore gauge to the micrometer
dimension and set the indicator to 0.
F00B09A
1
2
1. Use the micrometer to set the cylinder bore gauge
2. Dial bore gauge
F00B0AA
1
1. Indicator set to 0 (zero)
IMPORTANT: Always remove cylinders from
crankcase before measuring.
Position the dial bore gauge at 16 mm (5/8 in) be-
low cylinder top edge.
132 mmr2005-103
