Section 03 ENGINES
Subsection 08 (COOLING SYSTEM)
1
2
3
4

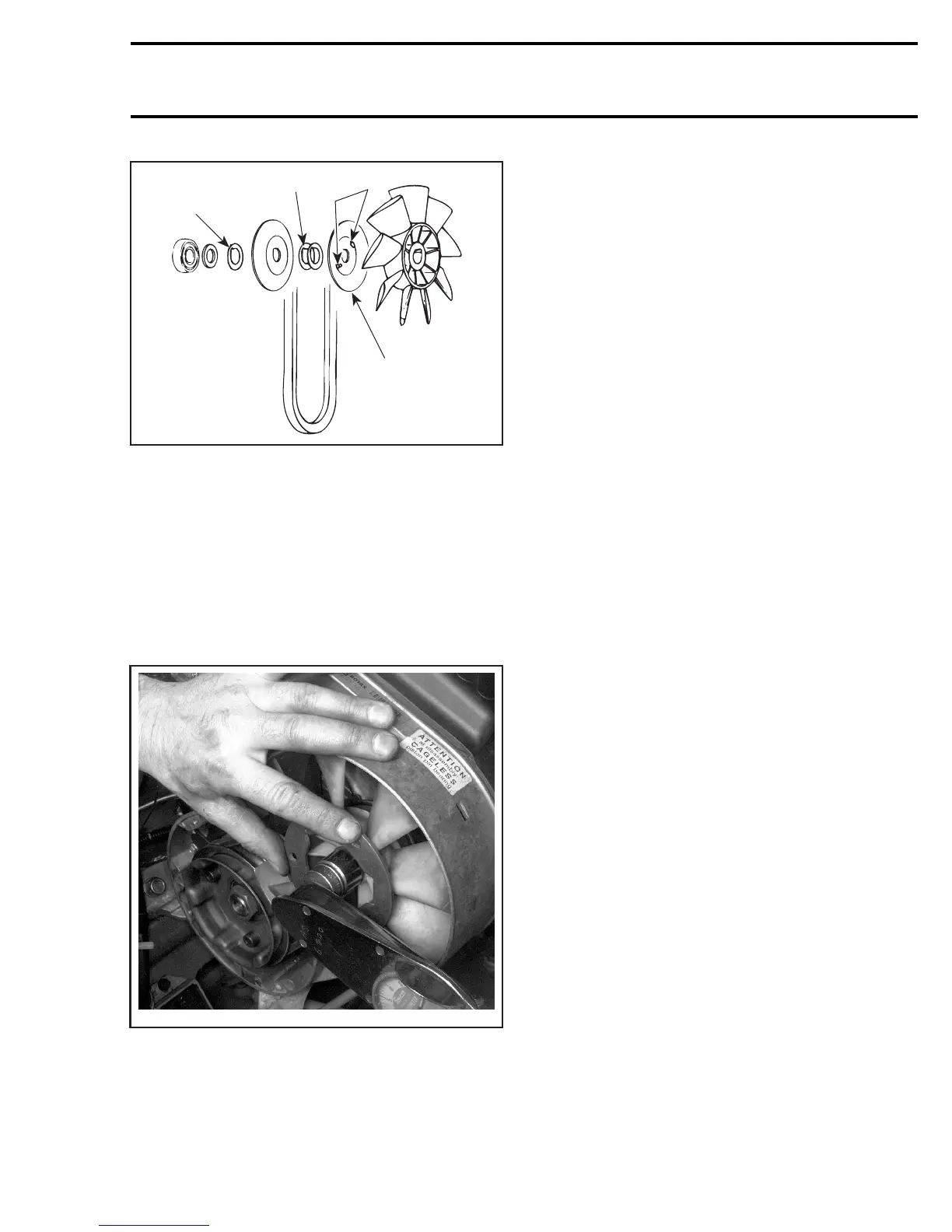

A09C0VA
TYPICAL
1. Unused shim(s) here
2. Adjust here
3. Positioning noses
4. Some engines only
Select pulley halves so that the one with 2 posi-
tioning noses will be on fan side. Ensure to insert
these noses into fan notches.
Once fan belt is properly adjusted, torque fan nut
to 48 N•m(35lbf•ft) using holder wrench, as
shown in the following photo.
A03C24A
TYPICAL — TORQUE FAN NUT USING HOLDER WRENCH
Finalizing Reassembly
Reinstall rewind starter and oil pump with gear
case. Refer to REWIND STARTER.
Install the air inlet duct no. 3 with screws no. 1
and no. 2.
Reinstall tuned pipe and muffler. Refer to EX-
HAUST SYSTEM.
mmr2005-074 141
