Section04FUELSYSTEM
Subsection 02 (CARBURETORS, THROTTLE AND CHOKE CABLES)
1
A32C5OA
2

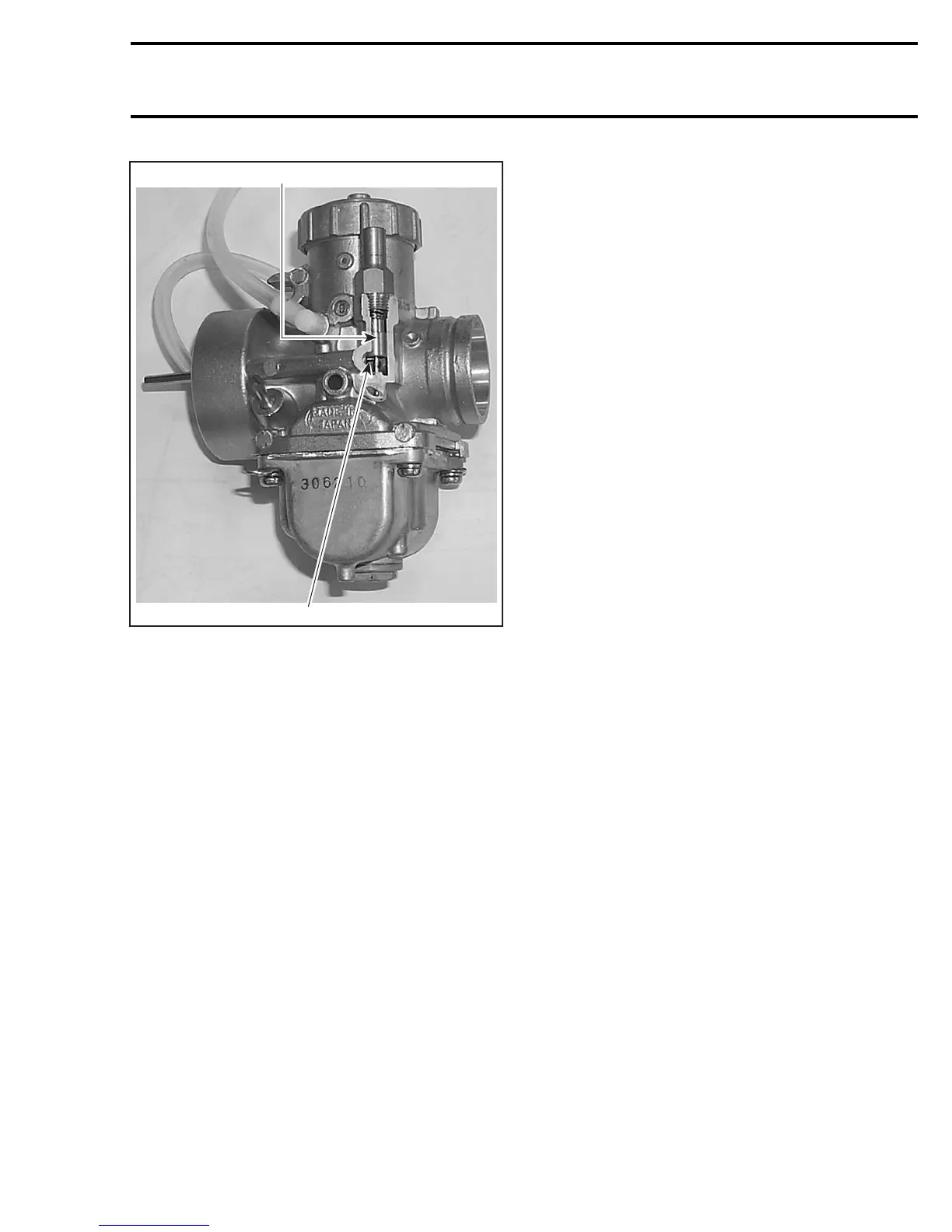

CUT-AWAY (ENGINE SIDE SHOWN)
1. Choke plunger
2. Tool properly seated under choke plunger
If tool tip does not seat under choke plunger
no. 12, adjust as follows:
Make sure choke lever is at half open position.
Turn choke cable adjustment nut by hand until tool
properly seats under choke plunger.
NOTE: A light pressure should be needed to posi-
tion tool under plunger.
Tighten choke cable lock nut and reinstall protector
cap.
Set choke lever to close and open positions and
ensure that tool properly seats under plunger only
when lever is set to half open position.
Set choke lever to close position and, by pulling
and pushing choke lever, make sure there is no
tension on cable (free play).
mmr2005-077 183
