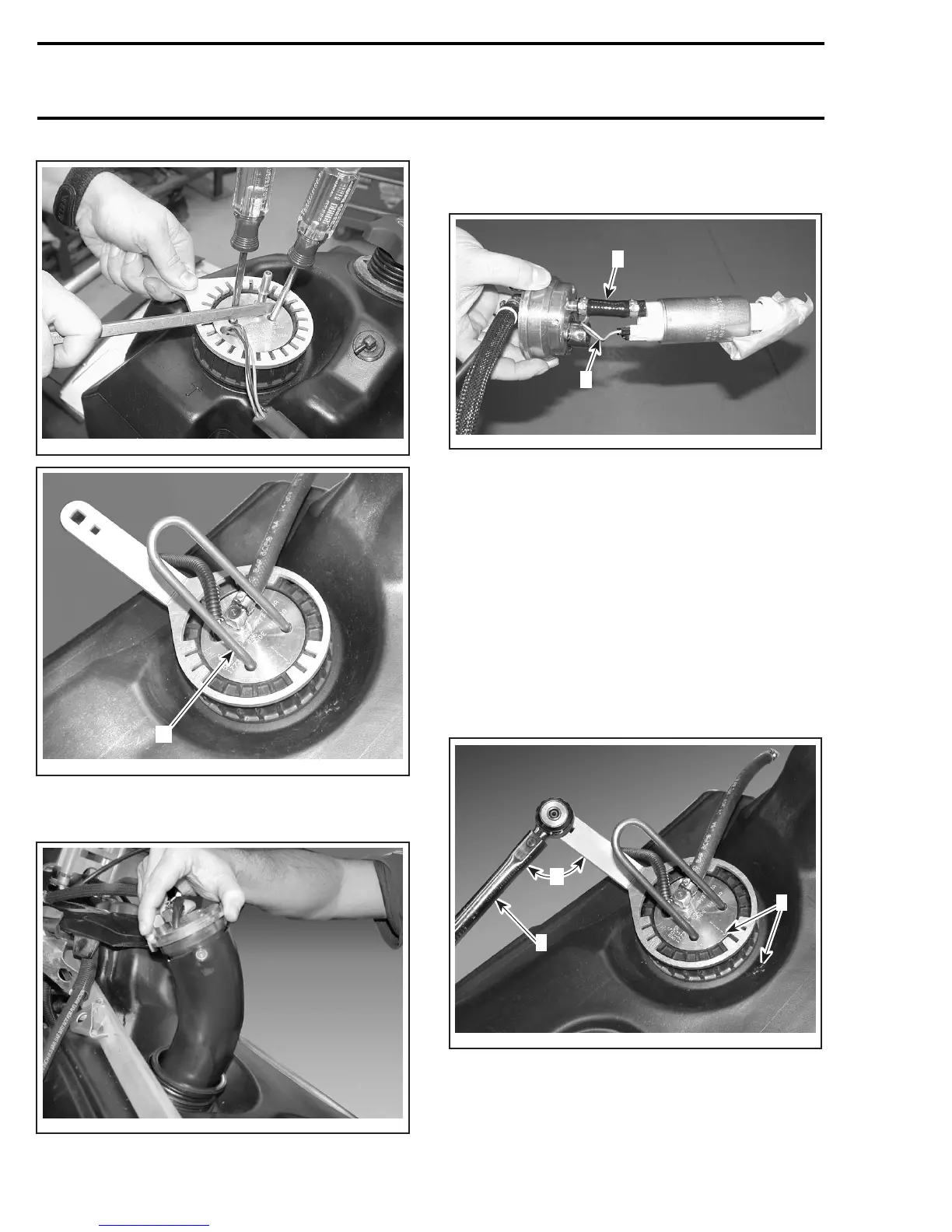

Section 06 ENGINE MANAGEMENT (SDI)
Subsection 03 (COMPONENT INSPECTION, REPLACEMENT AND ADJUSTMENT)
A32I11A
A32I19A
1
1. Bent rod
Remove fuel pump assembly.
A33C5TA
Disconnect pump electric connector.
Disconnect hose from pump.
A33C5PB
2
1
1. Electrical connect
2. Pump hose
Installation
For installation, reverse the removal process but
pay attention to the following.
Install a new gasket.
Align the arrow on fuel pump assembly with the
one on fuel tank. Keep arrows aligned when tight-
ening fuel pump assembly.
Install a torque wrench perpendicularly (90°)tofu-
el pump nut wrench (P/N 529 035 899). Torque
fuel pump nut to 27 - 30 N•m (20 - 22 lbf•ft).
A32I1BA
2
A
1
1. Arrows
2. Torque wrench
A. 90°
260 mmr2005-081
