Section 10 STEERING/FRONT SUSPENSION
Subsection 02 (FRONT SUSPENSION)
A33F3MA
Summit X
A33F0CB
MX Z 380F (Europe)
MX Z Renegade (Europe)

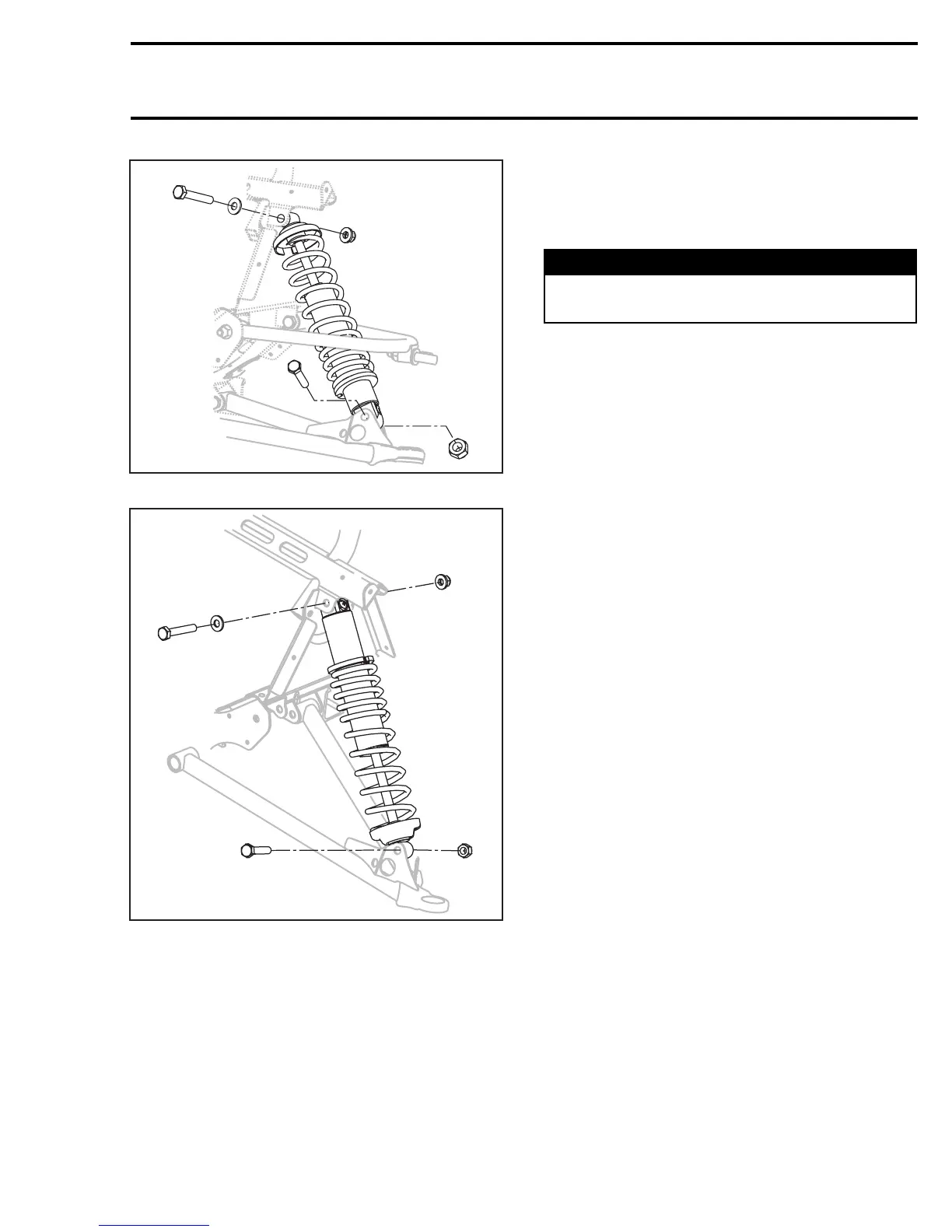

Readjust spring preload.
Ski
Apply suspension synthetic grease (P/N 293 550
033) between bushing no. 28 and spacer no. 27
and also on inner tube of ski leg.
Summit Only
Install bushing no. 29 and spacer no. 30 inward
on each ski leg for the wide ski stance. Install
outward for narrow ski stance.
WARNING
Install skis with proper side facing inward.
Refer to warning on ski.
Adjustment
All Models
Proceed with ski alignment. Refer to STEERING
SYSTEM.
