SMART KTF 2000 – KTF/RW Operation
3B-30 - SMART KTF 2000

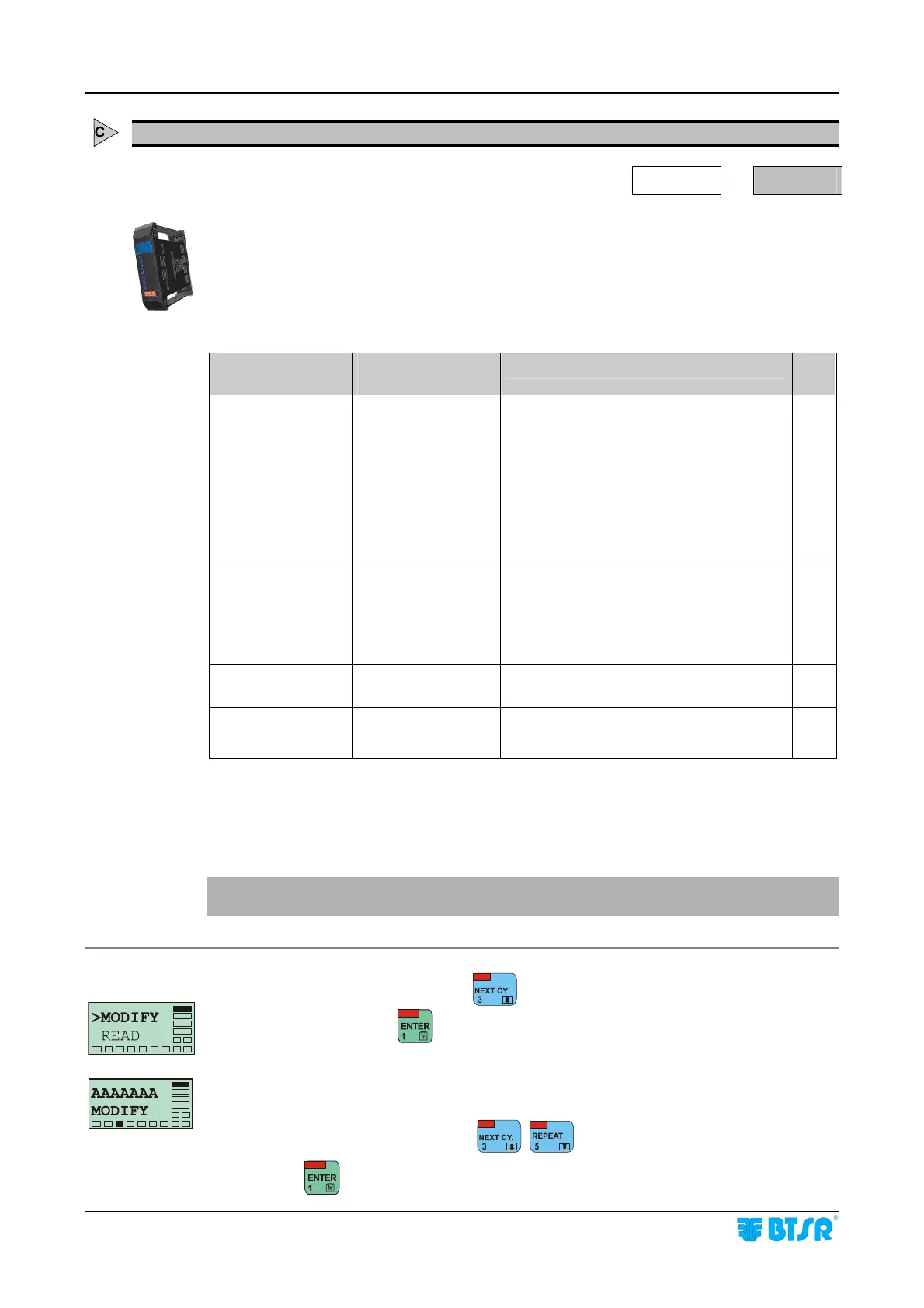

MODIFY – Modifying Article Parameters
SETUP



MODIFY
This function allows modifying one or more parameters of an existing article and saving
the changes without changing the article name.
The parameters programmed with this function are the same parameters that you can
directly program on SM-DIN/RW modules within the P1, P2, P3 and P4 programming
levels, except the TARGET and Automatic graduation parameters, that can be
programming only through this function:
SMART
Parameter
SM/DIN/RW
Parameter
MEANING KTF
LEV.
1.1) MAIN TENSION
1.2) ERR TENSION
1.3) TIME ALARM
1.4) TENS INC-DEC
1.5) METR INC-DEC
1.6) METR TARGET
P1.1
P1.2
P1.3
P1.4
P1.5
P1.6
Control tension
Tolerance beyond which an Error occurs
Time period for which the tension may run
out of tolerance
Tension of INC/DEC graduation.
Meters for Automatic Graduation.
Target Setting.
P1
2.1) EXIT TENSION
2.2) RAMP UP
2.3) RAMP DOWN
2.4) K REACT
P2.1
P2.2
P2.3
P2.4
Device tension with machine standstill.
Motor acceleration ramp.
Motor deceleration ramp.
Reactivity Constant.
P2
3.2) MODE
P3.2 Operating modes of INC/DEC commands
and Alarm Reset
P3
4.1) MOT DIRECT
4.4) MOT TYPE
P4.1
P4.1
Motor rotation Direction.
Motor type
P4
The modified article with the associated control parameters will be saved to the SMART
KTF 2000 Data Base.
Using the WORK function, it will then be possible to program the SM-DIN/RW devices
connected.
 For a detailed explanation of each individual parameter and related examples,
please refer to KTF/RW Manual.
From the SETUP menu, press
until the >MODIFY menu option is selected.
At this point, press
to access the function..
This screen allows you to select the article to be modified from the SMART KTF
2000 database.
Select the desired article using
, .
Press
to start the article modification procedure
