5.7 Power Module
Each MX chassis accommodates three power modules. These power modules are located in
the center of the chassis and can be removed from the front after removing the front cover. Each
power modules is fully self-contained and forms a complete AC to AC or AC to DC converter.
The three power modules are identical and can be interchanged if needed although this is not
recommended under normal use.
The power module is depicted in Figure 5-4.

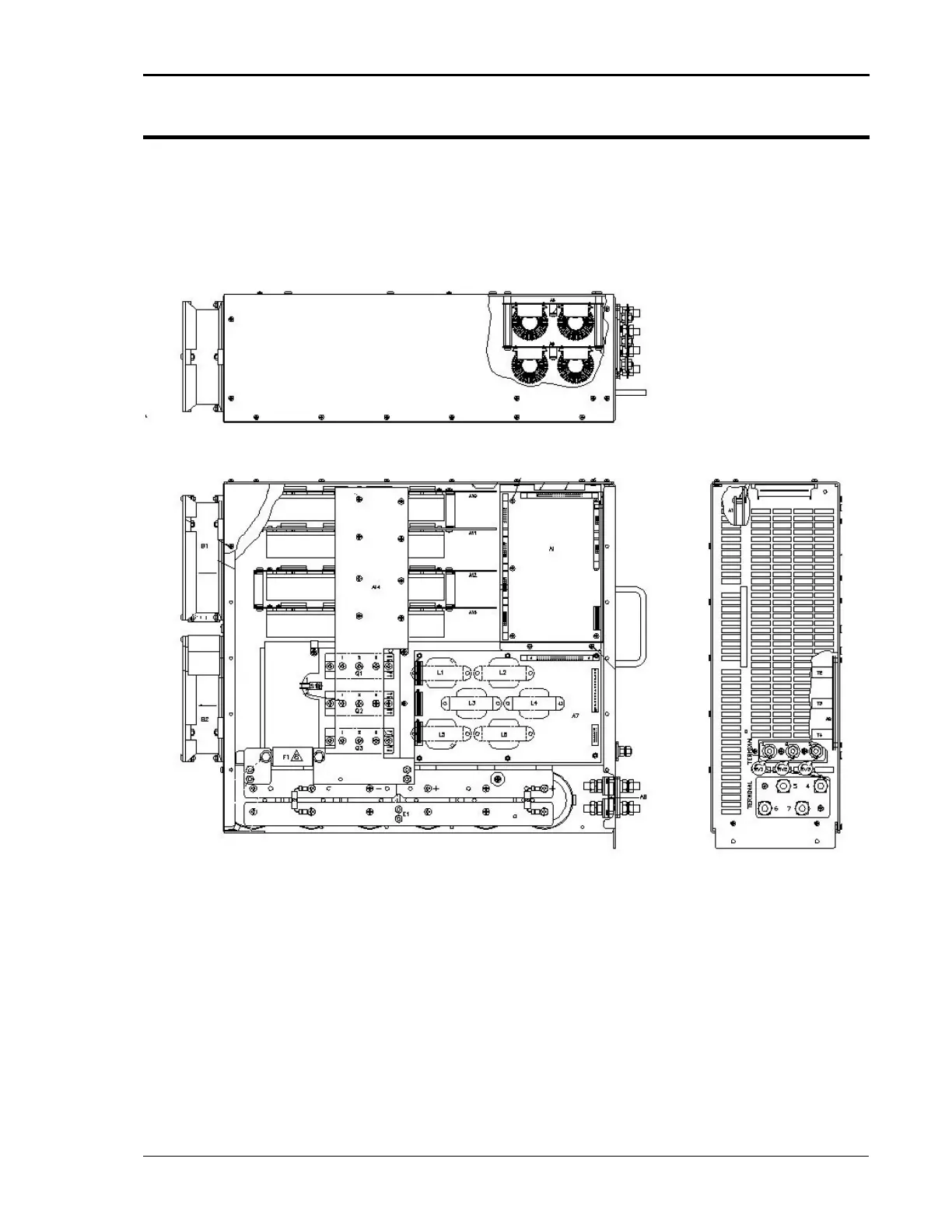

Figure 5-4: Power Module Layout
