User Manual – Rev AJ California Instruments
46 MX Series
3.6.3 MX30-3, MX45-3, MX30-3Pi and MX45-3Pi 3ø mode Output Wiring Diagram
Figure 3-8 shows the required output connecti
MX30-3Pi and MX45-3Pi in three-phase mode output c
section 3.6.2 for the MX30-3Pi or
Always disconnect all input power from the MX
provides access to the input and output terminal
the MX to the front in the provided cable guides.
ons for a MX30-3, MX45-3 three phase or an
onfiguration (rear-view perspective). See
MX45-3Pi in single-phase mode.
before removing the front panel cover that
connections. Route the wires from the back of

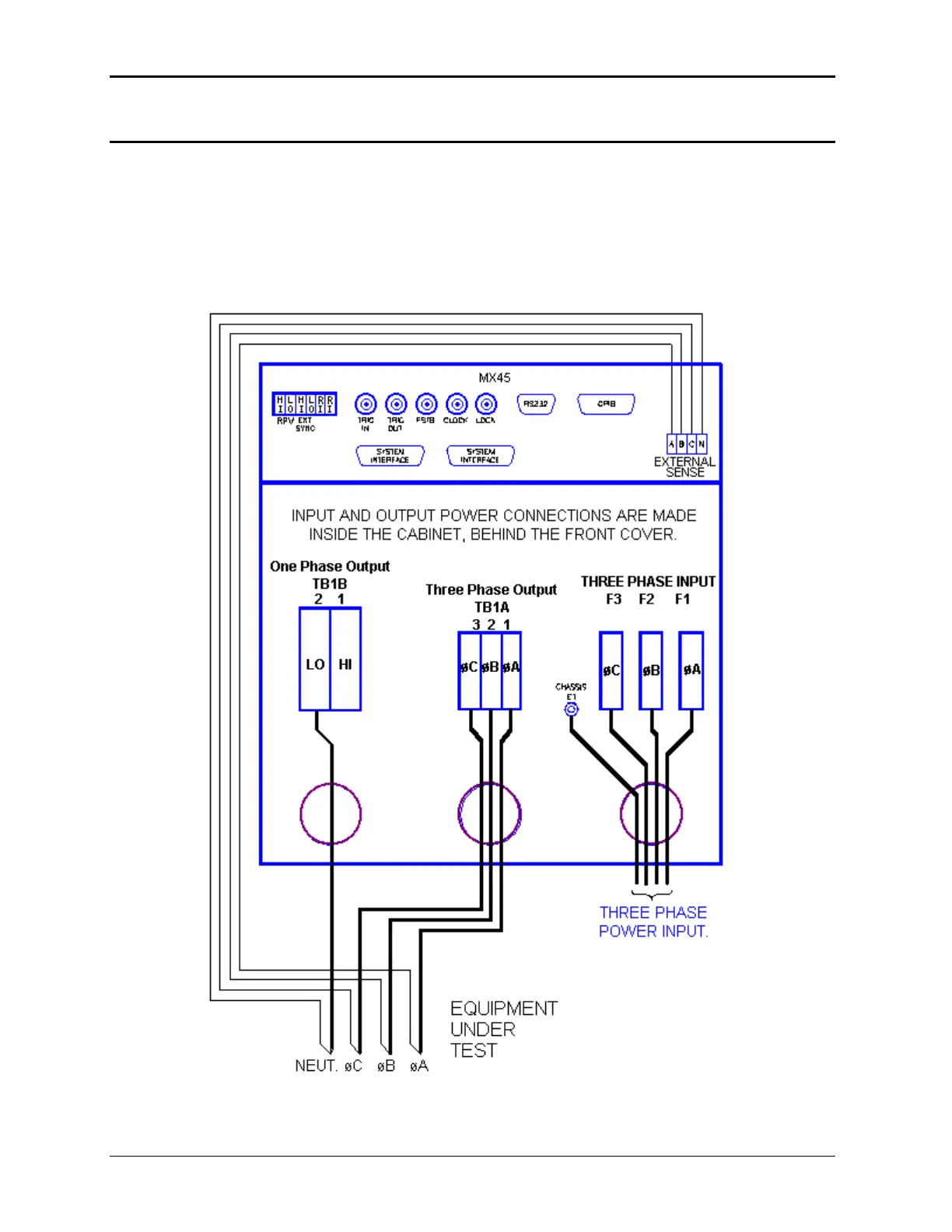

Figure 3-8: MX30-3 / MX45-3 Output Wiring (Rear view)
