6.2 Removing the Tray Drive Unit
1) Perform steps 1) through 6) to detach
the shift tray driver PCB.
2) Remove the two screws [15], and dis-
connect the connector [16]; then, detach
the tray drive unit [17].
Points to Note When Mounting
Be sure to adjust the position of
the limit sensor (front, rear; see
5.1 “Adjusting the Limit sensor
Position.”)

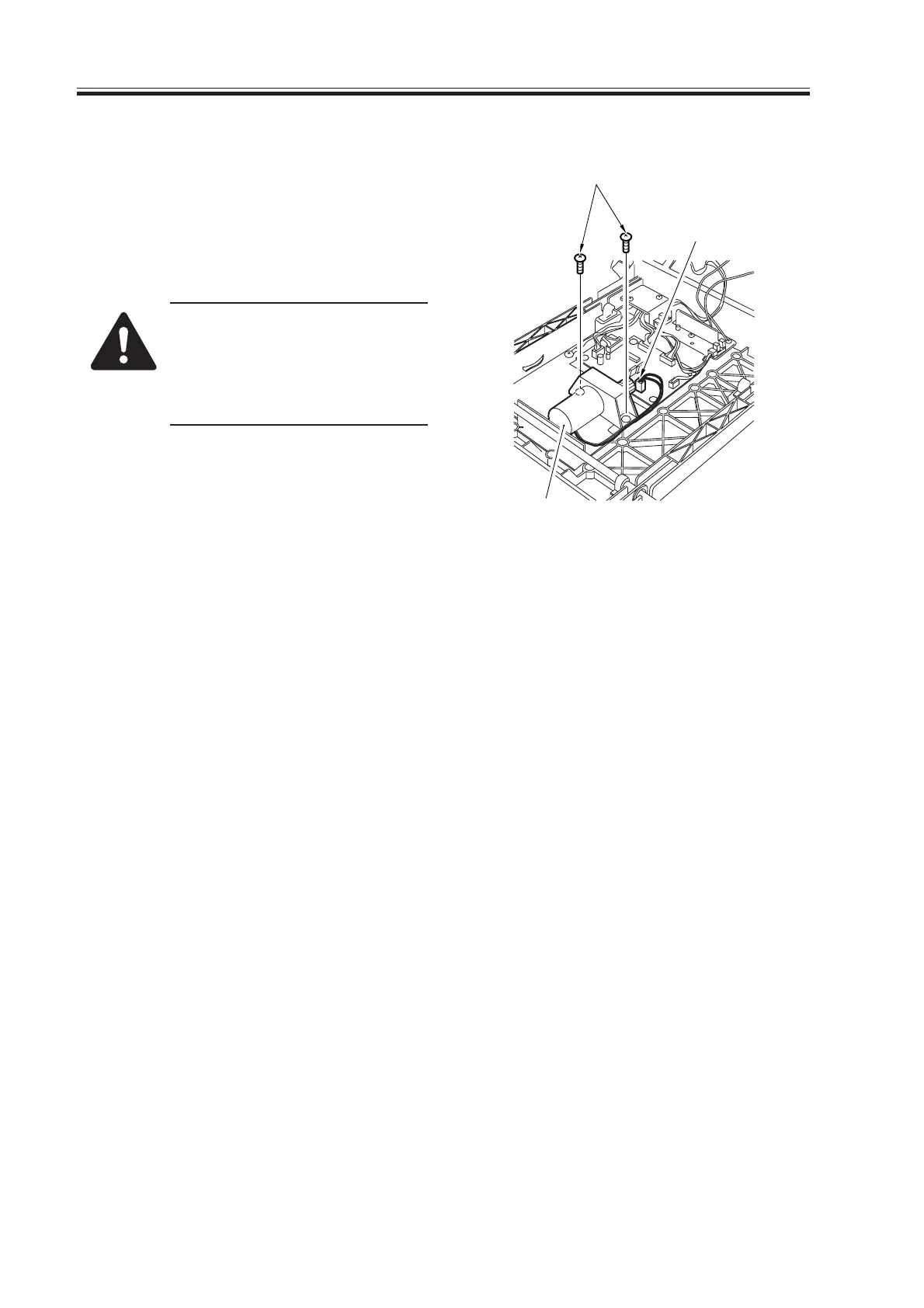

F09-602-01
[15]
[16]
[17]
