Canon J1 - Saddle Stitcher Unit

1
1
1-4
1-4
Product Outline > Specications > Saddle Stitcher Unit
Product Outline > Specications > Saddle Stitcher Unit

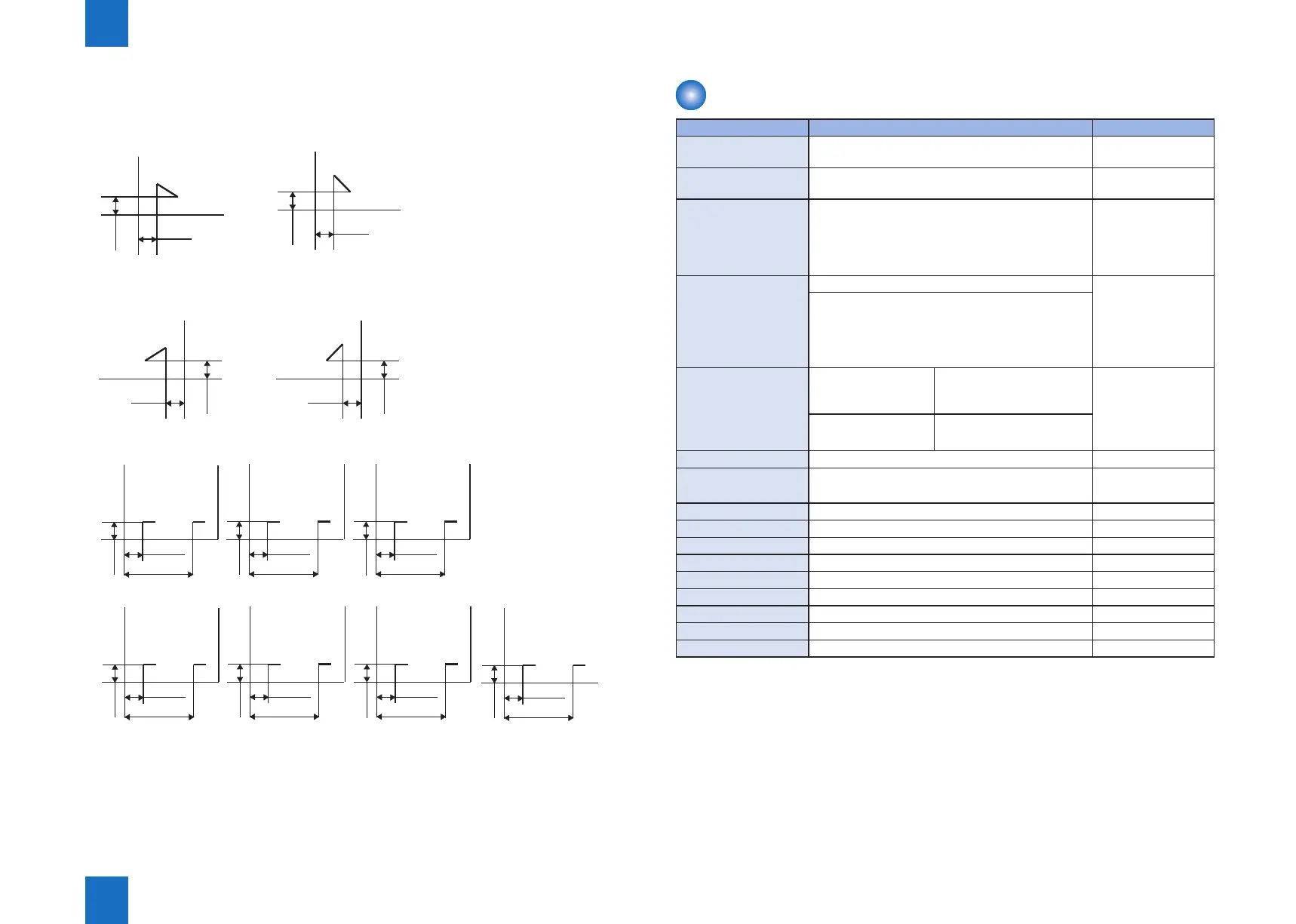

Stapling Positions
Front 1-point stapling (30deg.)
A4R, LGL and LTRR
5 -/+2 mm
5 -/+2 mm
2-point stapling
83 -/+4 mm
203 -/+4 mm
A3 and A4
63 -/+4 mm
183 -/+4 mm
B4 and B5
279mm×432mm
（11×17）
and LTR
74 -/+4 mm
194 -/+4 mm
39.5 -/+4 mm
159.5 -/+4 mm
A4R
69.5 -/+4 mm
189.5 -/+4 mm
8K and 16K
68.5 -/+4 mm
188.5 -/+4 mm
EXEC
LTRR and LGL
42.5 -/+4 mm
162.5 -/+4 mm
Front 1-point stapling (45deg.)
A3,A4,B4,B5,
279mm×432mm（11×17）,LTR,EXEC,8K,16K
Rear 1-point stapling (30deg.)
A4R, LGL and LTRR
5 -/+2 mm
5 -/+2 mm
Rear 1-point stapling (45deg.)
A3,A4,B4,B5,
279mm×432mm（11×17）,LTR,EXEC,8K,16K
5 -/+2 mm
5 -/+2 mm
5 -/+2 mm
5 -/+2 mm
5 -/+2 mm 5 -/+2 mm 5 -/+2 mm
5 -/+2 mm 5 -/+2 mm
5 -/+2 mm 5 -/+2 mm
F-1-1
Saddle Stitcher Unit
Item Specications Remarks
Stapling method
Vertically separated, round-clinch stapling at two
positions in the middle
Paper size
A3, B4, A4R, 279mm x 432mm (11 x 17), LGL,
LTRR/ 305mm x 457mm (12 x 18)
Capacity
52 to 81.4g/m2: 1 to 16 sheets
81.4 to 105g/m2: 1 to 10 sheets
105 to 150g/m2: 1 to 5 sheets
150 to 220g/m2: 1 to 4 sheets
209 to 220g/m2: 1 to 3 sheets
Including 1 cover
page.
Paper weight
Plain paper: 52g/m2 to 220g/m2 Special paper,
postcards,
transparencies, or
elongation size can
not be
handled
Cover material: 52g/m2 to 256g/m2
Stacking capacity
52 to 81.4g/m2 1 to 5 sheets: 25 copies
6 to 10 sheets: 15 copies
11 to 16 sheets: 10 copies
Cover mode; up to 10
copies
81.4 to 105g/m2 1 to 5 sheets: 25 copies
6 to 10 sheets: 15 copies
Stapling position
2 points (center distribution; xed interval)
Staple
accommodation
2000 staples
Staple supply
Special cartridge
Staples
Special staple (Staple-D3)
Staple detection
Provided
Manual stapling
Not provided
Folding method
Roller contact
Folding mode
Double folding
Folding position
Paper center
Position adjustment
Provided
Power supply
From nisher unit (24VDC)
• Stacking capability is not guaranteed for mixed size stacking.
T-1-2
