Parts Replacement and Cleaning Procedure > External Covers > Removing the Upper Cover
Parts Replacement and Cleaning Procedure > External Covers > Removing the Upper Cover

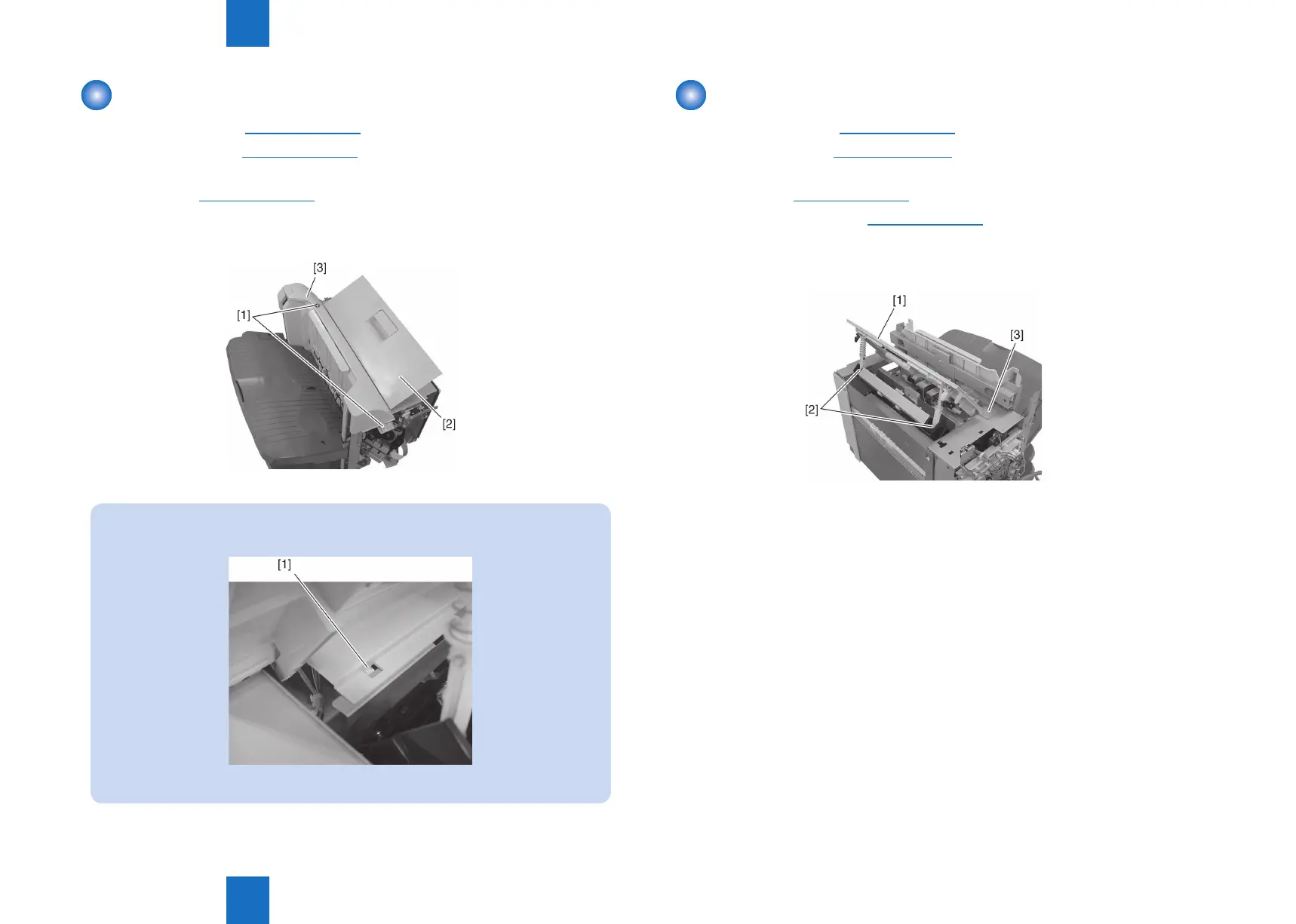

Removing the Left Upper Cover
1) Remove the front cover.(Refer to page 4-14)
2) Remove the rear cover.(Refer to page 4-14)
3) Remove the front inside upper cover. (In the case of Staple Finisher, this procedure is
unnecessary.)(Refer to page 4-17)
4) Remove two screws [1].
5) With the upper cover [2] open, remove the left upper cover [3] by tilting to the right.
NOTE:
When replacing, hook the two claws [1] of the left upper cover to the steel plate.
F-4-21
F-4-20
Removing the Upper Cover
1) Remove the front cover.(Refer to page 4-14)
2) Remove the rear cover.(Refer to page 4-14)
3) Remove the front inside upper cover. (In the case of Staple Finisher, this procedure is
unnecessary.)(Refer to page 4-17)
4) Remove the left upper cover.(Refer to page 4-15)
5) Open the upper cover [1] and unhook the two hooks [2].
6) Remove screw [3] and remove the upper cover [1].
F-4-22
