Swing Height Detection Control
1. Overview
Normally, the color-printed paper is ejected to the process tray with it rubbing against the
paper loaded in the process tray, causing scratches on the printed image.
To prevent this, the swing unit height is controlled.
2. Description of Control
When paper is ejected to the processing tray, the height of the swing unit [3] is detected with
the swing height detection sensor [1] and swing height detection sensor ag [2] in order to
stop the swing unit [3] at the appropriate position, thus reducing scratches on color prints.
[1]
[2]
[3]

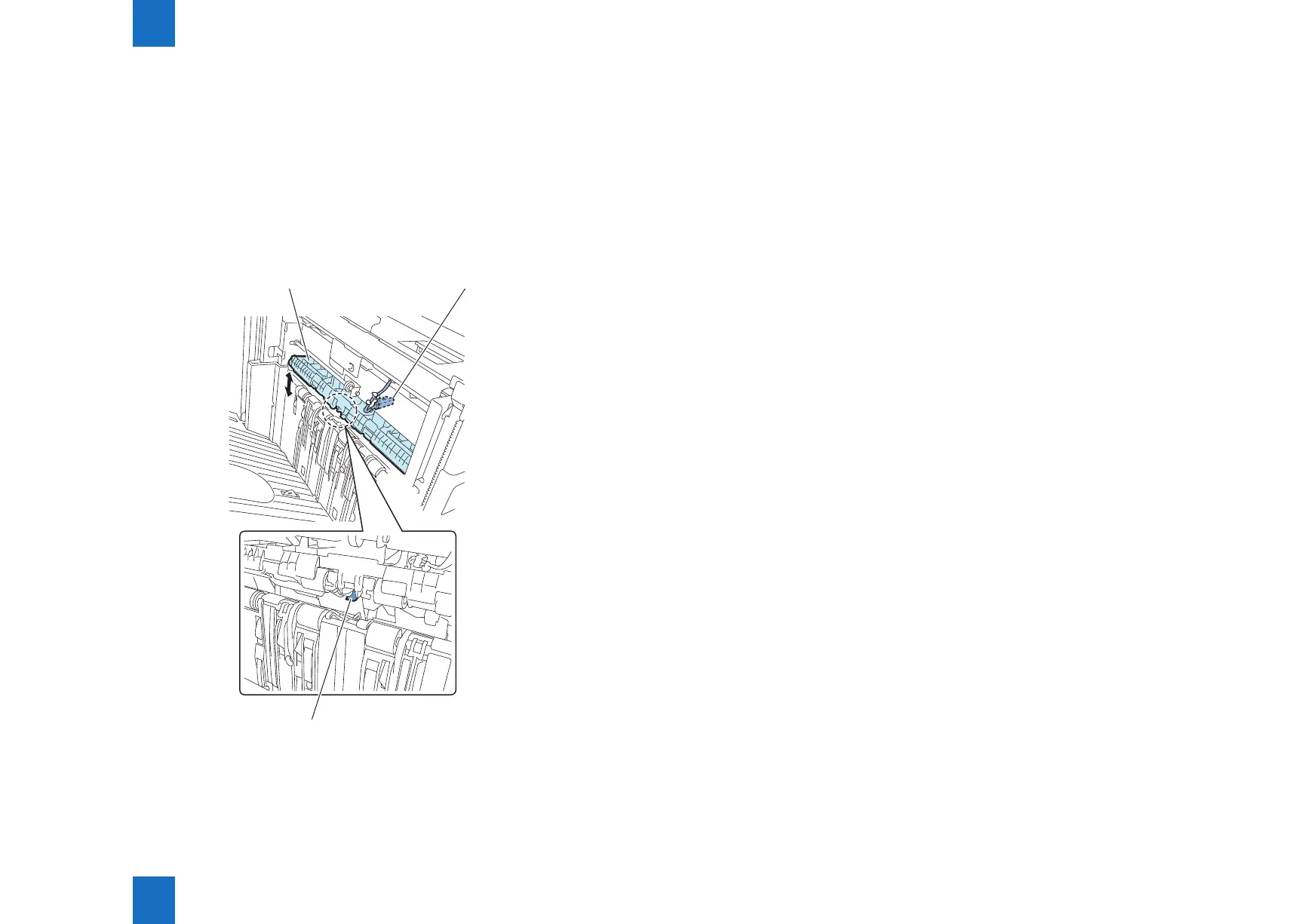

F-2-31
