4-6

Parts Replacement and Cleaning Procedure > List of Parts > List of Sensors > Staple Finisher Unit

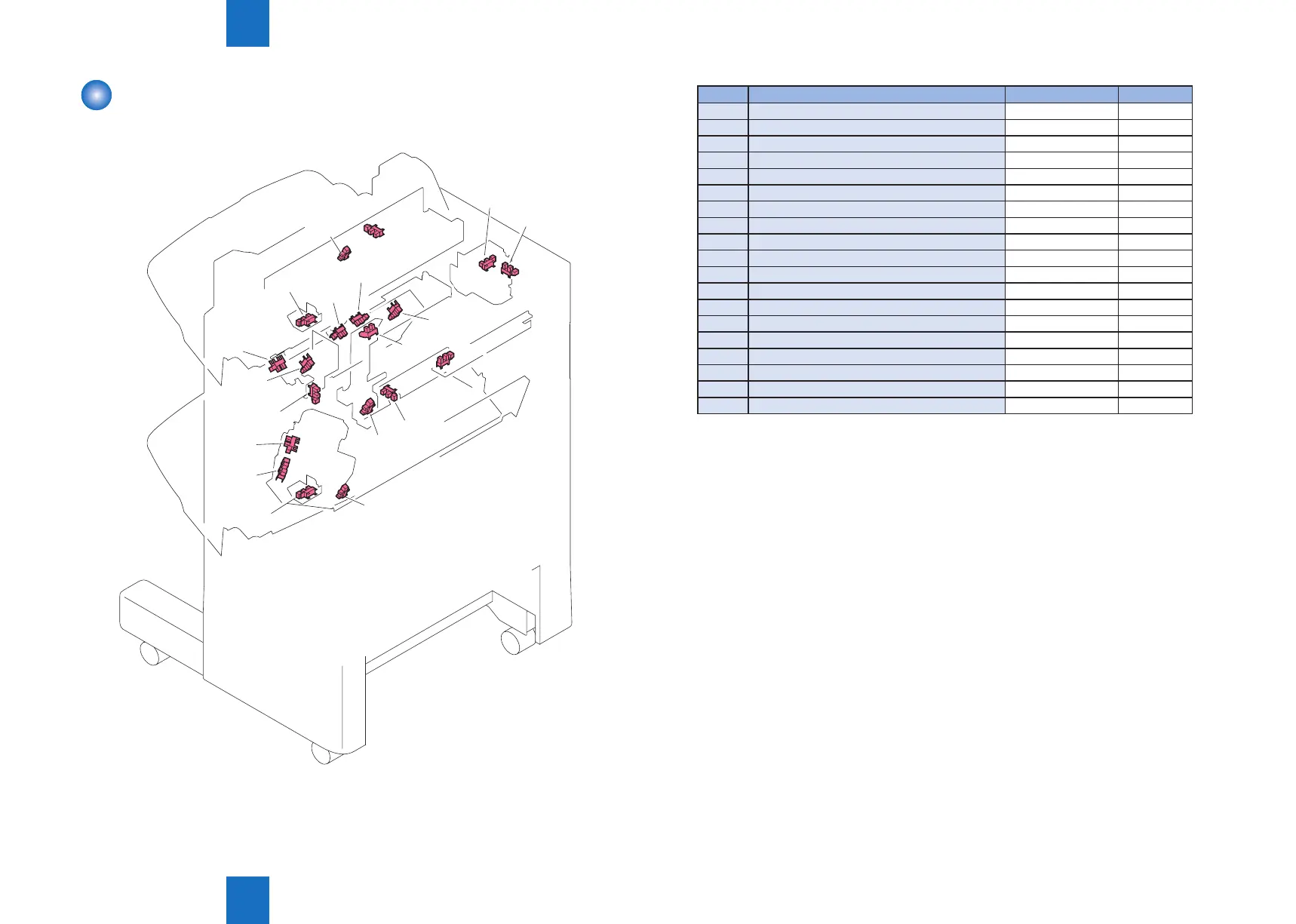

List of Sensors

■

Staple Finisher Unit

PI105

PI103

PI109

PI106

PI104

PI108

PI117

PI101

PI115

PI113

PI111

PI114

PI112

PI107

PI110

PI116

PI102

PI120

PI123

F-4-6

No. Name Part No Refer to

PI101 Upper cover sensor - -

PI102 Front cover sensor - -

PI103 Inlet sensor - -

PI104 Feed path sensor - -

PI105 Swing guide home position sensor - -

PI106 Front aligning plate home position sensor - -

PI107 Rear aligning plate home position sensor - -

PI108 Processing Tray sensor - -

PI109 Rear end assist guide home position sensor - -

PI110 Stapler shift home position sensor - -

PI111 Tray 1 paper sensor - -

PI112 Tray 2 paper sensor - -

PI113 Shutter home position sensor - -

PI114 Tray 1 paper surface sensor - -

PI115 Tray 2 paper surface sensor 1 - -

PI116 Stapler alignment interference sensor - -

PI117 Gear change home position sensor - -

PI120 Tray 2 paper surface sensor 2 - -

PI123 Swing height sensor - -

T-4-6
