Saddle Stitcher Unit
Basic Operation (Saddle Stitcher Unit)
■

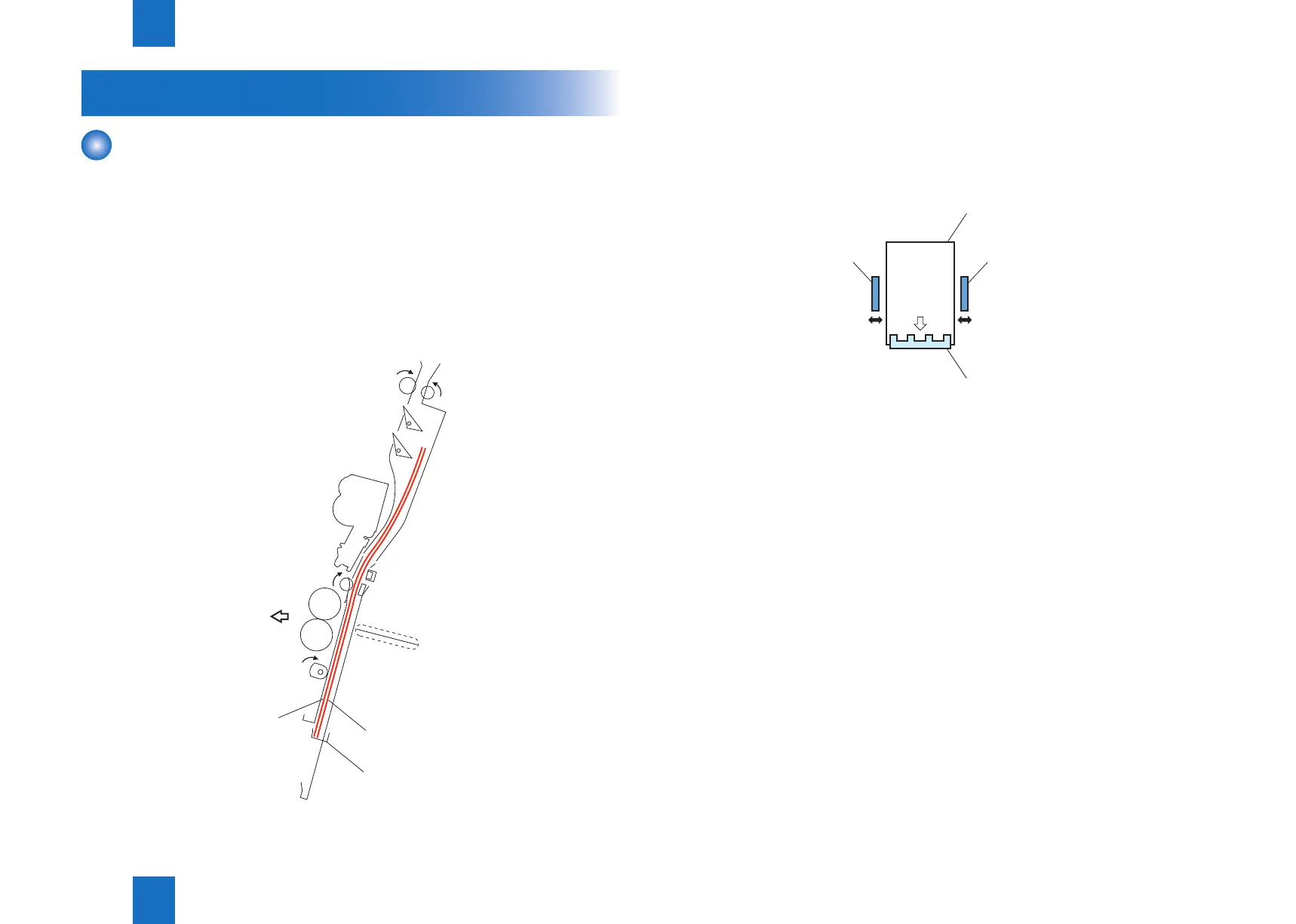

Receiving Sheets
The stitcher unit receives sheets from the nisher unit and outputs them inside the vertical
path in vertical orientation.
The vertical path, while sheets are being output, is congured by two paper deecting plates.
The position of the sheets being output is set by the paper positioning plate so that the center
of the stack matches the stapling/folding position.
Sheets coming later are output closer to the delivery slot, and the volume of paper that may
be output is as follows:
15 sheets (maximum of 14 sheets of 80g/m2 + 1 sheet of 250g/m2)
Paper positioning plate
First sheet
Second sheet
Direction of
delivery
F-2-32
■
Aligning the Sheets
The alignment plates operate to put the sheets in order each time a sheet of paper is output
to the vertical path assembly.
The alignment plates are mounted at the edge of the vertical path assembly.
The alignment plates also operate after stapling to prepare the stack for delivery.
Sheets
Paper positioning plate
Alignment plate
Alignment plate
F-2-33
