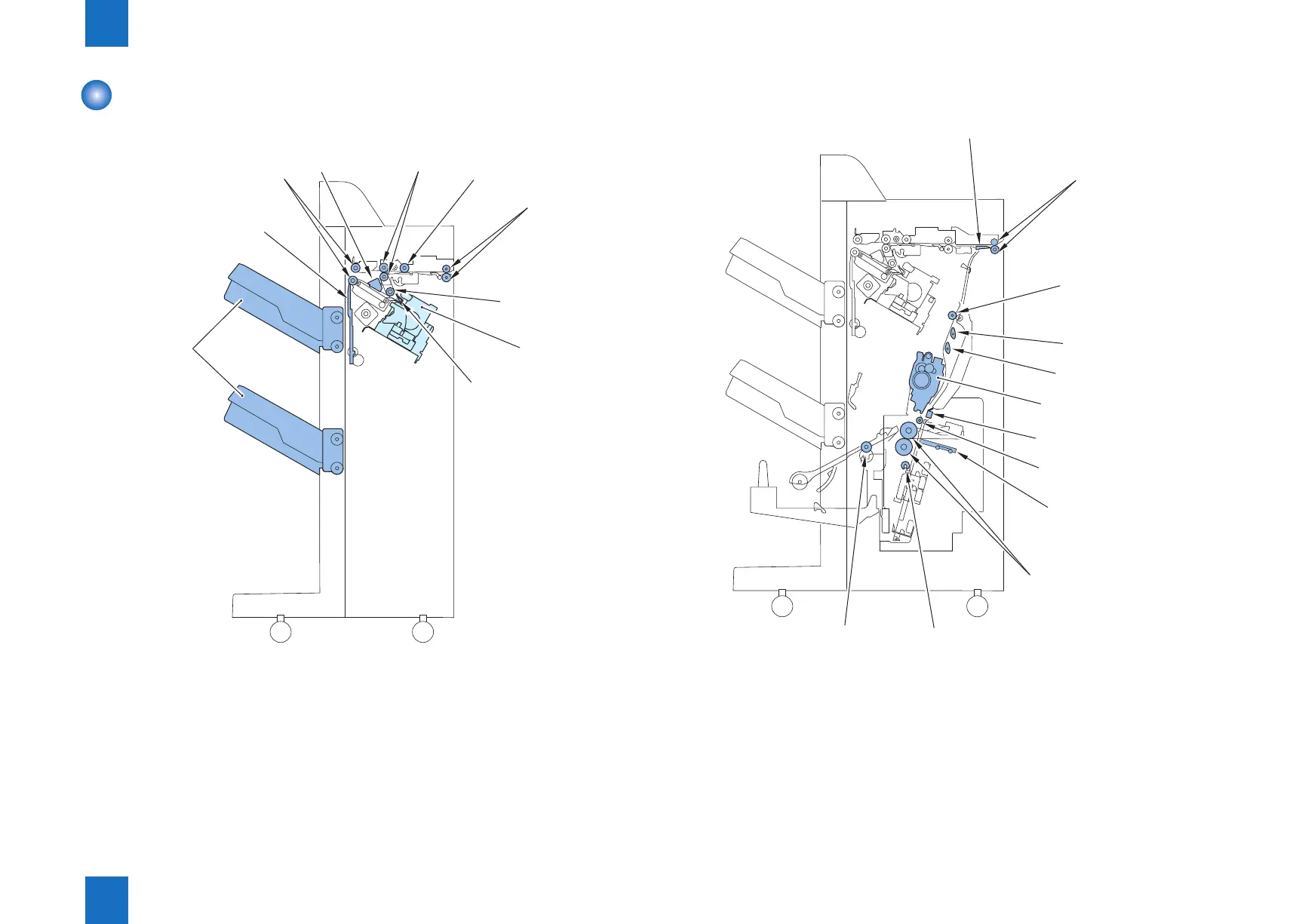

Cross Section
■
Finisher Unit
Delivery tray
Stack delivery
roller
Aligning plate 1st delivery roller
Return roller
Rear end assist guide
Stapler
Inlet roller
Buffer roller
Shutter
F-1-5
■
Saddle Unit
Stitcher (fromt,rear)
Inlet roller 1
Saddle stitcher flapper
Inlet roller 2
No.1 flapper
No.2 flapper
Stitcher mount
Holding roller
Paper pushing plate
Paper folding roller
Crescent roller
Saddle delivery roller
