Parts Replacement and Cleaning Procedure > List of Parts > List of Switchs > Saddle Finisher Unit
Parts Replacement and Cleaning Procedure > List of Parts > List of Switchs > Saddle Finisher Unit
List of Switchs
■
Staple Finisher Unit
MSW101
MSW102
MSW103
MSW104
No. Name Part No Refer to
MSW101 Front cover switch - -
MSW102 Swing guide switch - -
MSW103 Tray 1 switch - -
MSW104 Staple safety switch - -

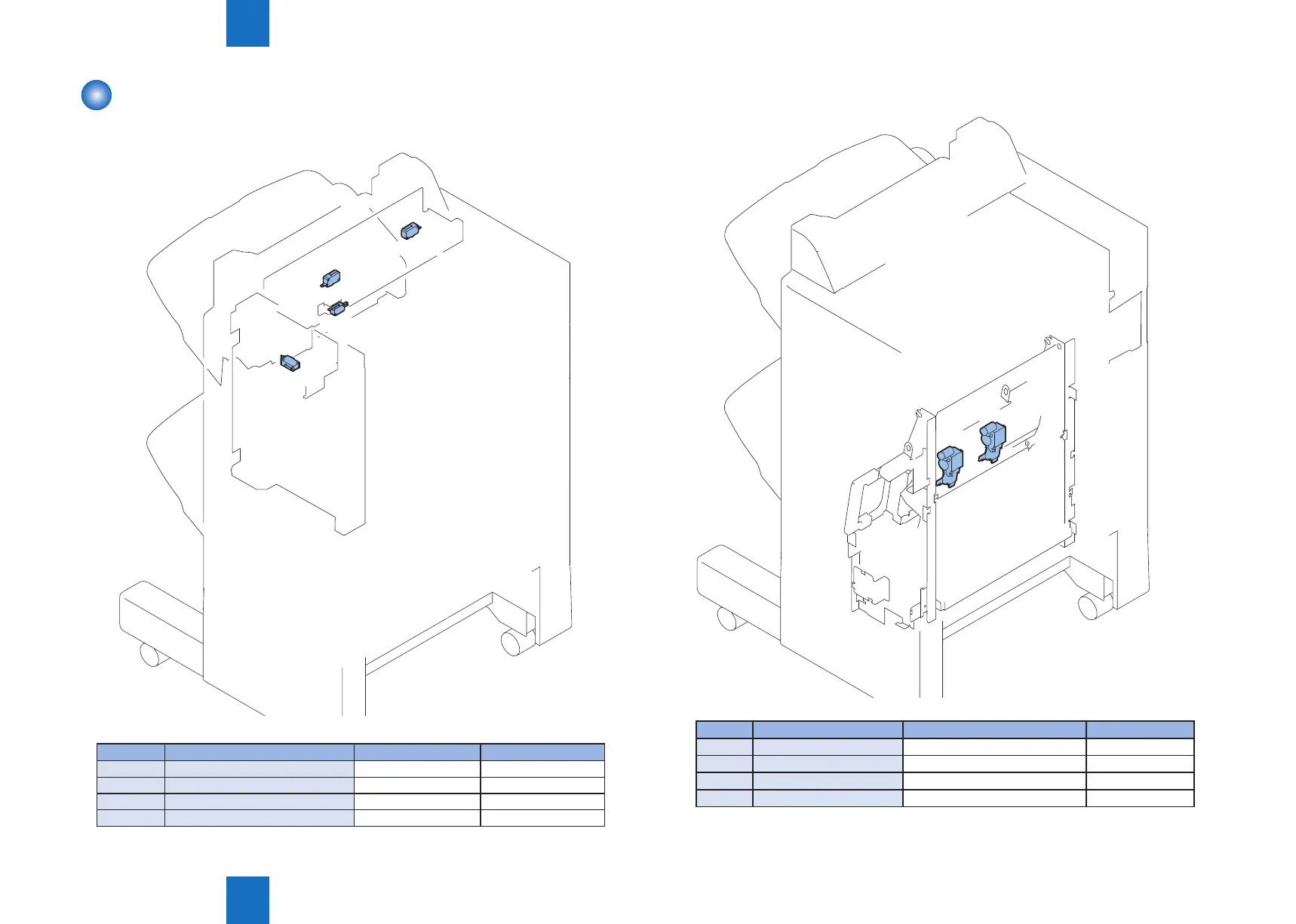

F-4-8
T-4-8
■
Saddle Finisher Unit
SW4,5
SW6,7
No. Name Part No Refer to
SW4 Staple sensor (rear) -
-
SW5 Stitcher HP sensor (rear) -
-
SW6 Staple sensor (front) -
-
SW7 Stitcher HP sensor (front) -
-
F-4-9
T-4-9
