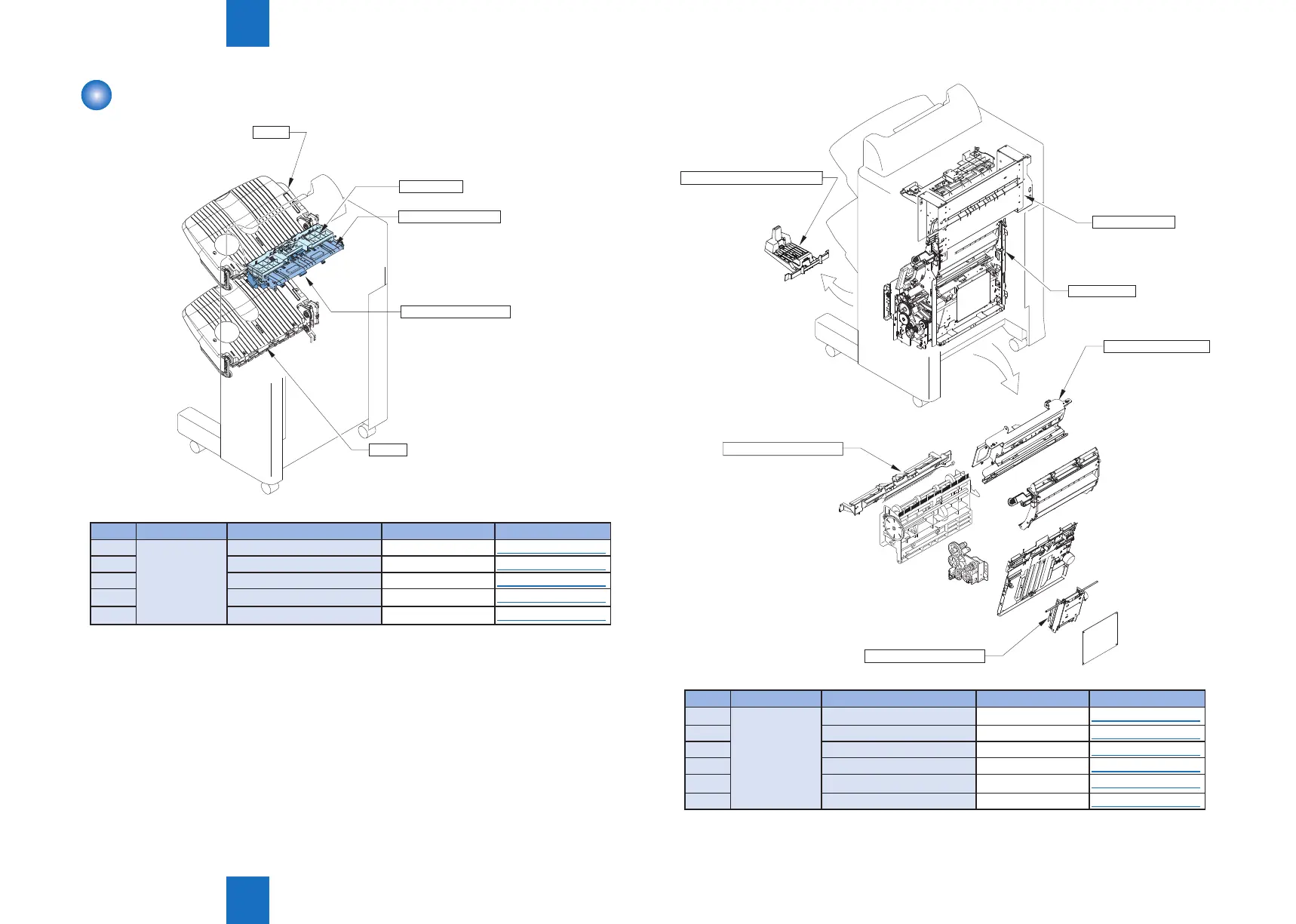

Main Units
Swing Unit
Tray 1
Tray 2
Return Roller Unit
Process Tray Unit
No. Category Name Part No Refer to
[1] Staple Finisher
Unit
Swing Unit 4G3-2700 (Refer to page 4-19)
[2] Process Tray Unit 4G3-2706 (Refer to page 4-21)
[3] Tray 1 4G3-2768 (Refer to page 4-23)
[4] Tray 2 4G3-2769 (Refer to page 4-24)
[5] Return Roller Unit FM0-1891 (Refer to page 4-25)
F-4-3
T-4-3
Saddle Unit
Positioning Plate Unit
Upper Delivery Guide
Inlet Feed Unit
Saddle Delivery Tray Unit
Stitcher Mount Unit
No. Category Name Part No Refer to
[1] Saddle Stitcher
Unit
Saddle Unit FM0-1685 (Refer to page 4-26)
[2] Stitcher Mount Unit 4G3-2721 (Refer to page 4-27)
[3] Positioning Plate Unit 4G3-0671 (Refer to page 4-28)
[4] Saddle Delivery Tray Unit 4G3-2718 (Refer to page 4-28)
[5] Upper Delivery Guide 4G3-2712 (Refer to page 4-29)
[6] Inlet Feed Unit FM2-0735 (Refer to page 4-29)
F-4-4
T-4-4
