Canon J1 - Shifting the Stapler Unit

2
2
2-31
2-31
Technology > Staple Operation > Stapler Unit > Shifting the Stapler Unit
Technology > Staple Operation > Stapler Unit > Shifting the Stapler Unit

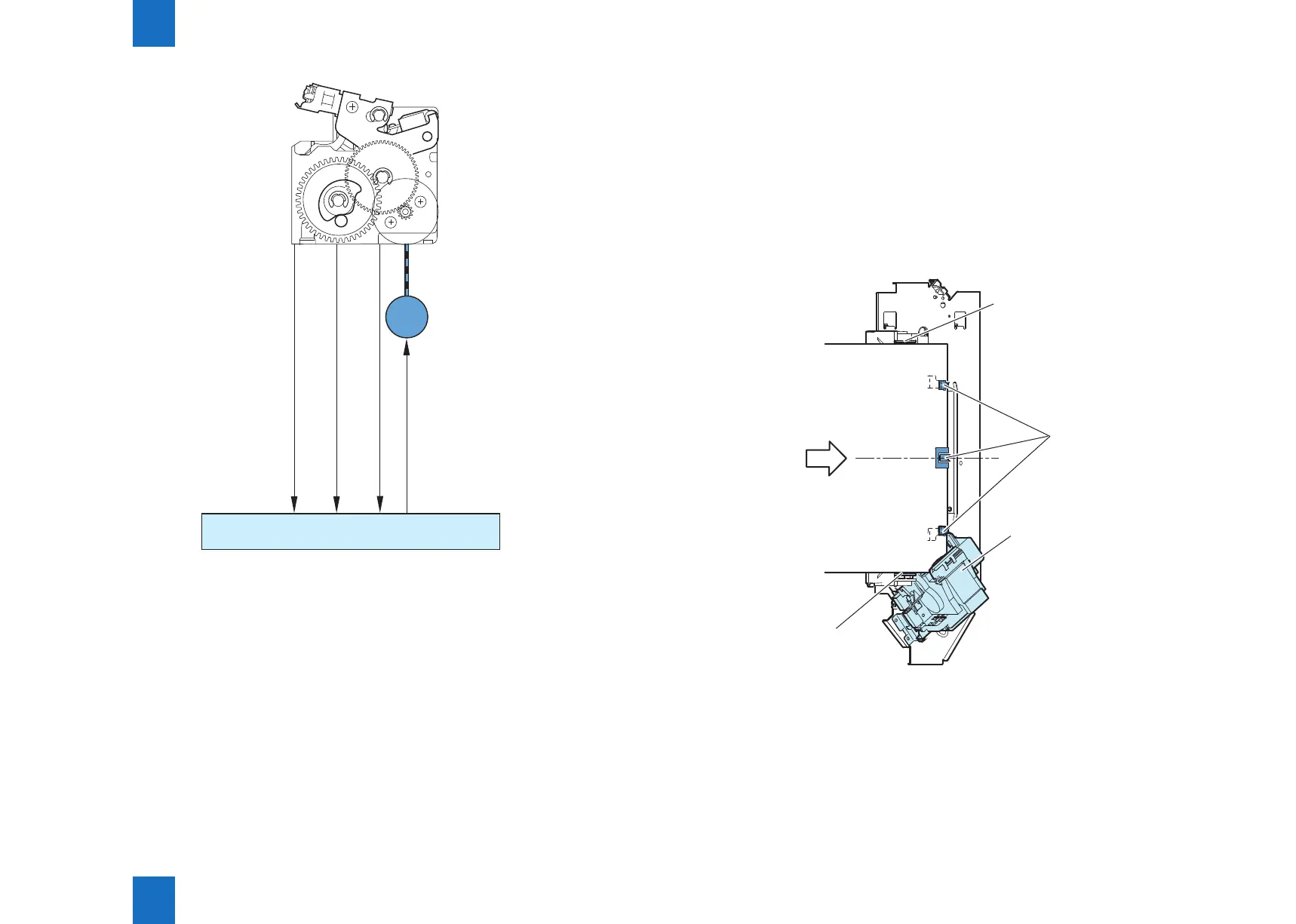

M111
Staple motor drive signal
Stapler HP detect signal Hook top position detect signal
Hook empty detect signal
Finisher controller PCB
F-2-69
■
Shifting the Stapler Unit
The stapler unit is shifted by the stapler shift motor (M105).
The home position is detected by the stapler shift home position sensor (PI110).
When there is a staple command from the host machine, the stapler shifts to the staple ready
position, which depends on the stapling position and paper size.
The stapler unit waits at the following points when staple mode is selected:
●
Front 1-Point Stapling
The position is the same as the stapling position.
Front aligning plate
Stapling position/
Wait position
Feeding direction
Stopper
Rear aligning plate
F-2-70
