List of Motors
■
Staple Finisher Unit
M101
M107
M106
M102
M102
M109
M105
M108
M111
M104
M103
M110

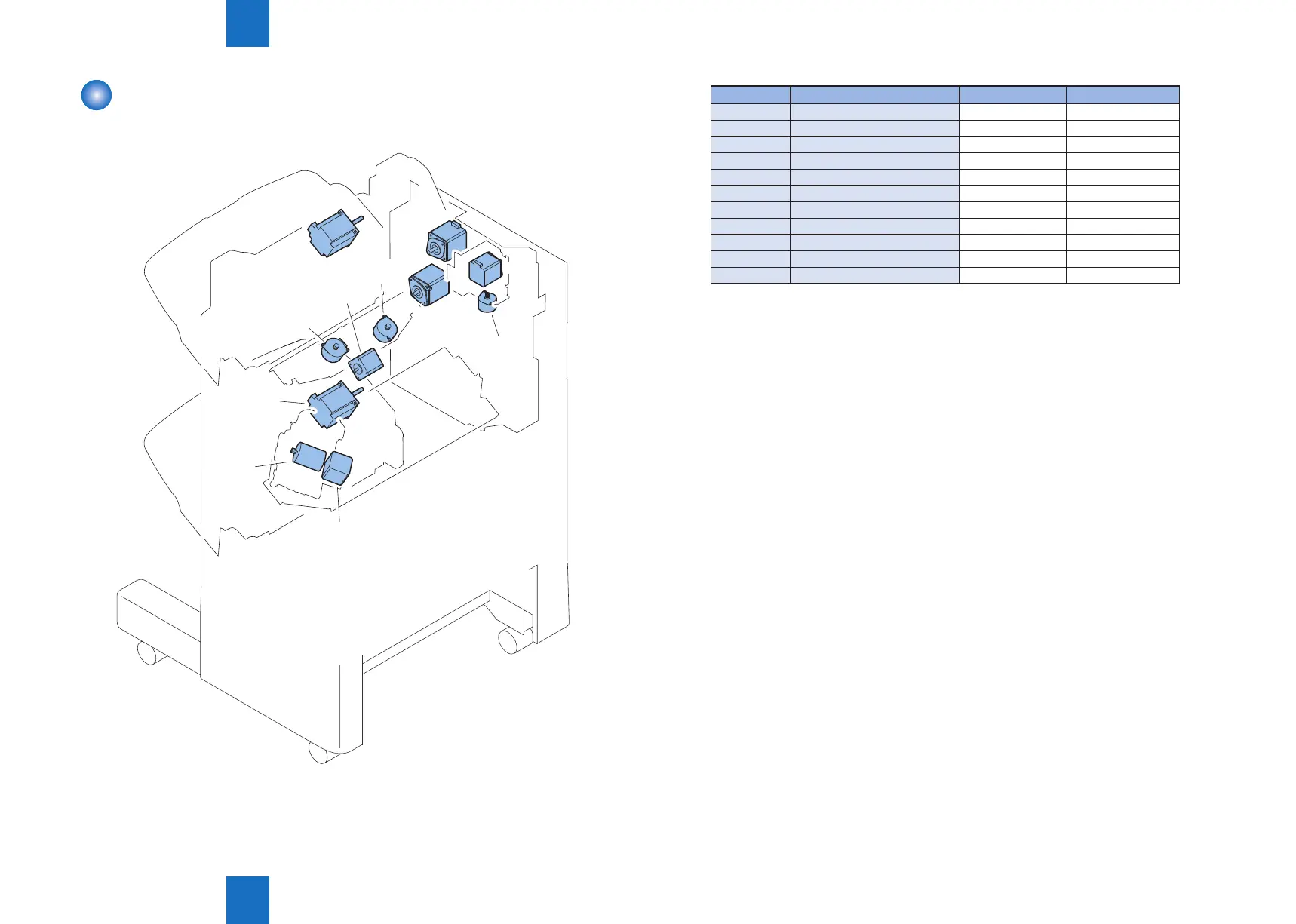

F-4-14
No. Name Part No Refer to
M101 Inlet motor - -
M102 Stack ejection motor - -
M103 Front aligning plate motor - -
M104 Rear aligning plate motor - -
M105 Stapler shift motor - -
M106 Swing motor - -
M107 Tray 1 shift motor - -
M108 Tray 2 shift motor - -
M109 Rear end assist motor - -
M110 Gear change motor - -
M111 Staple motor - -
T-4-14
