Canon J1 - Paper Delivery Path; Straight Ejection

2
2
2-9
2-9
Technology > Feeding Unit > Paper Delivery Path > Straight Ejection
Technology > Feeding Unit > Paper Delivery Path > Straight Ejection

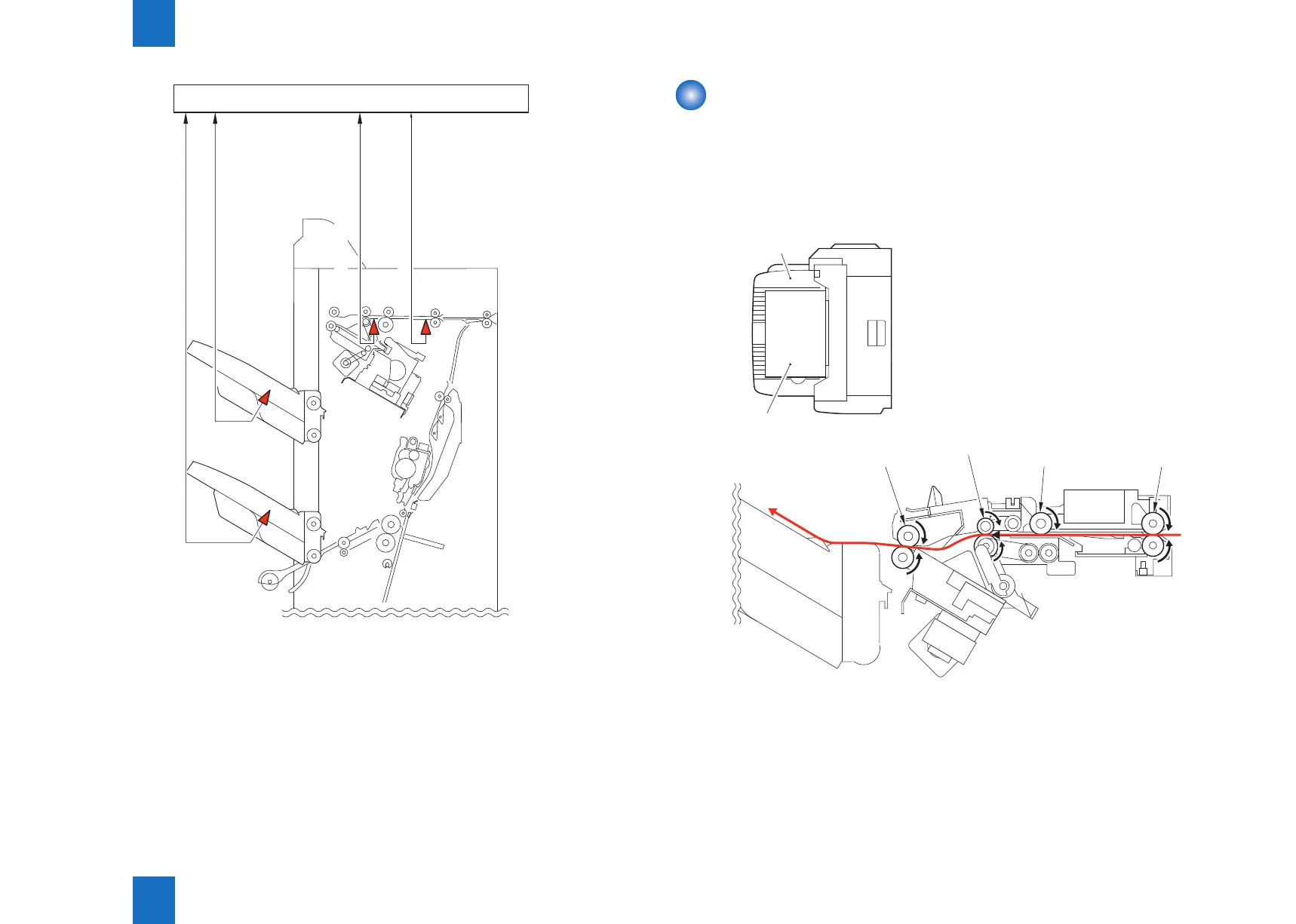

Delivery path paper detection sensor
TIMING
Inlet paper detection sensor INLET
Second tray paper detection sensor TRY2-P
First tray paper detection sensor TRY1-P
Finisher controller PCB
F-2-10
Paper Delivery Path
There are three ejection paths to tray 1 and 2 depending on the ejection processing.
Furthermore, Booklet Finisher has ejection paths for Saddle Stitcher Unit.
■
Straight Ejection
When the equipment is set to non-sort, all copies are ejected through the following path.
Stack ejection roller
1st delivery roller
Buffer roller
Inlet roller
Tray
Paper is stacked alternately
F-2-11
