Technology > Saddle Stitcher Unit > Controlling the Inlet Flappers > B4/LGL Paper Path (3 sheets)
Technology > Saddle Stitcher Unit > Controlling the Inlet Flappers > B4/LGL Paper Path (3 sheets)
■
A3/A3/ 305mm x 457mm (12 x 18)/ 279mm x 432mm (11 x 17)

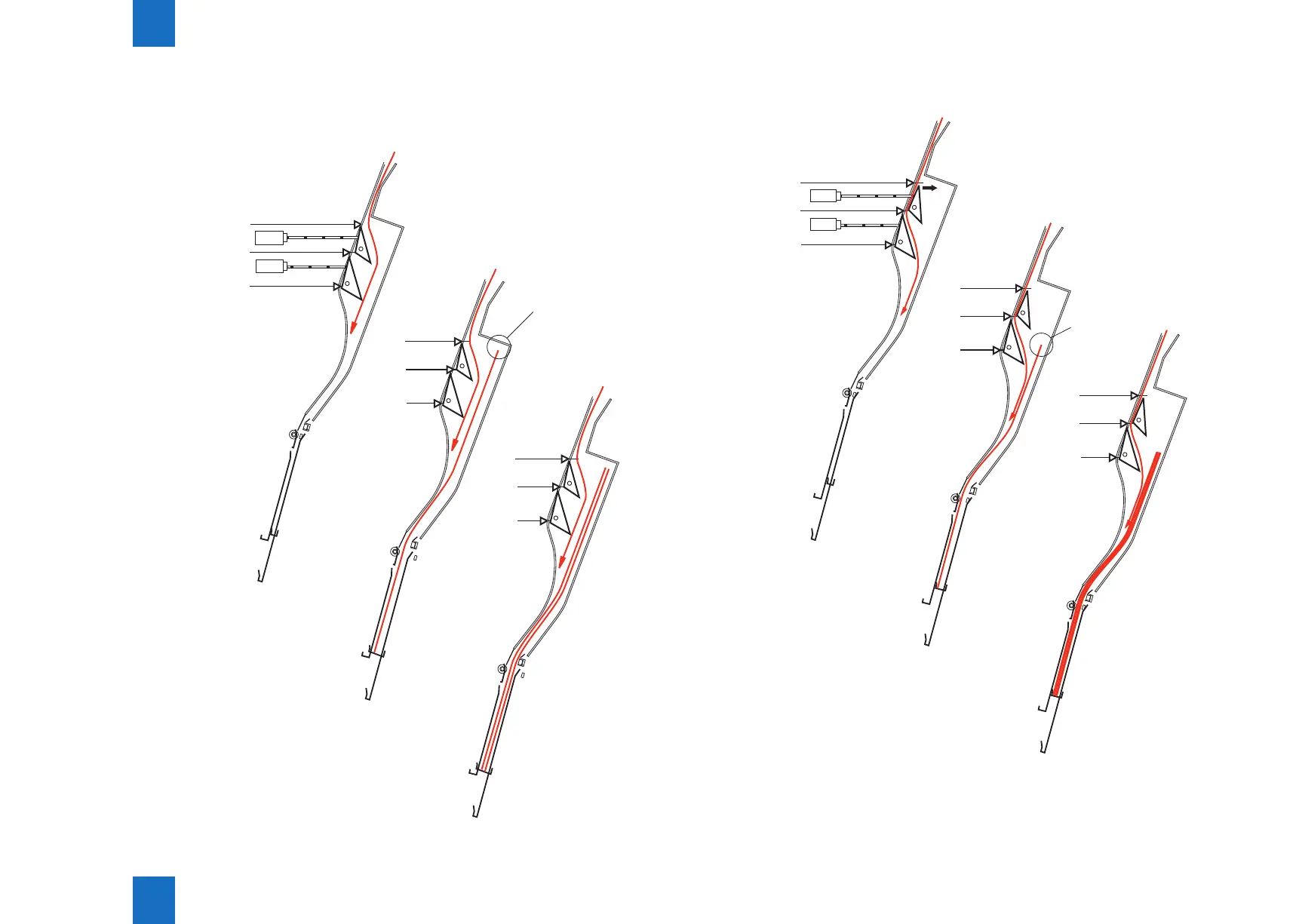

Paper Path (3 sheets)
No.1 paper sensor PI18
No.2 paper sensor PI19
No.3 paper sensor PI20
No.1 paper deflecting plate solenoid
No.2 paper deflecting plate solenoid
Passage of paper
Non-passage of paper
Non-passage of paper
Entry of First sheet
Entry of Second sheet
Entry of Third sheet
SL1
SL2
OFF
OFF
PI18
PI19
PI20
PI18
PI19
PI20
Top edge
F-2-37
■
B4/LGL Paper Path (3 sheets)
No.1 paper sensor
PI18
No.2 paper sensor
PI19
No.3 paper sensor
PI20
Passage of paper
Passage of paper
Non-passage of paper
Entry of First sheet
Entry of Second sheet
Entry of Third sheet
Top edge
SL1
SL2
ON
OFF
PI18
PI19
PI20
PI18
PI19
PI20
F-2-38
