Parts Replacement and Cleaning Procedure > Main Units > Removing the Processing Tray
Parts Replacement and Cleaning Procedure > Main Units > Removing the Processing Tray

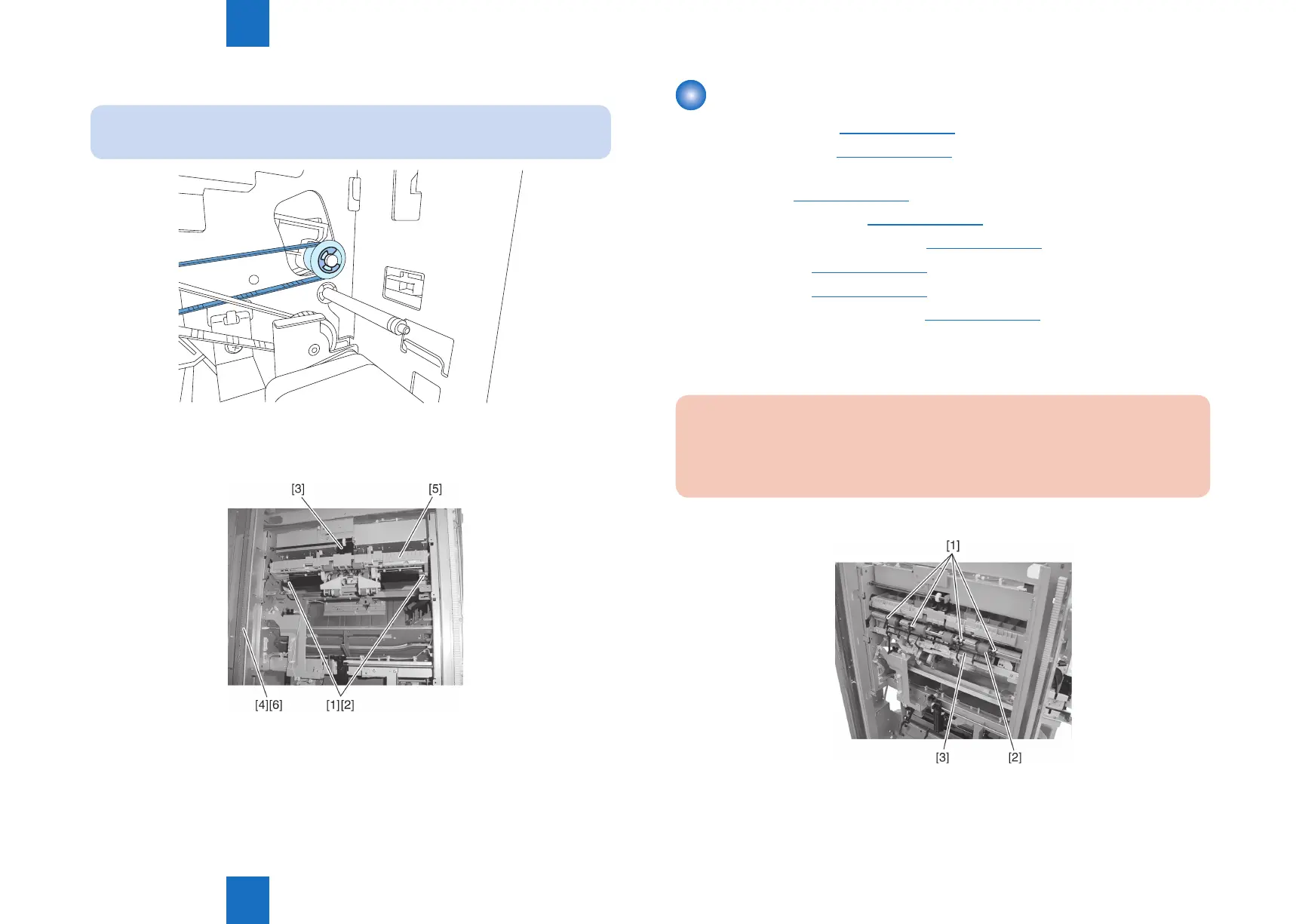

16) Take off an E ring and remove the gear and a belt.
NOTE:
The parallel pin drops when the gear is removed. Be careful not to loose it.
17) Pull out swing device [5] from the delivery direction.
F-4-35
F-4-36
Removing the Processing Tray
1) Remove the front cover.(Refer to page 4-14)
2) Remove the rear cover.(Refer to page 4-14)
3) Remove the front inside upper cover. (In the case of Staple Finisher, this procedure is
unnecessary.)(Refer to page 4-17)
4) Remove the left upper cover.(Refer to page 4-15)
5) Remove the grate-shaped upper guide.(Refer to page 4-16)
6) Remove the tray 1.(Refer to page 4-23)
7) Remove the tray 2.(Refer to page 4-24)
8) Remove the grate-shaped lower guide.(Refer to page 4-16)
9) Unfasten four snap fasteners [1] and remove the sensor ag [3] from the stack delivery
roller [2].
CAUTION:
Hold the snap fastener at the base when unfastening because the sensor ag arm can
break easily. When fastening, insert the boss of the sensor ag snap fastener in the
hole on the processing tray side.
F-4-37
