Parts Replacement and Cleaning Procedure > Main Units > Removing the Swing Unit
Parts Replacement and Cleaning Procedure > Main Units > Removing the Swing Unit

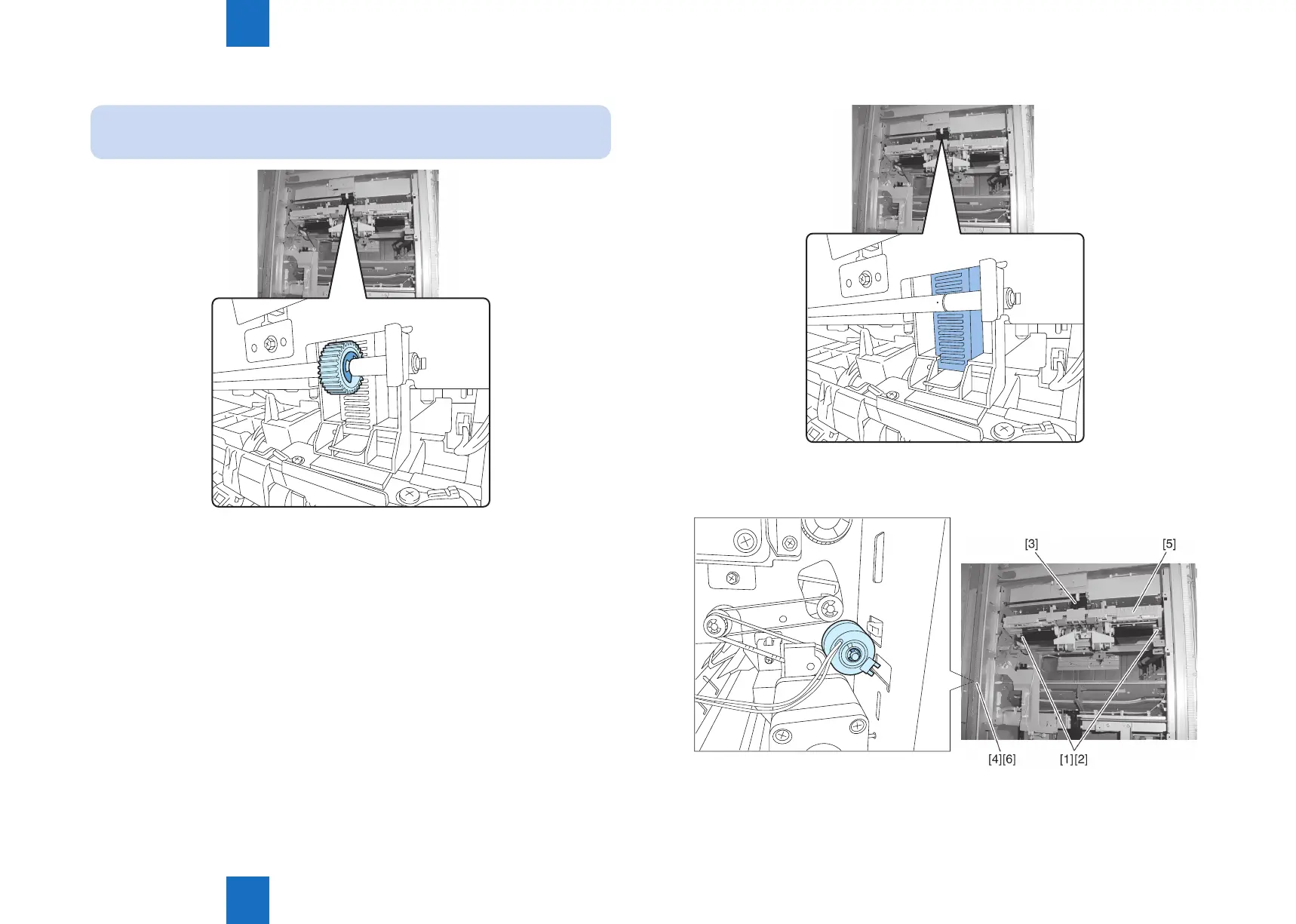

13) Remove the E ring and gear.
NOTE:
The parallel pin drops when the gear is removed. Be careful not to loose it.
F-4-32
14) Remove the swing pressurization rack
15) Take off an E ring and release the claw of the stack delivery roller rear side clutch and
remove the clutch.
F-4-33
F-4-34
To Next Page
