Technology > Saddle Stitcher Unit > Overview of Folding Operation > Double Folding a Stack
Technology > Saddle Stitcher Unit > Overview of Folding Operation > Double Folding a Stack

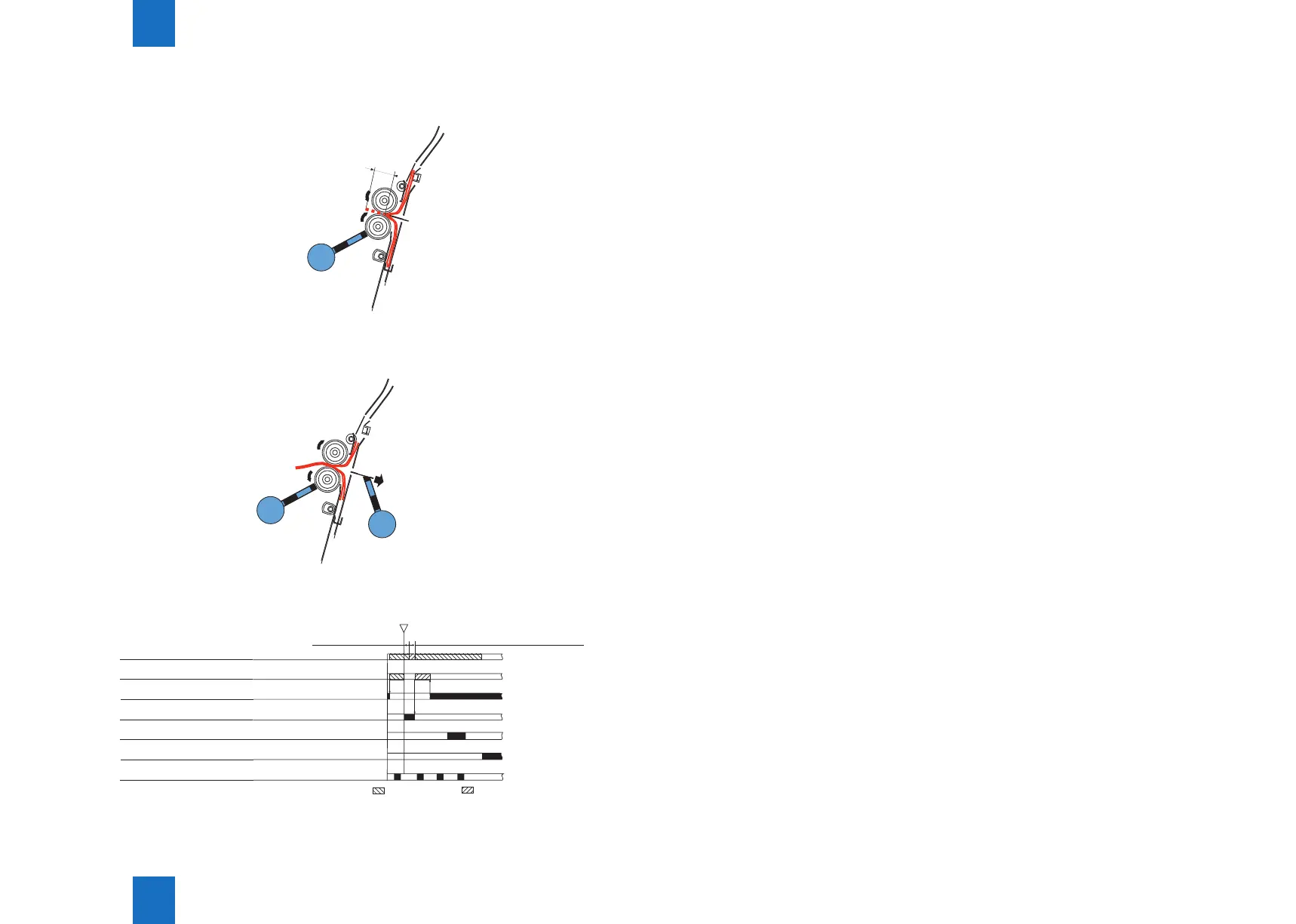

3) The paper folding rollers rotate in reverse, pushing back the stack for a length of about 20
mm (reverse feeding).
M2
Paper folding motor
20 mm
(approx.)
4) The paper folding rollers rotate again, feeding out the stack. The paper pushing plate
returns to its home position.
M2
Paper folding motor
M8
Paper pushing plate motor
Paper folding motor (M2)
Paper pushing plate motor (M8)
Delivery sensor (PI11)
Paper pushing plate top position sensor (PI15)
Paper pushing plate home position sensor (PI14)
Tray paper sensor (PI6)
Equivalent of 20 mm Equivalent of 20 mm (reverse feeding)
Gripping of paper stack
: Motor CW
: Motor CCW
Paper folding home position sensor (PI21)
F-2-64
F-2-65
F-2-66
