Carrier 69NT40-511-310 - Water-Cooled Condenser Section; Figure 2-5 Water-Cooled Condenser Section

T -296
2-5
2.1.6 Water-Cooled Condenser Section
The water-cooled condenser section (Figure 2-5)
consists of a water-cooled condenser, sight glass,
quench expansion valve, rupture disc, condenser
pressure transducer, filter-drier , water couplings and
water pressure switch. The water cooled condenser
replaces the standard unit receiver.
1
2
34 5 6
7
8
9
10
11
1. Sight Glass
2. Water-Cooled Condenser
3. Rupture Disc
4. Condenser Pressure Transducer
5. Quench Valve
6. Filter-Drier
7. Liquid Line Service Valve
8. Moisture/Liquid Indicator
9. Coupling (Water In)
10. Self Draining Coupling (Water Out)
11. Water Pressure Switch

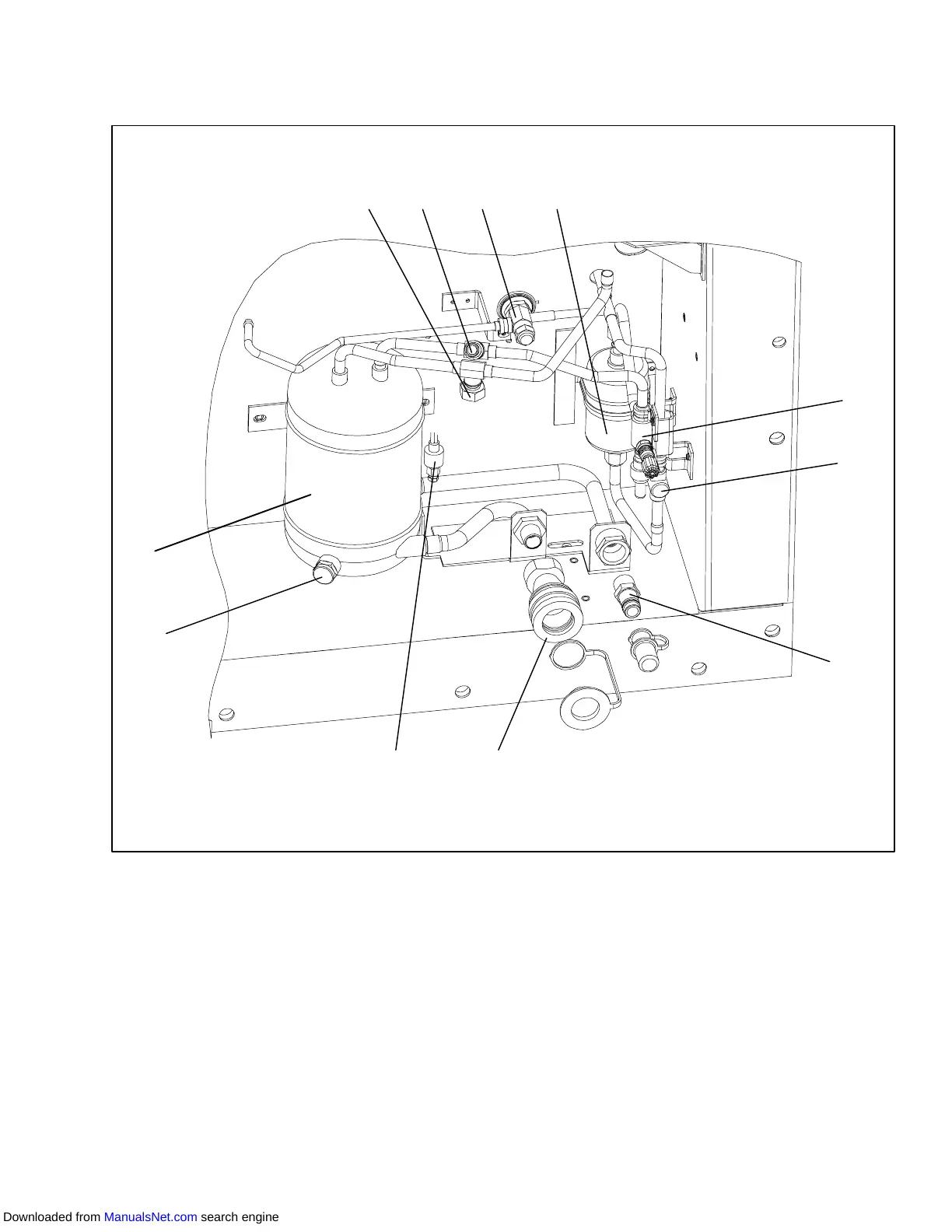

Figure 2-5 Water-Cooled Condenser Section
