Carrier 69NT40-511-310 - Figure 6-33. Saginomiya Temperature Recorder

6-28T -296
temperature. Rotate the chart by hand. The
indicated temperature should be 0°C(32°F).
6.24.3Replacing Sensor Probe
a. Remove box from unit.
b. Remove nut and bushing (item 18, Figure 6-33).
c. Install replacement probe and bushing. Seal with
silicone before securing to case.
d. Install box into unit.
1617
18
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15

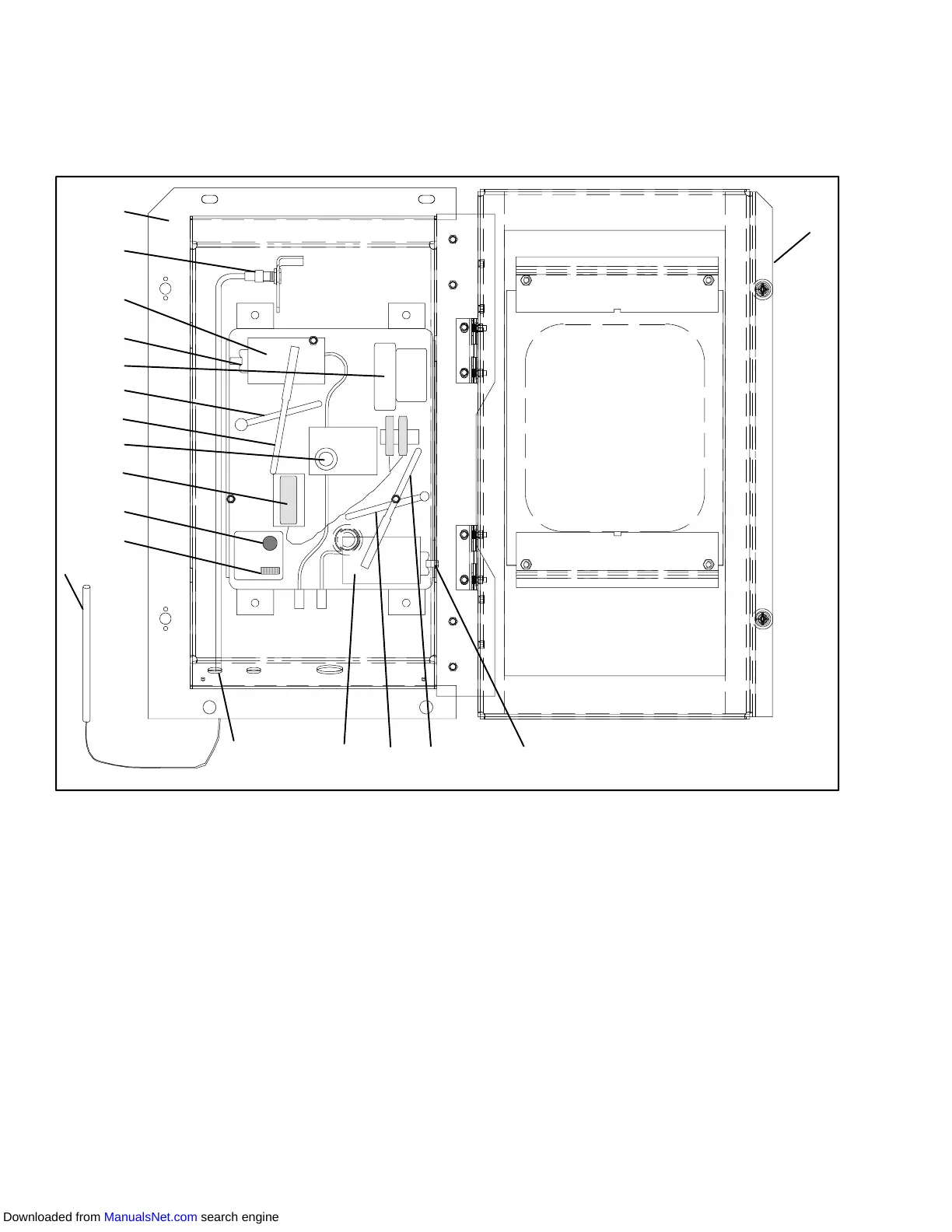

1. Thermistor Sensor
2. Voltage Indicator
3. Indicator Test Switch
4. Battery (“C” size, Alkaline)
5. Chart Nut
6. Stylus (Supply)
7. Stylus Lifter (Supply)
8. 31 Day T imer
9. Setscrew (Adjustment)
10. Element (Supply)
11. Return Temperature Sensor Assembly
12. Recorder Box
13. Recorder Door
14. Setscrew (Adjustment)
15. Stylus (Return)
16. Stylus Lifter (Return)
17. Element (Return)
18. Bushing and Nut
Figure 6-33. Saginomiya Temperature Recorder
