Case 2050M - Page 129

To Next Page

To Previous Page

5-TRANSPORTOPERATIONS

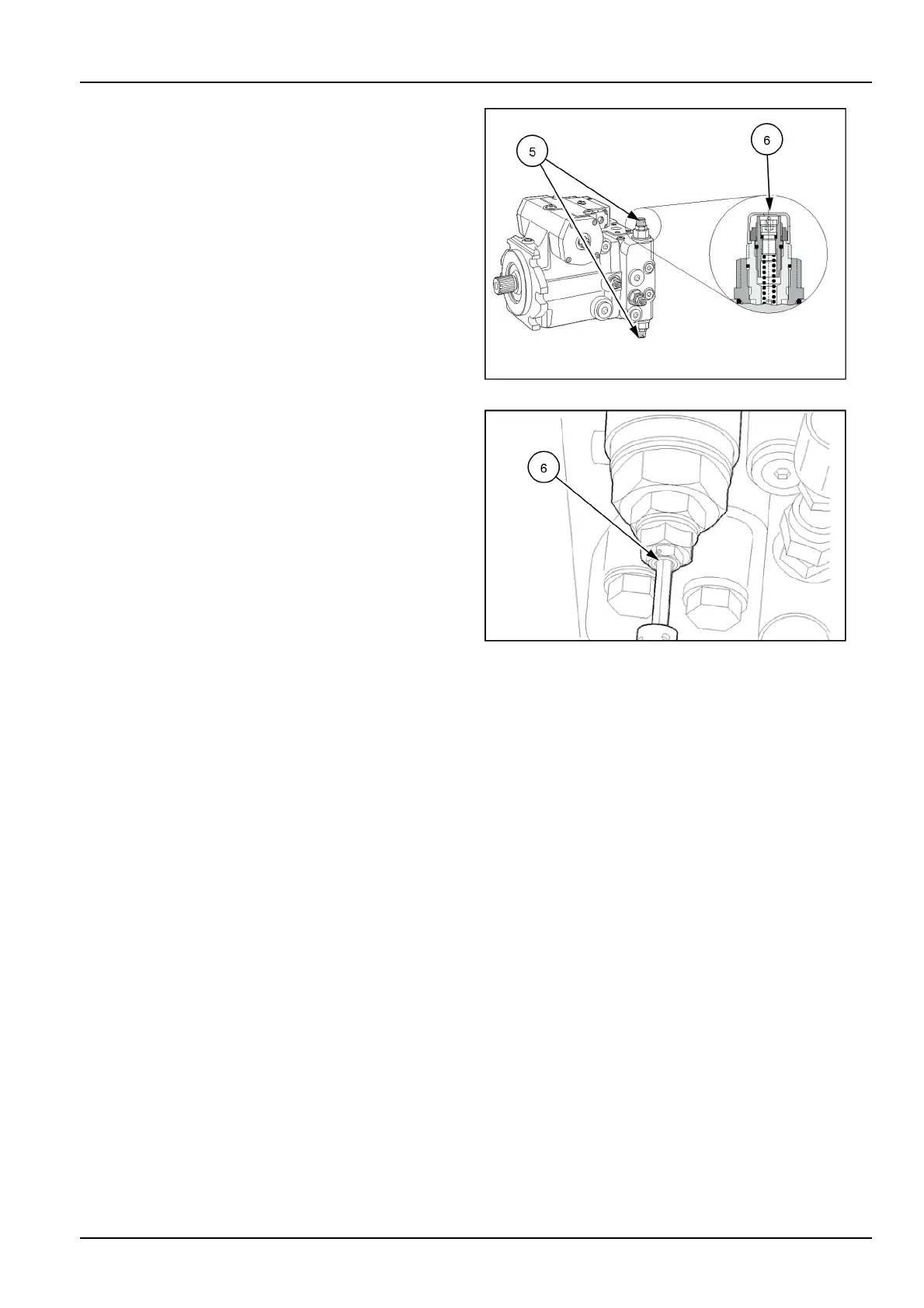

4.Removethereliefvalveplasticcaps(5)toaccessthe

engagementscrews(6).Theplasticcapswillbeun-

usableafterremovalandshouldbereplaced.

RAIL12DOZ0644AA5

5.UseanAllenwrench,andturntheengagementscrew

(6)counterclockwisetwoturnsoneachreliefvalve.

RCIL10CWL116AAL6

5-7
