7-MAINTENANCE

8.Fillwiththepropermixandamountofantifreeze/

coolantandwaterforthesystemandfortheprevailing

weatherconditions.

9.Starttheengine,andletitrunatlowidleuntiltheengine

reachesoperatingtemperature.

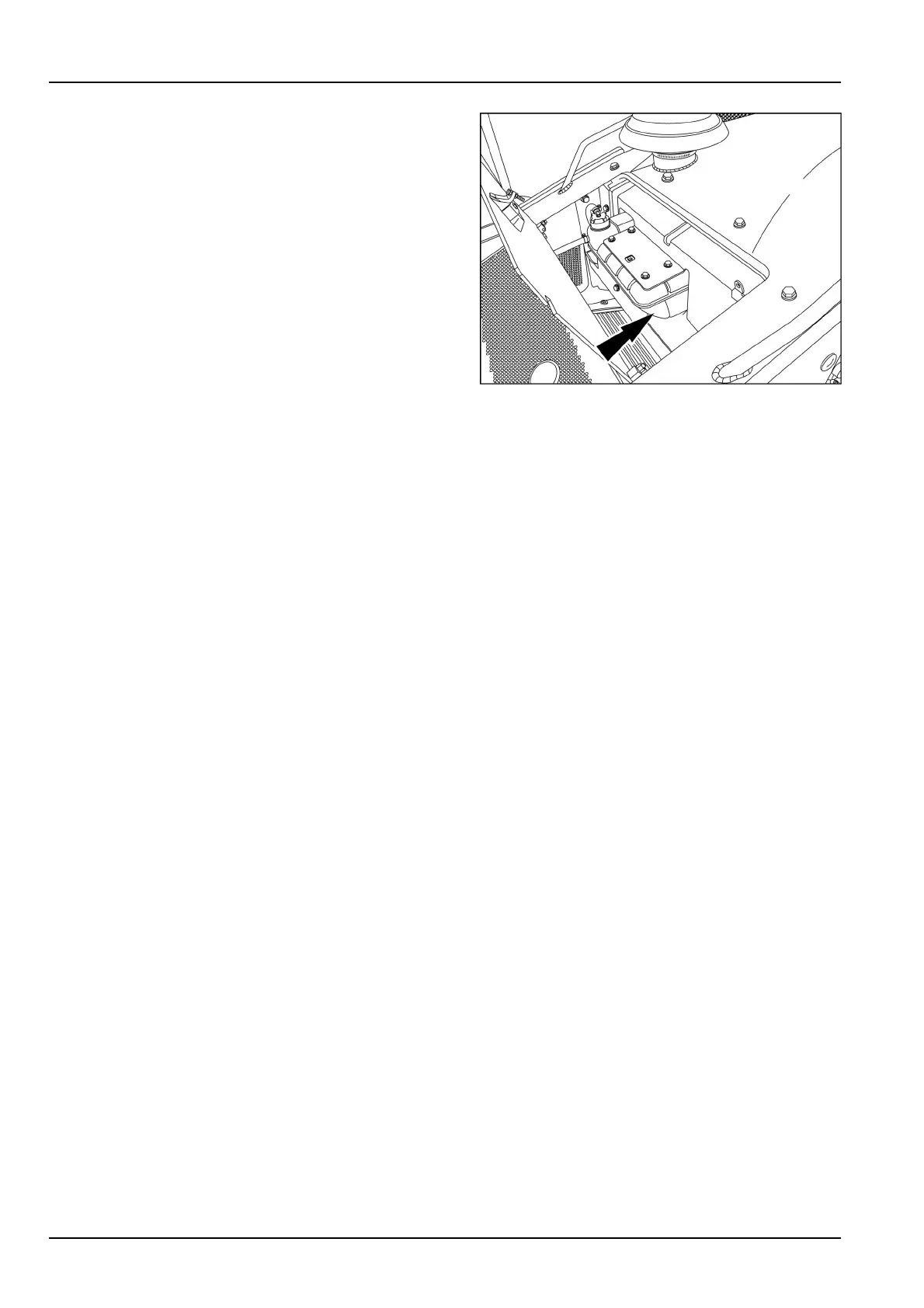

10.Allowthesystemtocool.Checkthecoolantlevelat

thecoolantreservoir.

RAIL13DOZ1692AA4

7-78
