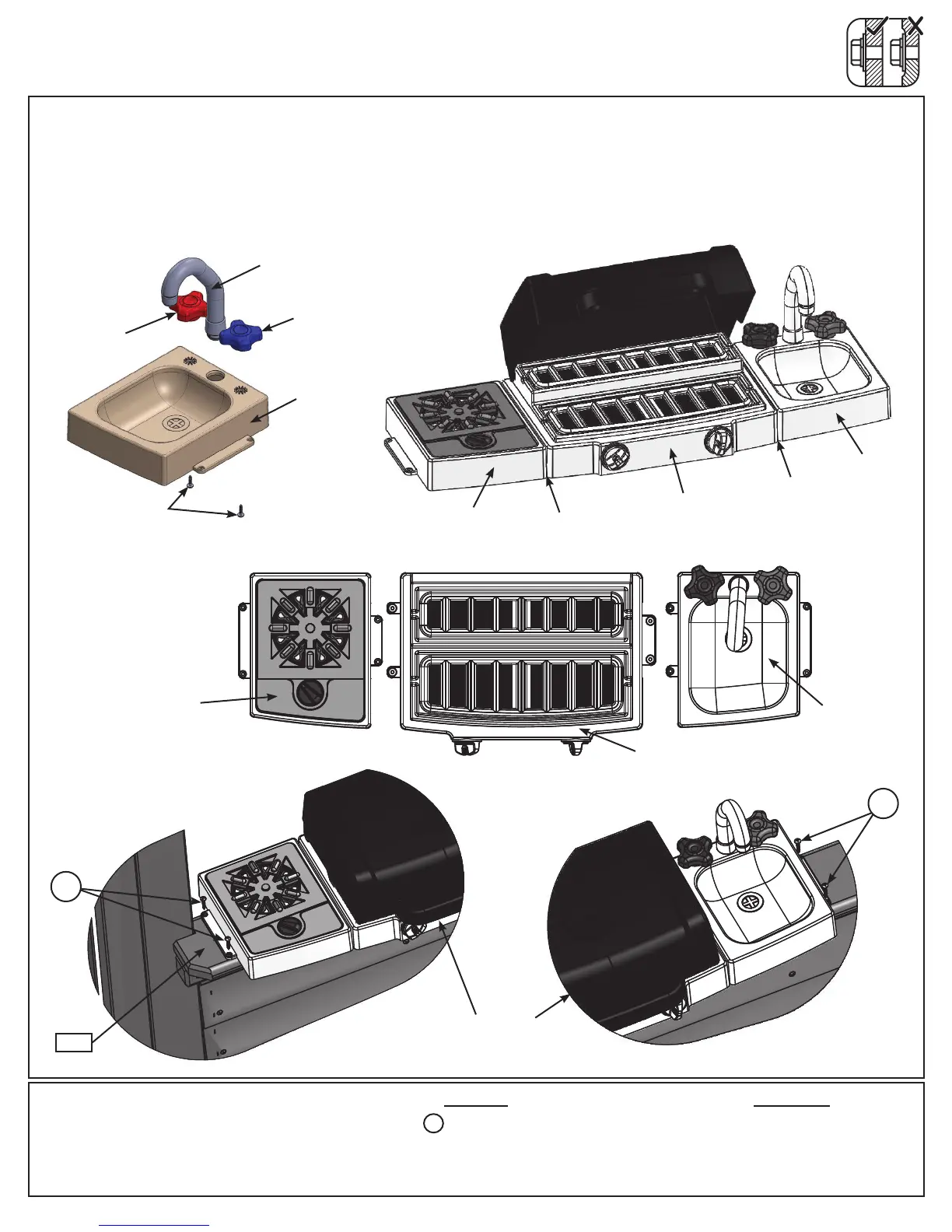

Step 49: Assemble and Attach BBQ Kitchen
Part 2
Hardware Other Parts
4 x #8 x 7/8” Truss Screw 1 x BBQ Cooktop
1 x BBQ Sink Set
S0
Fig. 49.6
Fig. 49.7
Top View
Faucet
Sink
Knob
Sink
Sink Knob
Included
hardware
Fig. 49.5
Tight
Tight
BBQ
Sink Set
BBQ
Sink Set
BBQ Base
BBQ Base
BBQ
Cooktop
BBQ
Cooktop
Fig. 49.8
Fig. 49.9
031
S0
S0
BBQ Base
C: Place Faucet and 2 Sink Knobs in opening of Sink and attach Sink Knobs with included hardware. (g. 49.5)
Important: Use a hand held screw driver and DO NOT over tighten.
D: Slide BBQ Cooktop tight beside BBQ Base on the left and BBQ Sink Set tight on the right. Attach both BBQ
Cooktop and BBQ Sink Set to (031) Table Top with 2 (S0) #8 x 7/8” Truss Screws each. (g. 49.6, 49.7, 49.8 and
49.9)
