Cedar Summit F25720 - Attach TNR 4 Slide to Fort

Step 31: Attach TNR 4 Slide to Fort
Hardware
1 x #12 x 1” Pan Screw
1 x 1/4 x 1” Pan Bolt
 (1/4”atwasher&1/4”locknut-previouslyremoved)
PB6
Other Parts
1 x TNR4 Tube Support
A: On the fourth attached Elbow Assembly remove the pan bolt and nut which is facing the fort (installed in Step
25). (g. 31.1) The bolt will no longer be needed, but keep the lock nut.
B: Loosely attach TNR4 Tube Support (at the slightly bent end) to the slide seam using 1 (PB6) 1/4 x 1” Pan
Bolt (with at washer and the previously removed lock nut). (g. 31.2)
C: Rotate TNR4 Tube Support and attach to (040) Slide End Panel using 1 (S6) #12 x 1” Pan Screw as shown
in g. 31.2.
D: Fully tighten screw and bolt.
Remove PB1 (1/4 x 3/4”
PanBolt)rsttheninstall
PB6 (1/4 x 1” Pan Bolt
withatwasher)
S6
040
S6
A
A
Fig. 31.1

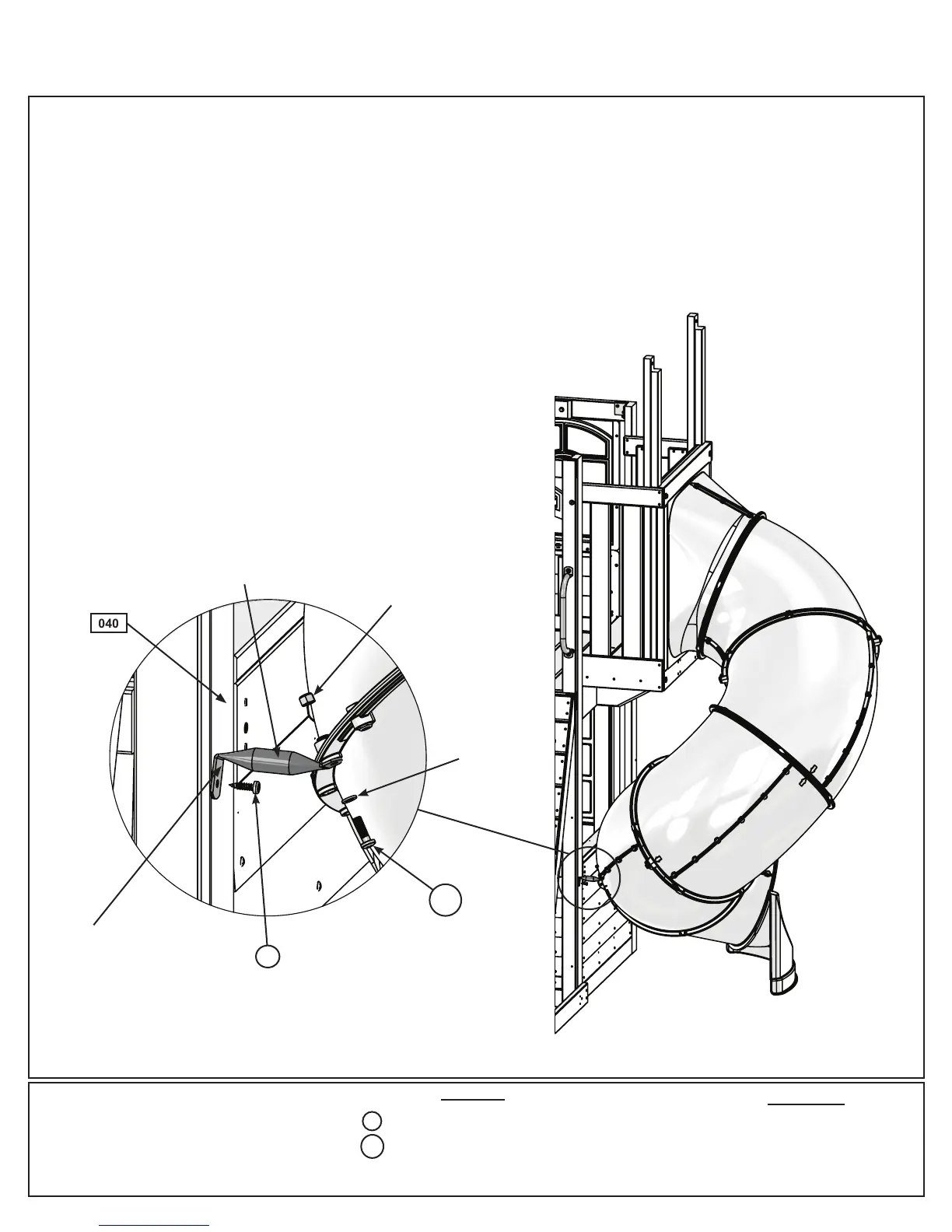

Fig. 31.2
TNR 4 Tube
Support
Lock
Nut
Flat
Washer
PB6
Note: Flat
end down
