Cedar Summit F25720 - Attach Flange Assembly to Fort

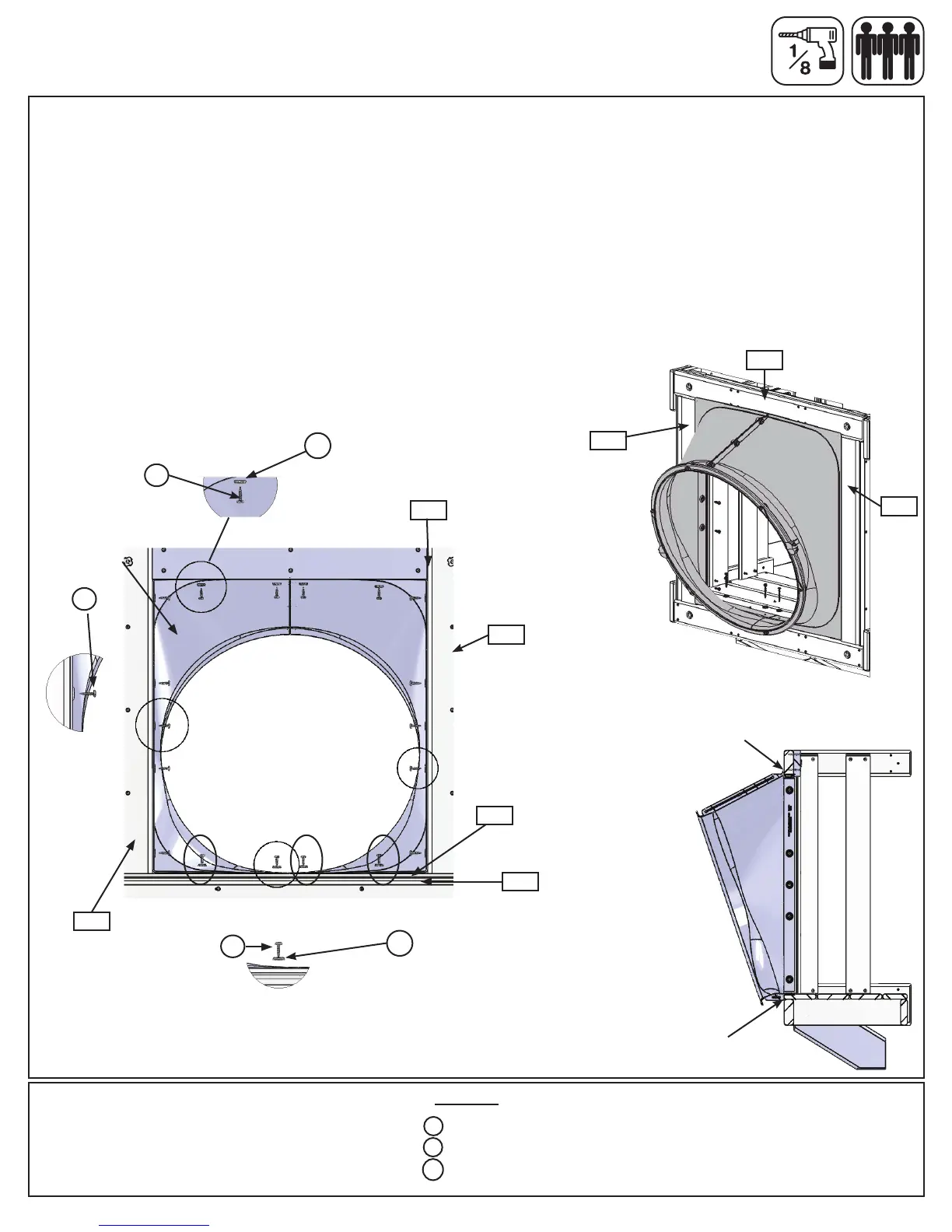

Step 26: Attach Flange Assembly to Fort
Hardware
14 x #12 x 1” Pan Screw
4 x #12 x 2” Pan Screw
8 x #12 Screw Bezel
S7
(hidden)
S6
A: With a helper place the Flange Assembly ush to the Crowsnest on the fort as shown in g. 26.1 and 26.5,
then pre-drill 1/8” pilot holes in the bottom 4 mounting locations on (230) Crowsnest Gap Board (approximate
spots where circles are on gure), making sure the pre-drilled holes are a minimum of 1” deep.
B: Attach Flange Assembly to the Crowsnest through (230) Crowsnest Gap Board and into (210) Crowsnest
Front using 4 (S7) #12 x 2” Pan Screws (with #12 Screw Bezel) in the pre-drilled holes. (g. 26.1 and 26.2)
Make sure the at surfaces of the Flange Assembly are ush to the Crowsnest as shown in g. 26.5.
C: Attach the Flange Assembly ush to (212) Crowsnest Top using 4 (S6) #12 x 1” Pan Screws (with #12
Screw Bezel) as shown in g. 25.1 and 25.3 and to both (240) Crowsnest Spacers using 5 (S6) #12 x 1” Pan
Screw per board. (g. 26.1 and 26.4)
Flange
Assembly
S7
FW6
FW6
FW6
Bottom
Sides
Top
212
240
210
212
Bottom of
slideush
with deck
Topofslideush
to(212)Crowsnest
Top
Fig. 26.1
Fig. 26.6
Fig. 26.4
Fig. 26.3
Fig. 26.2
Fig. 26.5
(hidden)
Outside View
Inside View
S6
S6
(hidden)
240
240
240
230
