Cedar Summit F25720 - Attach Exit End Assembly to Fort

Step 29: Attach Exit End Assembly to Fort
6 x 1/4” x 12.7mm Pan Bolt
6 x 1/4” Square Lock Nut
Make sure arrows are aligned
Elbow
Assembly
A: Fit the Exit End Assembly to the last Elbow Assembly by lining up the arrows on each assembly. Notice the
elbow orientation. (g. 29.1). Attach with 6 (PB7) ¼ x 12.7mm Pan Bolts and Square Lock Nuts.
Exit Elbow
Assembly

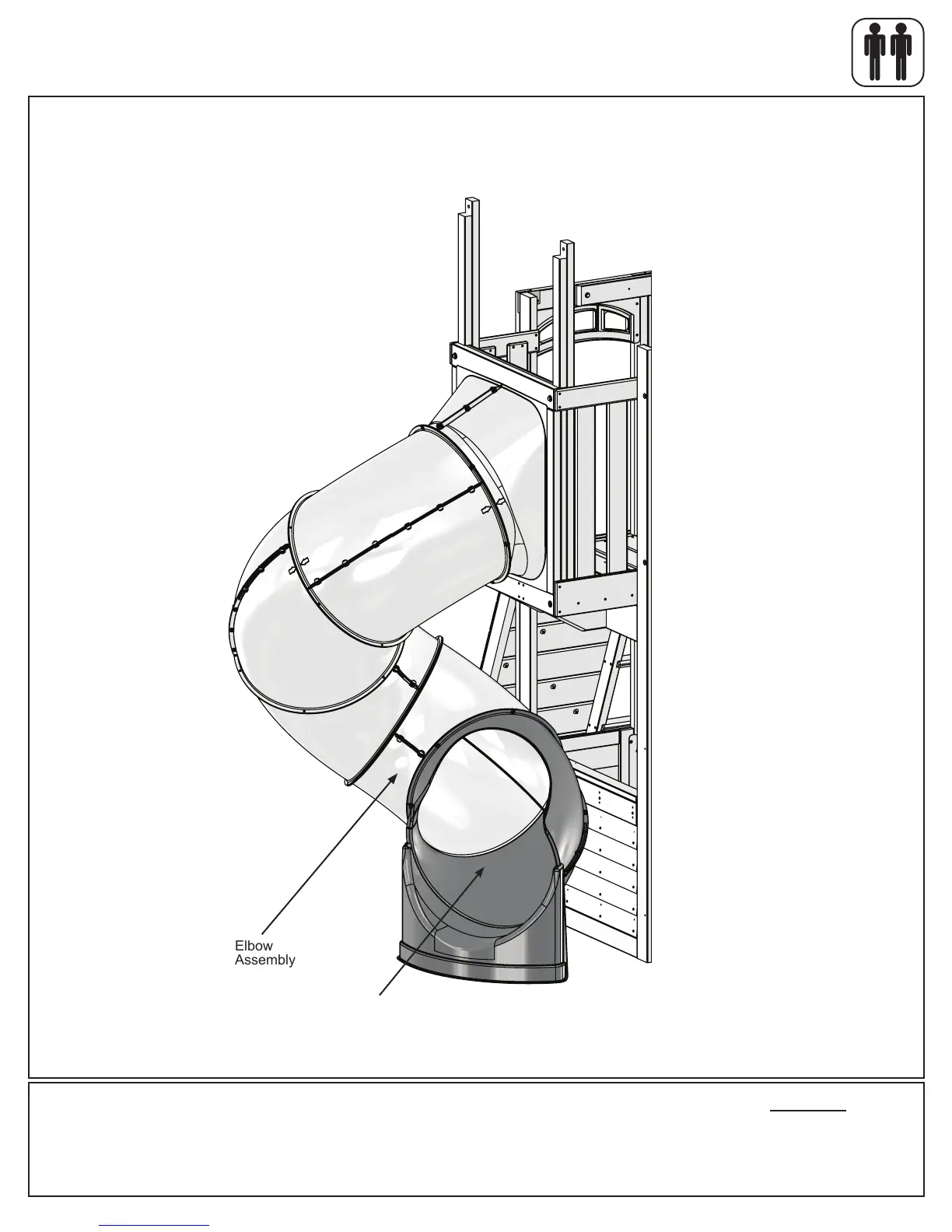

Fig. 29.1
