Cedar Summit F25720 - Swing Post Assembly

1 x SW Block Angle 2-1/2 x 3 x 15”
1 x Block SW 2-1/2 x 3 x 15”
2 x SW Post 4 x 4 x 92”
Step 16: Swing Post Assembly
Part 1
162
161
160
Note: Keep all bolts from Step 16 series loose
until start of Step 18

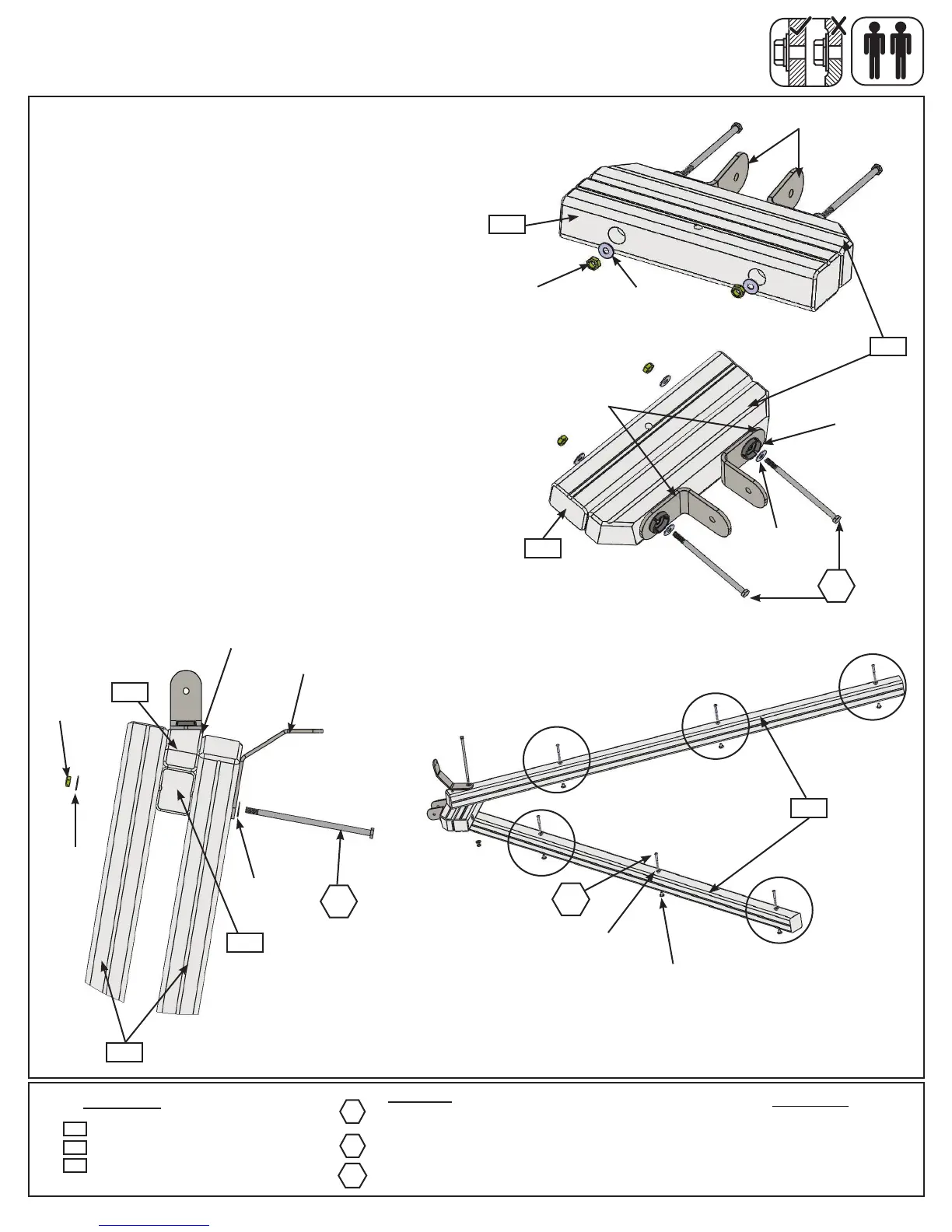

A: Place (160) SW Block Angle on top of (161)
Block SW and attach 2 Heavy L-Brackets on top of
(160) SW Block Angle feeding 2 (G17) 3/8 x 6” Hex
Bolts (with 2 at washers, plastic formed washer and
lock nut) through both boards as shown in g. 16.1
and 16.2.
B: Attach 3 (WB7) 5/16 x 3” Wafer Bolts (with at
washer and t-nut) to all three holes in each (162)
SW Post as shown in g. 16.3. IMPORTANT!
MAKE SURE ALL 6 BOLTS ARE ATTACHED TO
MINIMIZE CHECKING OF WOOD.
C: Place (160) SW Block Angle and (161) Block
SW assembly in between 2 (162) SW Post (Heavy
L-Brackets towards the outside). Place 1 Heavy
C-Bracket on the top (162) SW Post and attach with
(G26) 3/8 x 9-1/4” Hex Bolt (with 2 at washers and
1 lock nut), as shown in g. 16.4
2 x 3/8 x 6” Hex Bolt
(3/8”atwasherx2,plasticformedwasher&3/8”locknut)
1 x 3/8 x 9-1/4” Hex Bolt
(3/8”atwasherx2&3/8”locknut)
6 x 5/16 x 3” Wafer Bolt
 (5/16”atwasher&5/16”t-nut)
WB7
G17
Hardware
Wood Parts
G26
Other Parts
2 x Heavy L-Bracket
1 x Heavy C-Bracket
Fig. 16.4
Fig. 16.1
3/8” Flat
Washer
3/8” Lock
Nut
Fig. 16.2
Fig. 16.3
Heavy
L-Bracket
3/8” Flat
Washer
5/16” T-Nut
Plastic
Formed
Washer
3/8” Flat
Washer
3/8”
Lock
Nut
Heavy L-Bracket
Bottom View
Top View
5/16” Flat
Washer
162
Heavy C-Bracket
161
x 6
G26
3/8” Flat
Washer
162
Notice Angle
Orientation
160
161
161
160
WB7
G17
