Cedar Summit F25720 - Attach Large Roof Assembly

A: With 2 people on the ground and at least 1 person in the fort, lift the Large Roof Assembly up and over the
Back side of the fort. Guide the Roof Assembly onto the fort so all four (350) Roof Supports sit ush to the front
and outside edges of (400) Swing Top and the (440) Mid Top. The Gable Dormer Assembly is at the Front. (g.
45.1 and 45.2)
B: Attach (350) Roof Supports to (400) Swing Top and (440) Mid Top with 1 (S3) #8 x 2-1/2” Wood Screw per
support. (g. 45.1 and 45.2)
Step 45: Attach Large Roof Assembly
Hardware
4 x #8 x 2-1/2” Wood Screw
S3
Flush
S3
S3
S3
350
350
440
440
400

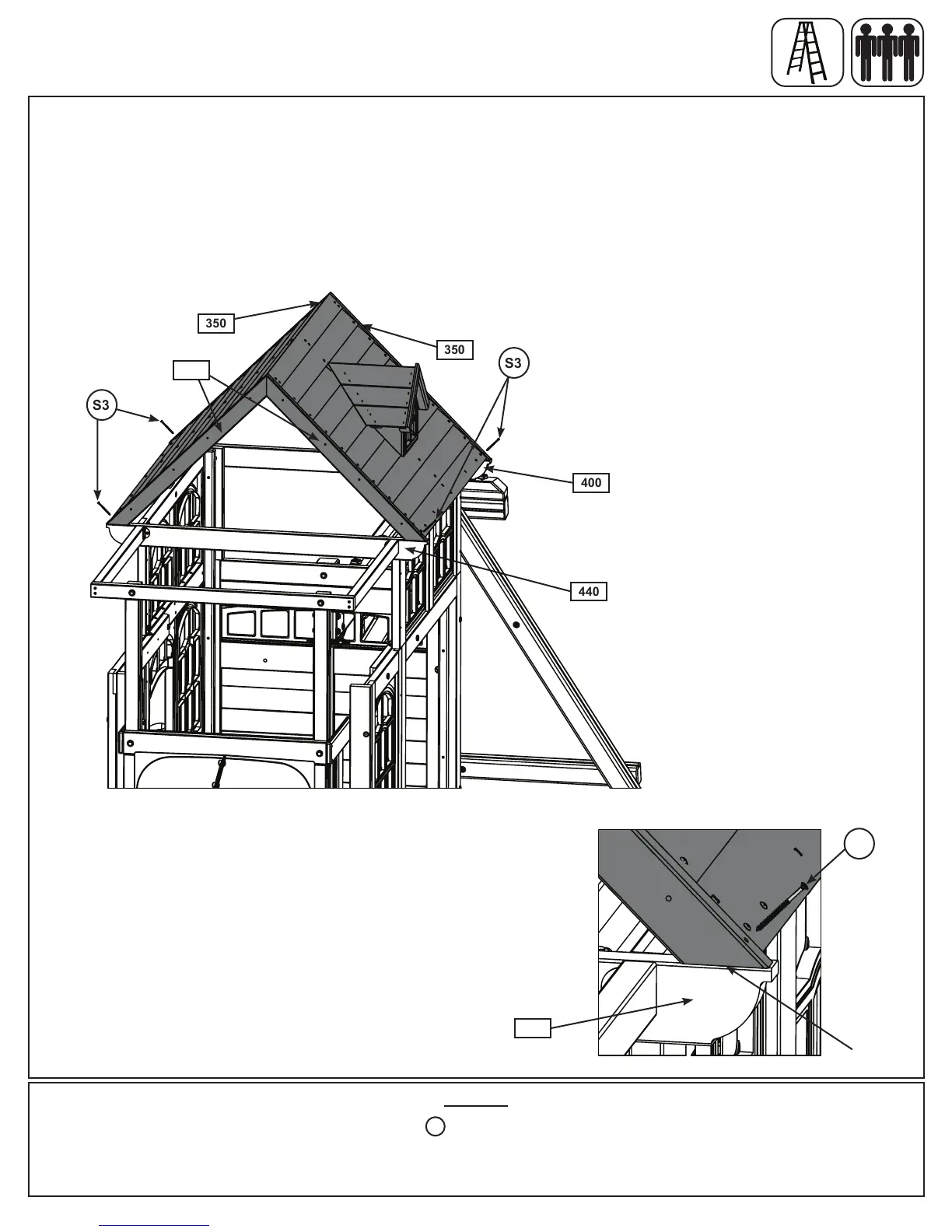

Fig. 45.1
Fig. 45.2
350
