Cedar Summit F25720 - Gable Dormer Assembly

8 x #7 x 5/8” Pan Screws
Step 38: Gable Dormer Assembly
Part 1
Hardware
S37
380
381

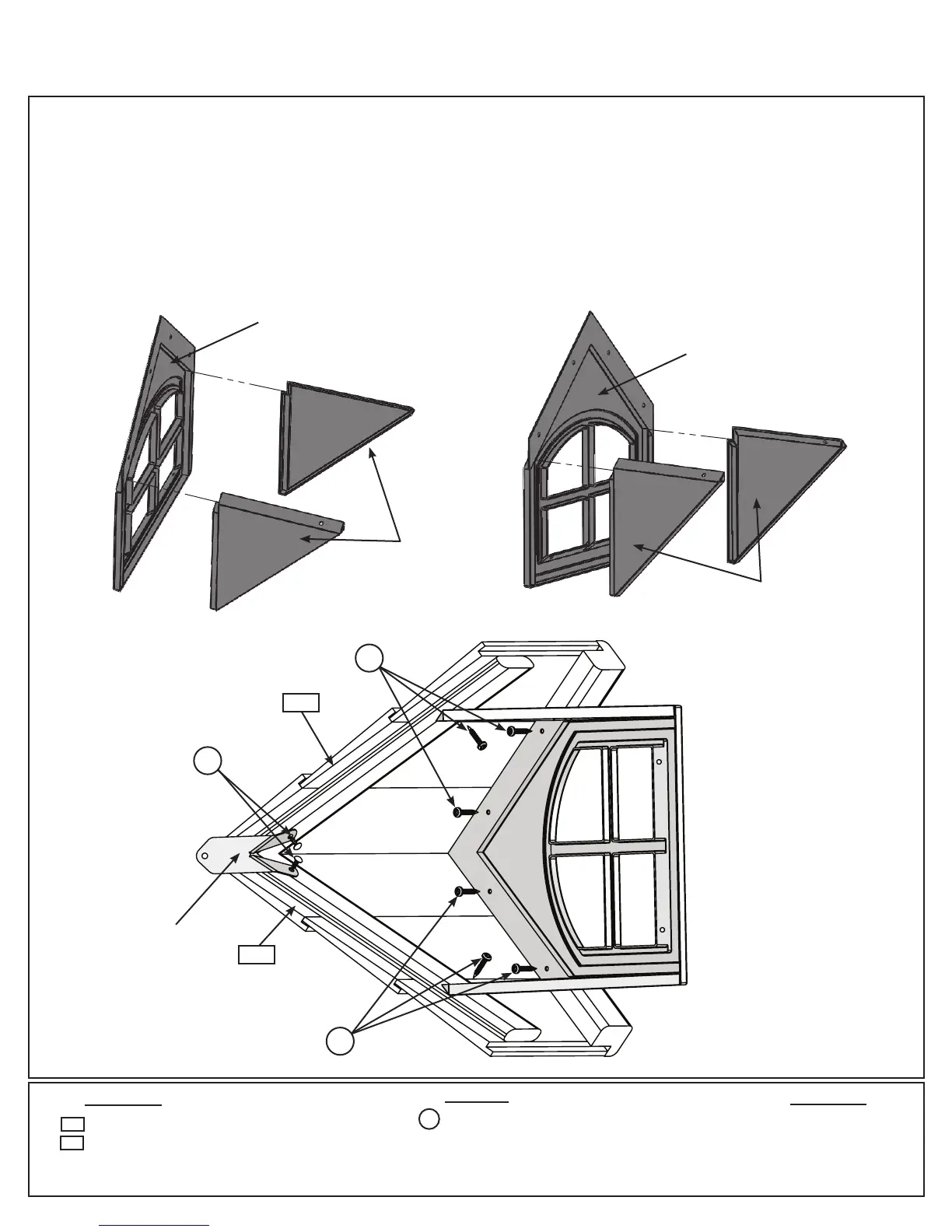

A: To assemble the Dormer Assembly insert the 2 Dormer Sides into the Dormer Front. (Fig. 38.1 and 38.2)
B: Attach (380) Window Dormer Roof Right and (381) Window Dormer Roof Left together with the Window
Dormer Bracket using 2 (S37) #7 x 5/8” Pan Screws as shown in g.38.3.
C: Attach the Dormer Sides and Front to the Right and Left Window Dormer Roof with 6 (S37) #7 x 5/8” Pan
Screws. (Fig. 38.3)
S37
Dormer Front
Dormer Front
Dormer Sides
Dormer Sides
Dormer Bracket
S37
S37
Fig. 38.1
Fig. 38.3
Fig. 38.2
Other Parts
1 x Window Dormer
1x - Dormer Bracket
1 x Window Dormer Roof Right
1 x Window Dormer Roof Left
Wood Parts
380
381
