A: Attach 1 (220) Crowsnest Bottom Side ush to the inside edge of the panel posts on (040) Slide End
Panel and tight to the top of the oor support on (040) Slide End Panel using 3 (S11) #8 x 2” Wood Screws

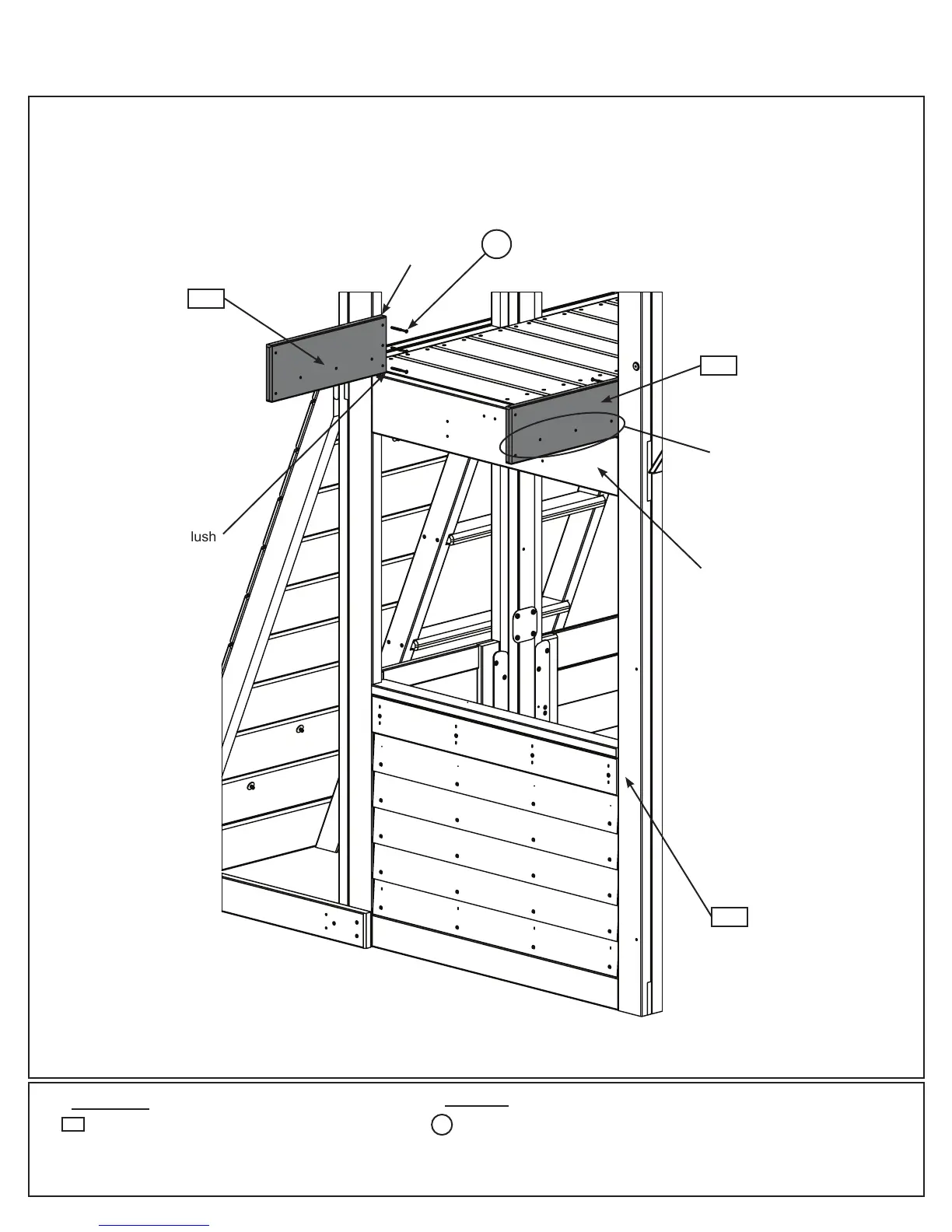

per side. Notice pilot holes towards bottom of boards. (g. 22.1)
Step 22: Crowsnest Assembly
Part 1
Flush
Fig. 22.1
Notice holes
at bottom of
boards
2 x Crowsnest Bottom Side 3/4 x 5-1/4 x 14-3/4”
220
Wood Parts
6 x #8 x 2” Wood Screw
S11
Hardware
S11
Flush
Floor Support
x 3 per board
220
220
040
