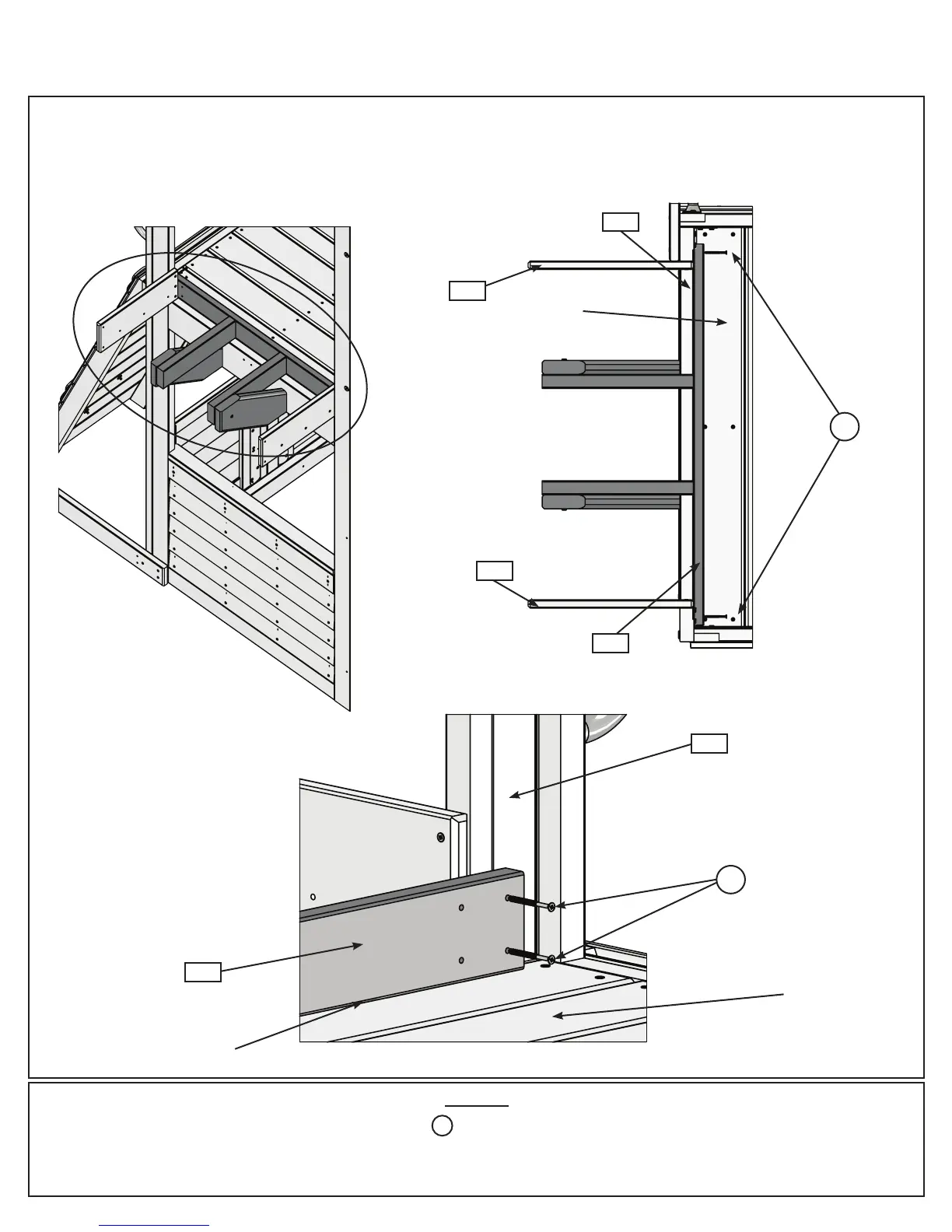

Step 22: Crowsnest Assembly
Part 2
4 x #8 x 2” Wood Screw
S11
Hardware
B: Place the Lower Crowsnest Assembly from Step 20 centred in the opening of (040) Slide End Panel, in
between (220) Crowsnest Bottom Sides, tight to the top of the oor boards then attach with 2 (S11) #8 x 2” Wood
Screws per side. (g. 22.2, 22.3 and 22.4)
Fig. 22.2
Fig. 22.3
Top View
Fig. 22.4
Inside View
040
202
x 4
S11
Floor
Boards
040
220
220
x 2 per
side
S11
Floor
Boards
202
Tight
