Cedar Summit F25720 - Lower Crowsnest Assembly

Step 20: Lower Crowsnest Assembly
Part 1

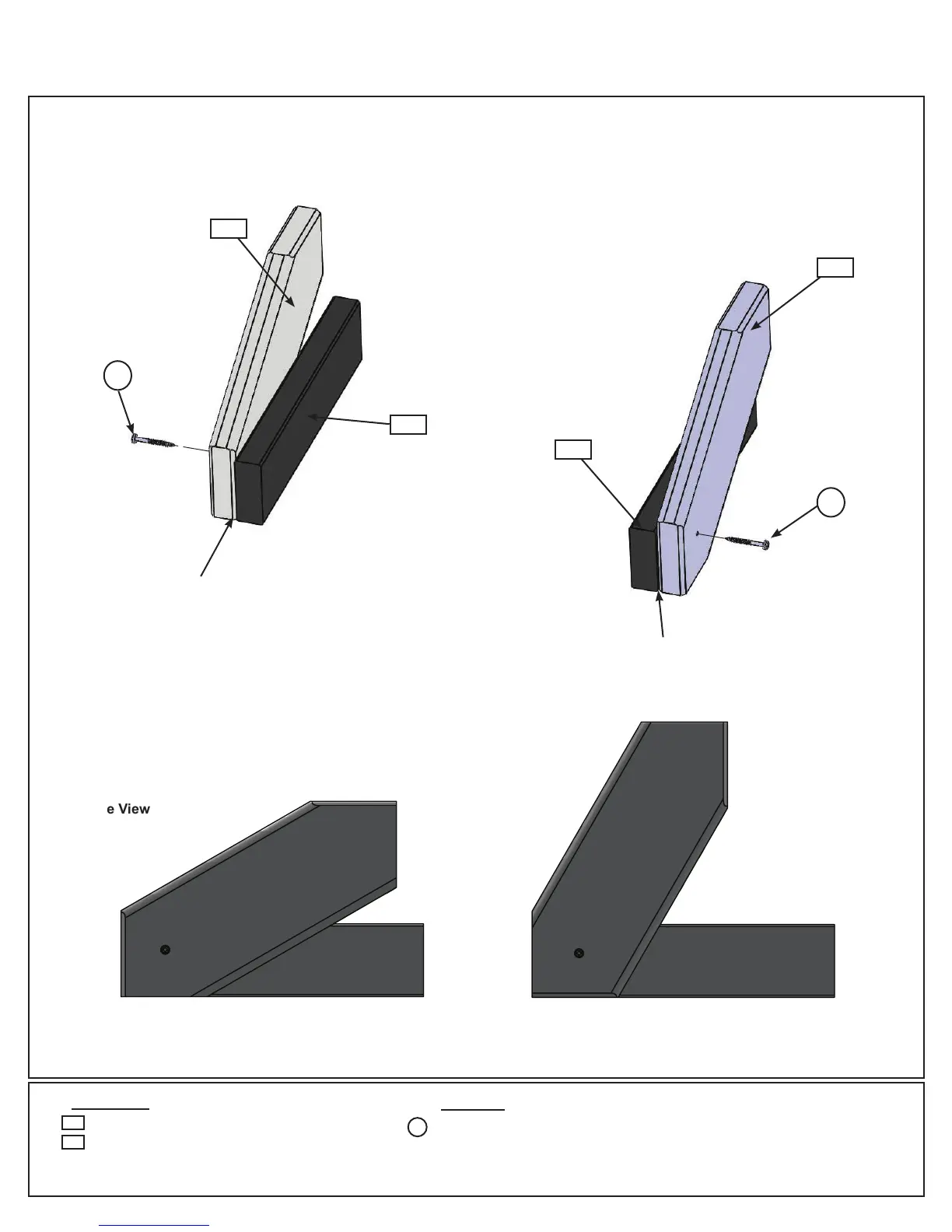

A: Attach 1 (200) Crowsnest Gusset to 1 (201) Crowsnest Joist so the bottoms and ends are ush with 1 (S7)
#12 x 2” Pan Screw. Repeat to make a second set with the (201) Crowsnest Joist on the opposite side from the
rst. (g. 20.1, 20.2 and 20.3)
2 x Crowsnest Gusset 2 x 6 x 15”
2 x Crowsnest Joist 2 x 4 x 13-1/2”
200
Wood Parts
201
Hardware
2 x #12 x 2” Pan Screw
S7
200
201
201
S7
S7
200
Fig. 20.1
Fig. 20.2
Fig. 20.3
Side View
CORRECT WRONG
Flush
Flush
WRONG
CORRECT
WRONG
CORRECT
