Cedar Summit F25720 - Swing Wall Assembly

1 x SW Wall Panel 1-1/4 x 37 x 92”
1 x Panel Front Wall 1-1/4 x 43 x 92”
1 x Wall Panel Back 1-1/4 x 43 x 92”
Wood Parts
050

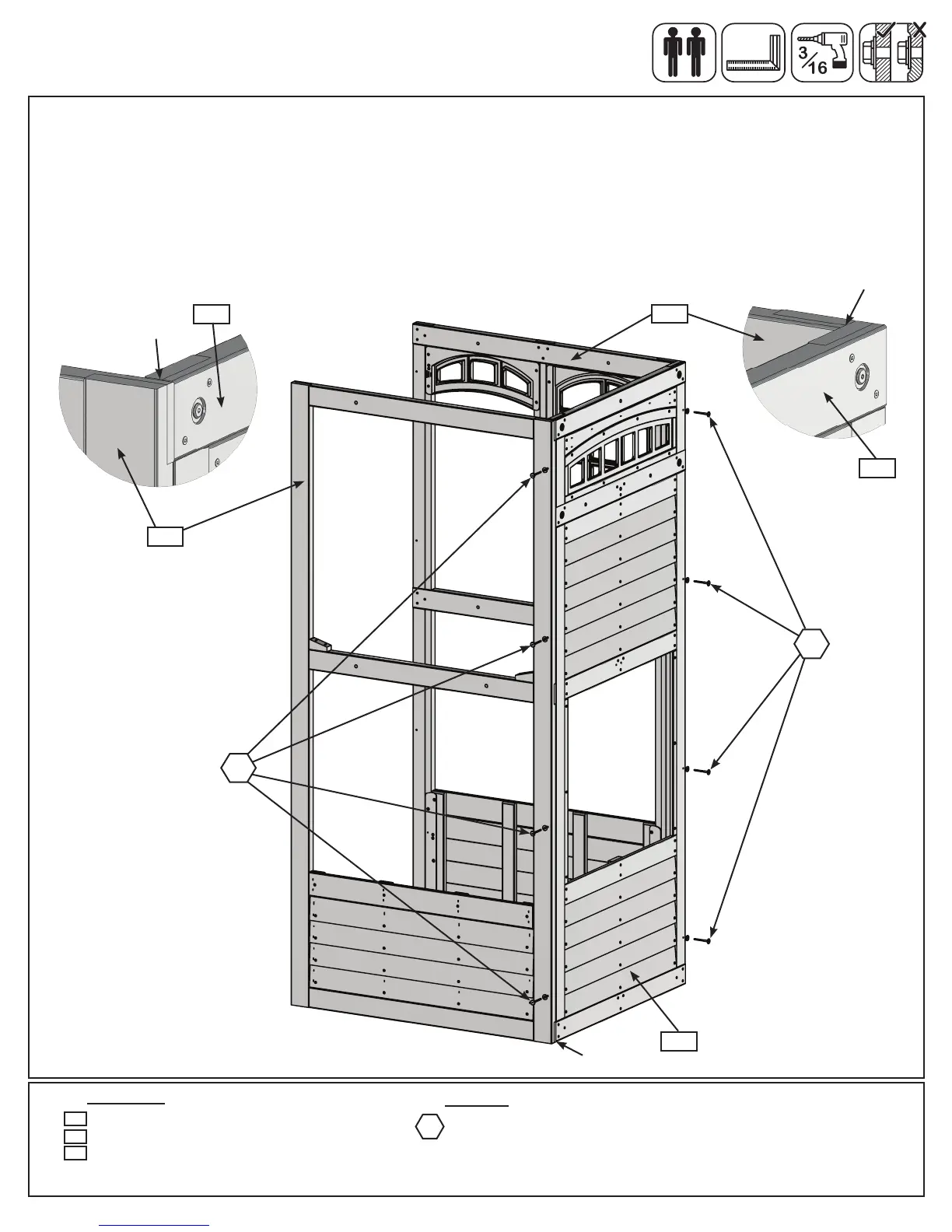

Step 5: Swing Wall Assembly
A: Place (051) Panel Front Wall against the left side of (050) SW Wall Panel noticing panel orientation. The tops
and bottoms of the panels should be ush and panels square. Pre-drill with a 3/16” drill bit, then fasten (051)
Panel Front Wall to (050) SW Wall Panel with 4 (WL5) 1/4 x 2-1/2” Wafer Lags. (g. 5.1 and 5.2)
B: Place (052) Wall Panel Back against the right side of (050) SW Wall Panel noticing panel orientation. The
tops and bottoms of the panels should be ush and panels square. Pre-drill with a 3/16” drill bit, then fasten
(050) SW Wall Panel to (052) Wall Panel Back with 4 (WL5) 1/4 x 2-1/2” Wafer Lags. (g. 5.1 and 5.3)
Fig. 5.1
Hardware
8 x 1/4 x 2-1/2” Wafer Lag
WL5
051
052
A
B
A
B
A
B
Notice(051)FrontWall
Paneloverlaps(050)
SW Wall Panel
051
052
Fig. 5.2
Flush
050
WL5
050
WL5
050
Notice(050)SWWall
Paneloverlaps(052)
Back Wall Panel
Flush
Fig. 5.3
Flush
