Cedar Summit F25720 - Upper Crowsnest Assembly

Step 21: Upper Crowsnest Assembly
A: Loosely attach (210) Crowsnest Front to each (211) Upright Crowsnest using 2 (WB9) 5/16 x 2-1/8” Wafer
Bolts (with at washer and t-nut). The distance between (211) Upright Crownest’s must be 25-1/2” (g. 21.1)
B: Double check the dimensions then tighten the bolts. It is important these dimensions are met so there are no
issues in future steps. (g. 21.1)
1 x Crowsnest Front 2 x 4 x 29-1/2”
2 x Upright Crowsnest 1 x 2 x 34-1/8”
210
Wood Parts
211
2 x 5/16 x 2-1/8” Wafer Bolt
 (5/16”atwasher,5/16”t-nut)
Hardware
5/16”
T-Nut
5/16” Flat
Washer
WB9
WB9

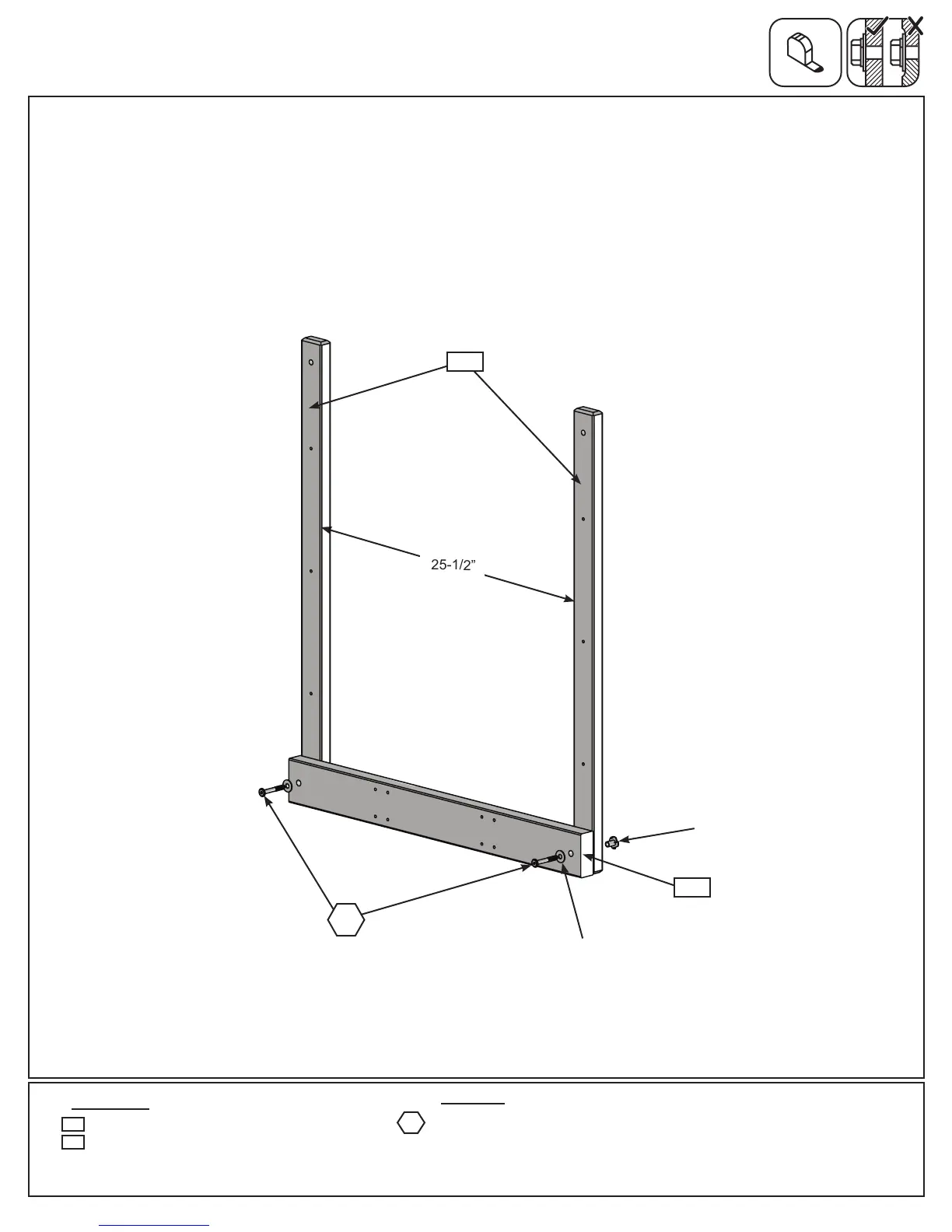

Fig. 21.1
210
25-1/2”
211
