Hardware
1 x Table Support 2 x 2 x 39-5/8”
1 x Table Top 5/4 x 5 x 39-5/8”
Wood Parts
130

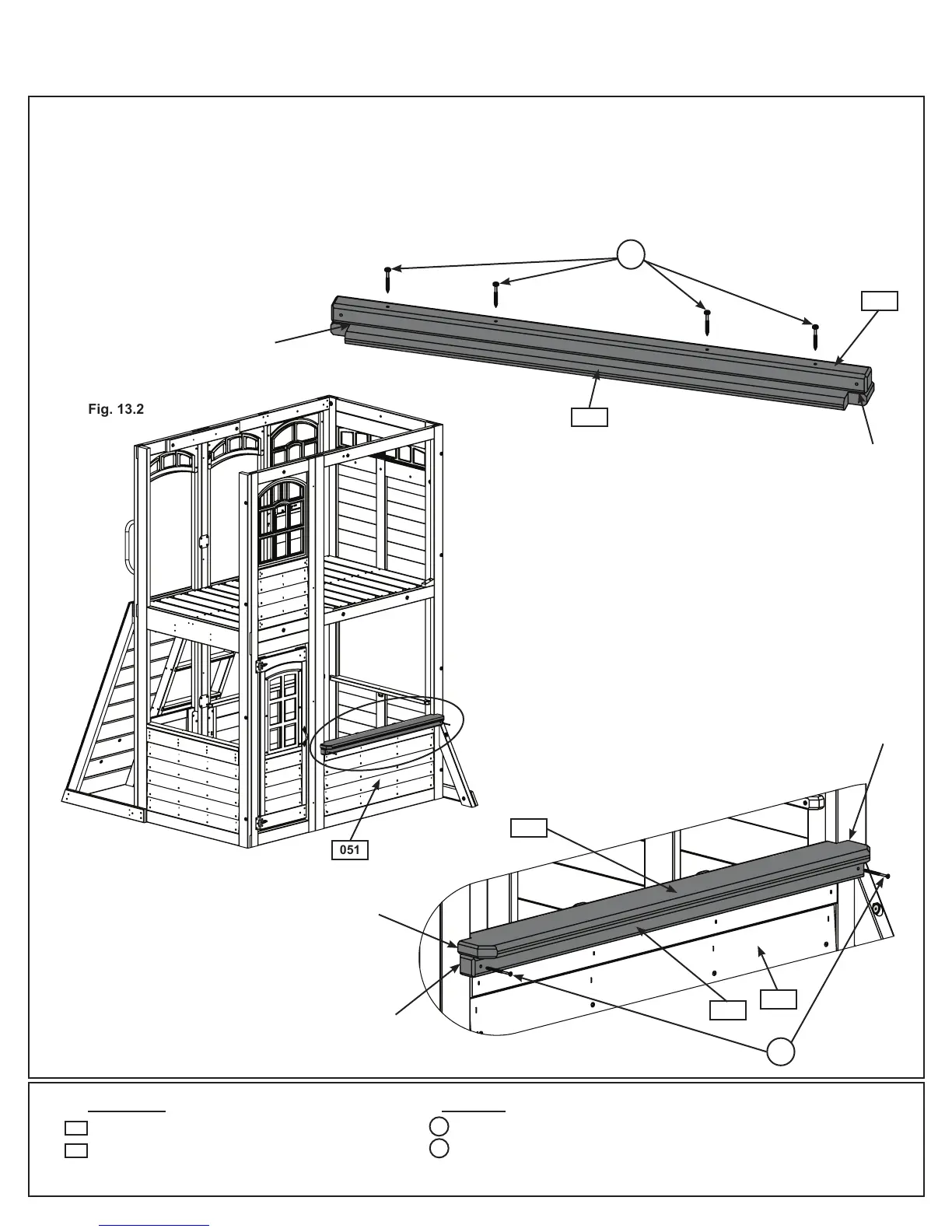

Step 13: Front Wall Assembly
Part 1
A: Place (130) Table Support ush to the notched out ends of (131) Table Top and attach with 4 (S7) #12 x 2”
Pan Screws as shown in g. 13.1.
B: Place Table Top Assembly in the center of opening and tight to (051) Front Wall Panel and attach (130) Table
Support to (051) Front Wall Panel with 2 (S3) #8 x 2-1/2” Wood Screws. (g. 13.2 and 13.3)
Fig. 13.1
Fig. 13.2
131
051
4 x #12 x 2” Pan Screw
2 x #8 x 2-1/2” Wood Screw
S3
S7
S7
131
130
Flush
Flush
Tight
Tight
131
Tight
Fig. 13.3
Outside View
130
051
S3
