Step 12: Door Panel Assembly
Part 4

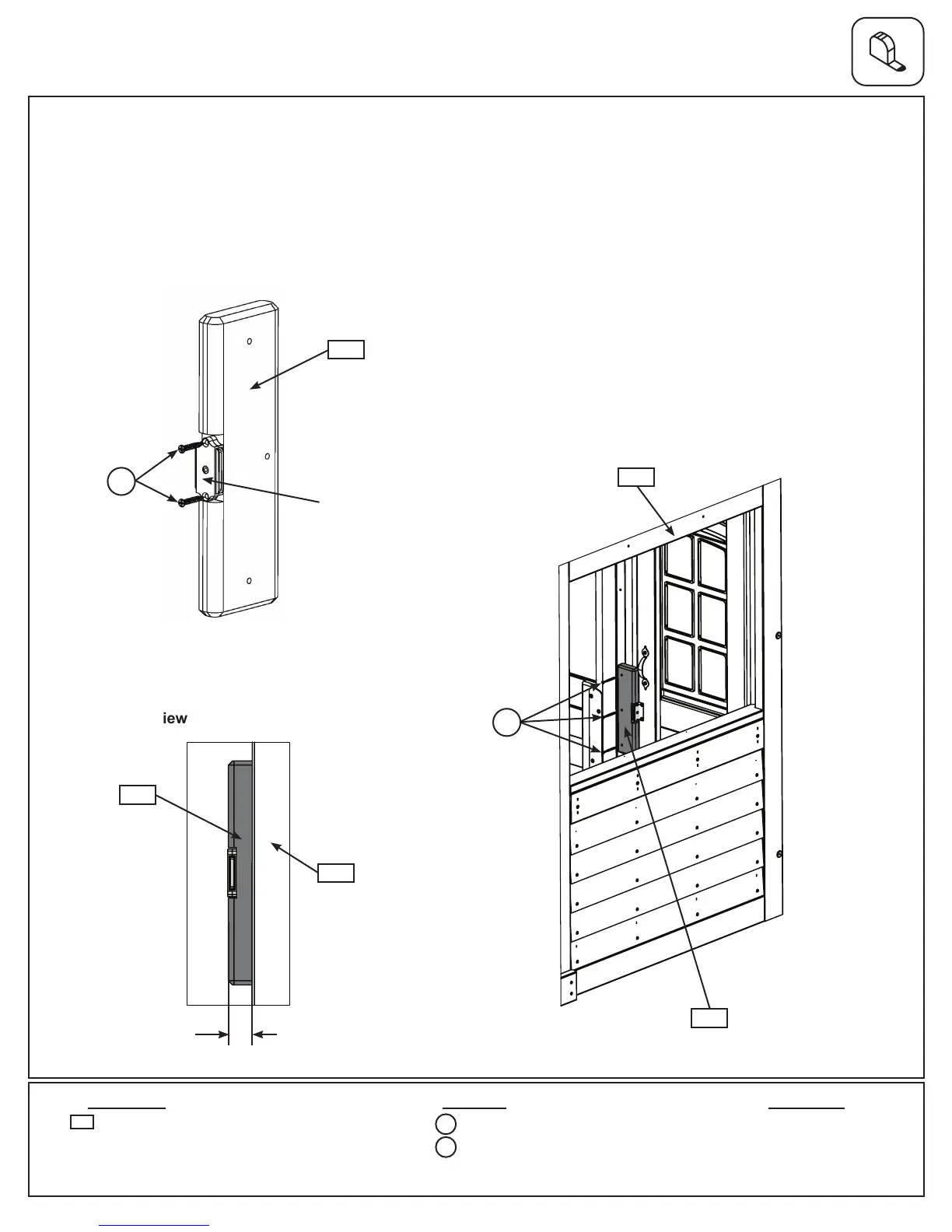

Fig. 12.8
Hardware
Wood Parts
F: In the notched out opening of (121) Door Stop attach the Magnetic Catch using 2 (S38) #7 x 1-1/8” Pan
Screws. (g. 12.7) Important: Use a hand held screw driver and DO NOT over tighten.
G: On the inside of the assembly, attach (121) Door Stop to (042) Narrow Front Panel with 3 (S11) #8 x 2” Wood
Screws, making sure (121) Door Stop overhangs (042) Narrow Front Panel by 1-1/4” and is in position to receive
the Catch Plate. (g. 12.8 and 12.9).
Fig. 12.9
Fig. 12.7
1 x Door Stop 5/4 x 3 x 10”
121
2 x #7 x 1-1/8” Pan Screw
3 x #8 x 2” Wood Screw
S38
S11
Other Parts
1 x Magnetic Catch
Inside View
Side View
S38
121
Magnetic Catch
042
121
1-1/4”
121
S11
042
