Cedar Summit F25720 - Attach Clock Assembly

Outside View
Inside View

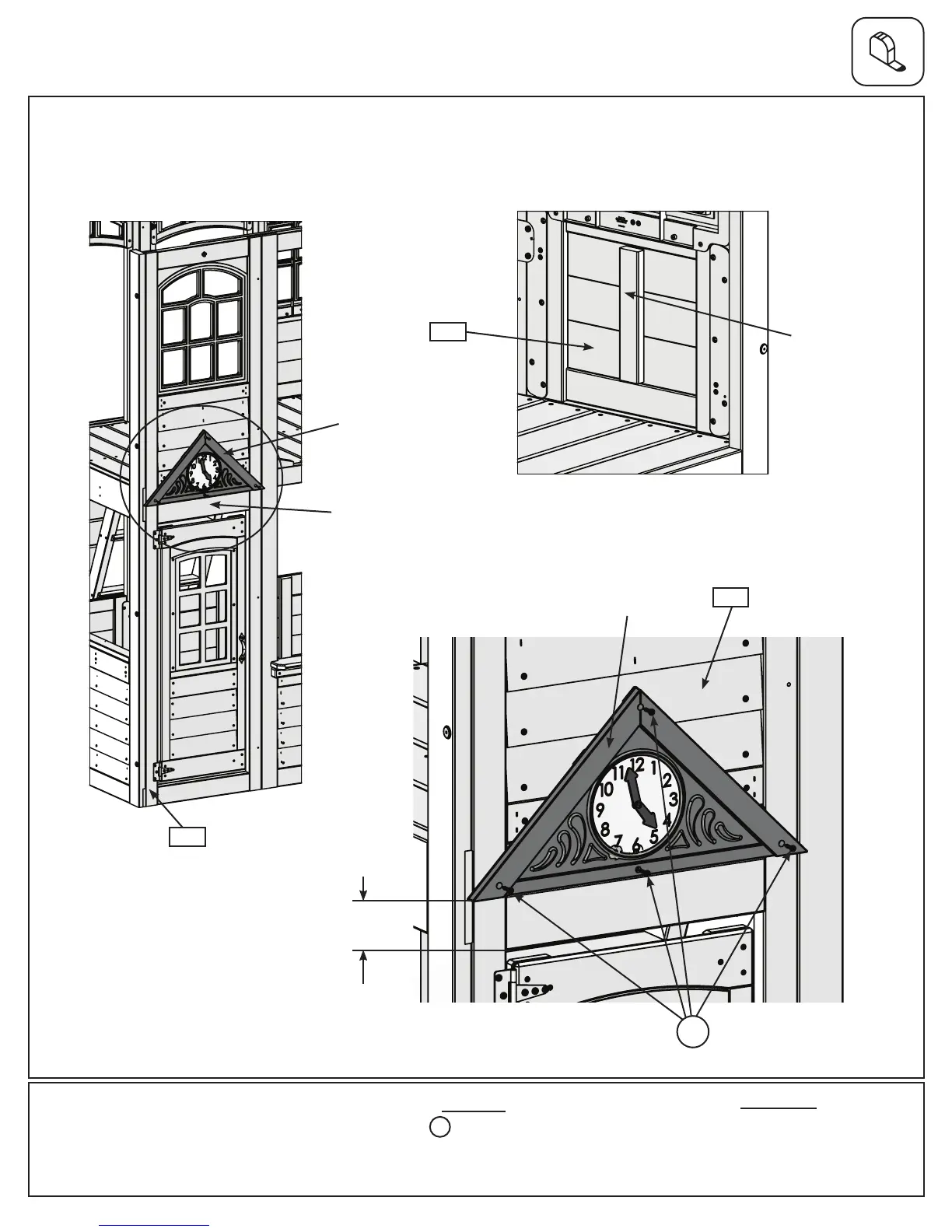

D: On the front of the assembly measure 3-1/4” up from the bottom of the centre board in (041) Narrow Front
Panel then attach the Gable Clock Assembly with 4 (S10) #8 x 1” Pan Screws. Make sure the top screw
connects to the block at the back of (041) Narrow Front Panel. (g. 14.1, 14.2 and 14.3)
Hardware
4 x #8 x 1” Pan Screw
S10
Other Parts
1 x Gable Clock Assembly
Step 14: Attach Clock Assembly
Fig. 14.3
Fig. 14.2
Fig. 14.1
3-1/4”
041
041
041
S10
Gable Clock
Assembly
Gable Clock
Assembly
Top screw must
connect to this
board.
Centre
Board
