Cedar Summit F25720 - Final Swing Post Assembly

Step 18: Final Swing Post Assembly

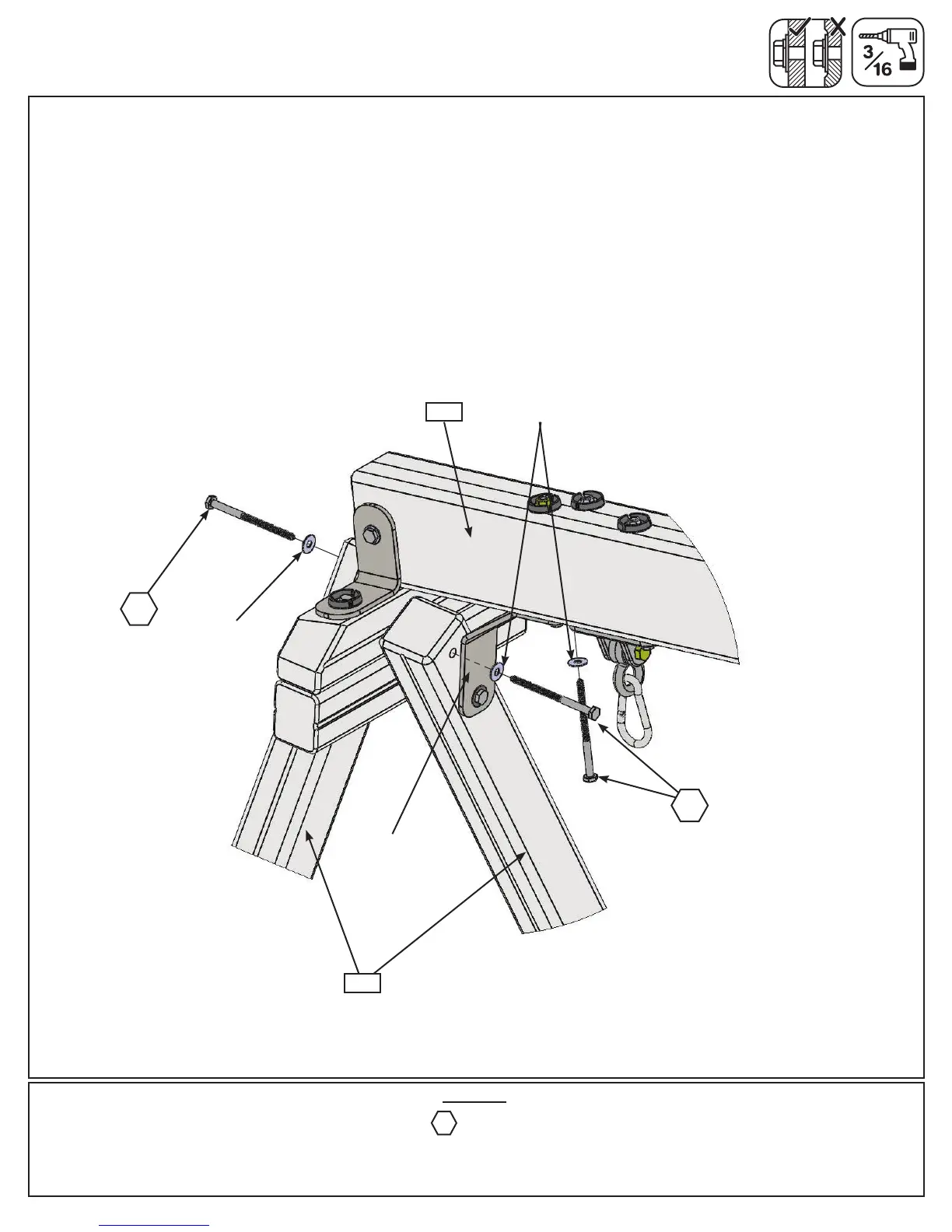

Fig. 18.1
5/16” Flat
Washer
150
Hardware
Pre-drill all holes using a 3/16” drill bit before installing the lag screws.
Note: Tighten all bolts from Step 16 series before installing lag screws.
A: Attach 1 (LS9) 5/16 x 4-3/4” Lag Screw (with at washer) into each (162) SW Post, as shown in g. 18.1.
B: Attach 1 (LS9) 5/16 x 4-3/4” Lag Screw (with at washer) into remaining hole of the Heavy C-Bracket into
(150) Engineered SW Beam. (g. 18.1)
3 x 5/16 x 4-3/4” Lag Screw
 (5/16”atwasher)
5/16” Flat
Washer
LS9
Heavy C-Bracket
LS9
162
LS9
