Cedar Summit F25720 - Attach Diagonals

1x 5/16x2-1/8”WaferBolt(5/16”atwasher,5/16”t-nut)
1x 1/4x2-1/2”WaferLag(5/16”atwasher)
1 x #8 x 3” Wood Screw
2 x #8 x 2” Wood Screw
Hardware
Wood Parts
1 x SW Ground 5/4 x 4 x 14-1/4”
1 x Diagonal 1-1/4 x 3 x 22”
090
091
A: Loosely attach (090) SW Ground to (091) Diagonal with 1 (WB9) 5/16 x 2-1/8” Wafer Bolt (with at washer
and t-nut) then place (091) Diagonal tight and ush to the front of (050) SW Wall Panel. (090) SW Ground to be
ush to the bottom of (050) SW Wall Panel. (g. 9.1 and 9.2)
B: Pre-drill pilot hole with a 3/16” drill bit then attach (091) Diagonal to (050) SW Wall Panel with 1 (WL5) 1/4 x
2-1/2” Wafer Lag (with at washer), checking that it remains ush to outside edge. (g. 9.1 and 9.2)
C: Making sure bottom of (090) SW Ground is ush to bottom of (050) SW Wall Panel then attach with 2 (S11)
#8 x 2” Wood Screws and 1 (S4) #8 x 3” Wood Screw then tighten the bolt. (g. 9.1 and 9.2)

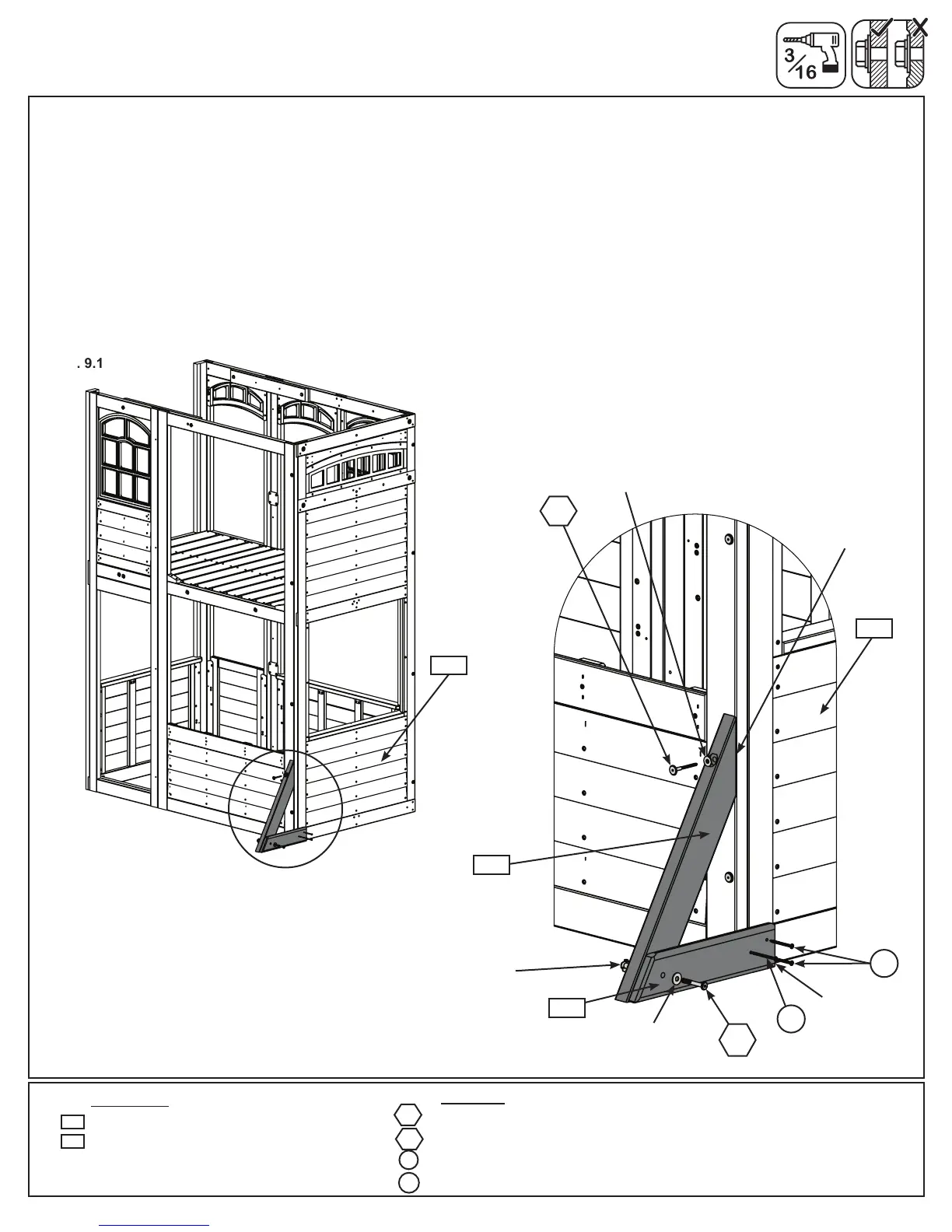

Fig. 9.1
Fig. 9.2
WL5
S11
S4
WB9
050
5/16”
T-Nut
5/16” Flat
Washer
5/16” Flat
Washer
Flush
Flush
S11
S4
WB9
WL5
050
090
091
Step 9: Attach Diagonals
Part 1
