Cedar Summit F25720 - TNR Brace Assembly

Step 32: TNR Brace Assembly
A: Attach (321) TNR Upright to (320) TNR Ground Brace with 1 (H8) 1/4 x 4-1/4” Hex Bolt (with lock
washer, at washer and t-nut) in the top hole. Make sure both boards are square then attach with 1 (S11)
#8 x 2” Wood Screw. (g. 32.1)
1 x #8 x 2” Wood Screw
1x 1/4x4-1/4”HexBolt(1/4”lockwasher,1/4”atwasher,1/4”t-nut)
Hardware
Wood Parts
1 x TNR Ground Brace 1-1/4 x 3 x 28-5/16”
1 x TNR Upright 1-1/4 x 3 x 20-1/4”
320
321
1/4”
T-Nut
1/4” Flat
Washer
1/4” Lock
Washer
320
H8
S11
S11

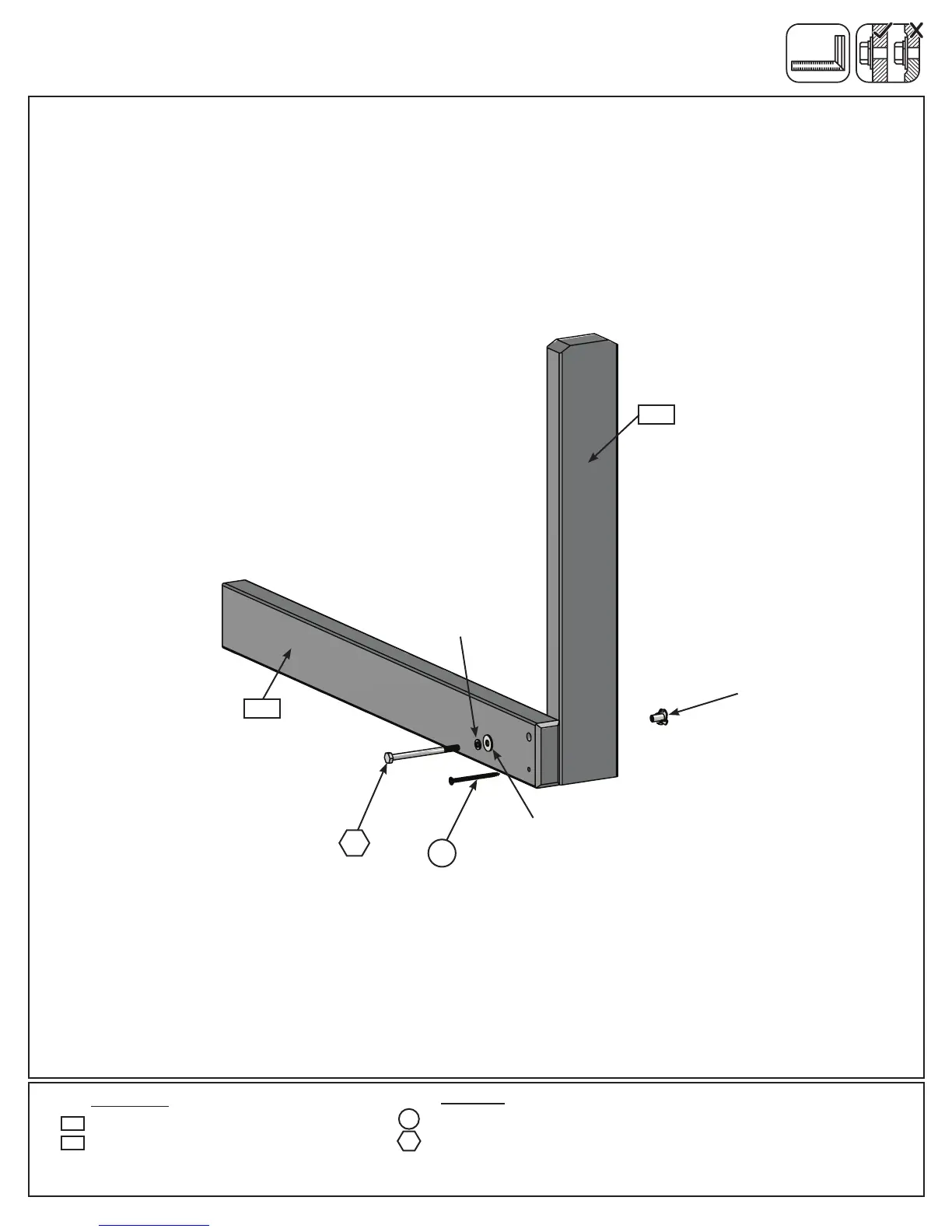

Fig. 32.1
321
H8
