Cedar Summit F25720 - Attach MID Top

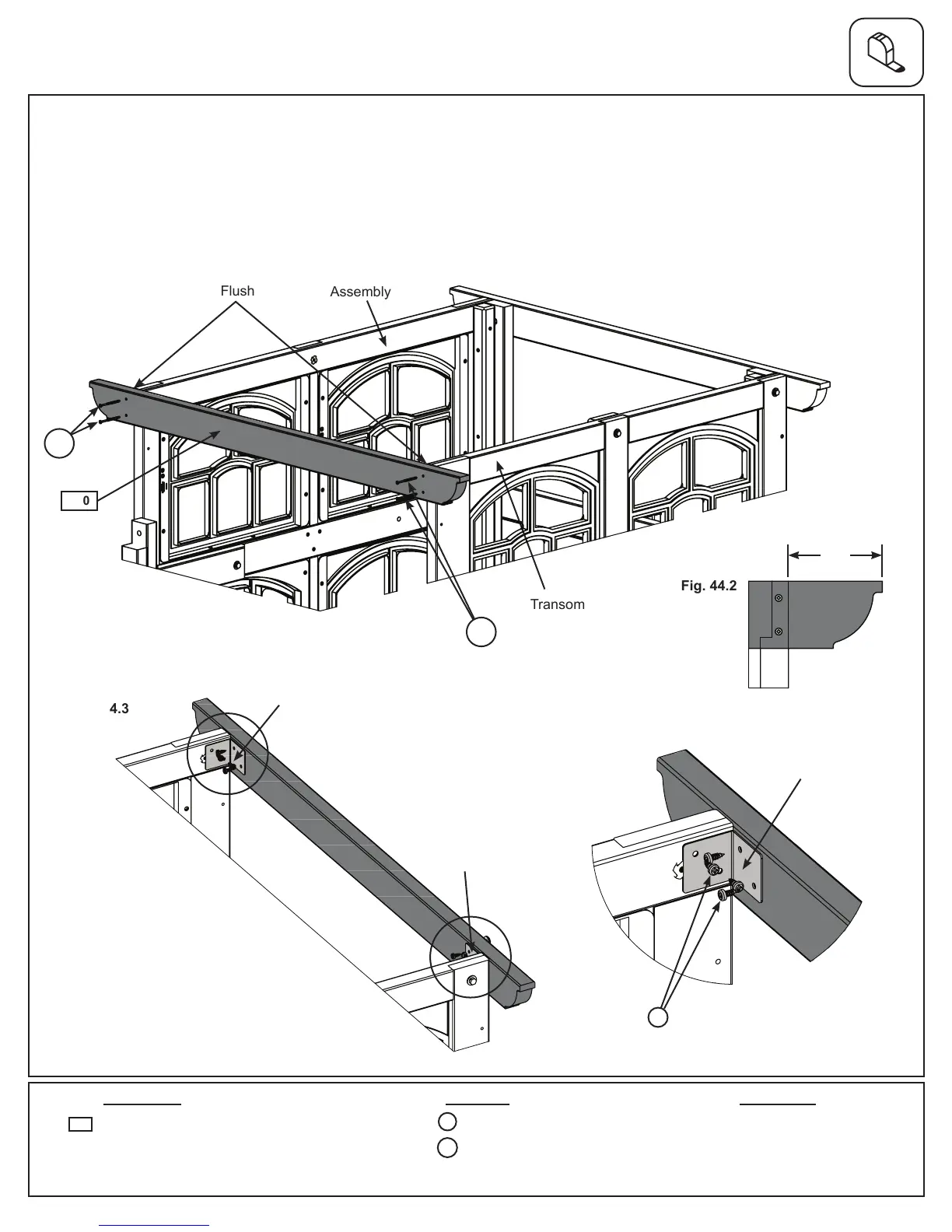

Step 44: Attach Mid Top
Part 1
A: Flush to the top of Transom Assembly and centered in the middle of the opening attach 1 (440) Mid Top using
4 (S4) #8 x 3” Wood Screws ensuring that there is a 4” overhang on either side. Screws will not be centered in
panel. (g. 44.1 and 44.2)
B: From inside the assembly, attach 1 Corner Panel Bracket per corner using 4 (S8) #12 x ¾” Pan Screws per
bracket. (g. 44.3 and 44.4)
Fig. 44.1
Fig. 44.2
Fig. 44.4
Fig. 44.3
Wood Parts Other Parts
1 x Mid Top 1-1/4 x 3 x 46-3/4” 2 x Corner Panel Bracket
Hardware
4 x #8 x 3” Wood Screw
8 x #12 x 3/4” Pan Screw
440
S4
S8
S8
Transom
Assembly
Transom
Assembly
Flush
440
- centered on opening
- screws are not cen tred in panel
- approx. 10.5cm from panel to end
- centered on opening
- screws are not cen tred in panel
- approx. 10.5cm from panel to end
S4
S4
4”
A
A
x 4 per bracket
Corner Panel
Brackets
Corner Panel
Brackets
Corner Panel
Brackets
