Cedar Summit F25720 - Assemble and Attach BBQ Kitchen

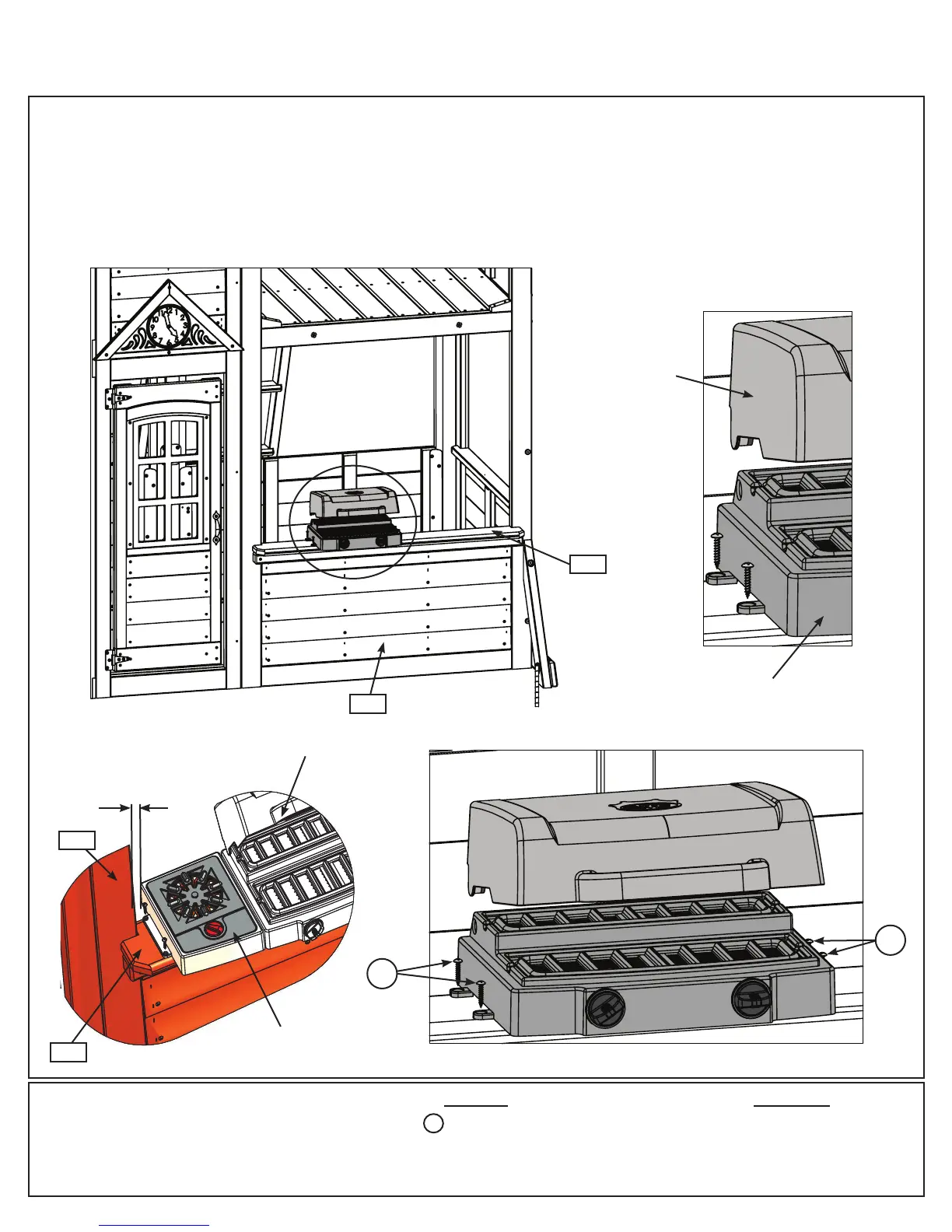

Step 49: Assemble and Attach BBQ Kitchen
Part 1
A: On (051) Front Wall place BBQ Base on (131) Table Top. Use BBQ Cooktop as a guide so there is enough
room for BBQ Cooktop and 1” gap to the edge of the wall to the left of BBQ Base. Attach BBQ Base to (131)
Table Top with 4 (S0) #8 x 7/8” Truss Screws. (g. 49.1, 49.2 and 49.3)
B: Snap BBQ Lid on to the back of BBQ Base. (g. 49.4)
Hardware Other Parts
4 x #8 x 7/8” Truss Screw 1 x BBQ Base
1 x BBQ Lid
S0
A
B
A
B
A
B
Fig. 49.1
Fig. 49.2
Fig. 49.3
Fig. 49.4
051
S0
S0
BBQ
Lid
BBQ Base
1”
131
051
BBQ Base
BBQ Cooktop
131
